Quick Start
WiBox2100E User Guide 20
WLAN SSID: ________________ (case-sensitive)
WEP Enabled Y/N? _______
WEP Key 64 bit or 128 bit? _______
WEP Key: ____________________________
(Entered in HEX format (0-9 A-F) xx-xx-xx-xx-xx-xx-xx-xx-xx-xx-xx-xx-xx)
or
WPA Enabled Y/N: ____________________________
WPA Key Type hex or passphrase? _______
WPA Key: ____________________________
Installing and Configuring the WiBox
Complete the following steps to connect and initially configure the WiBox. Initial
configuration is done using the Setup Mode’s Change Setup menu.

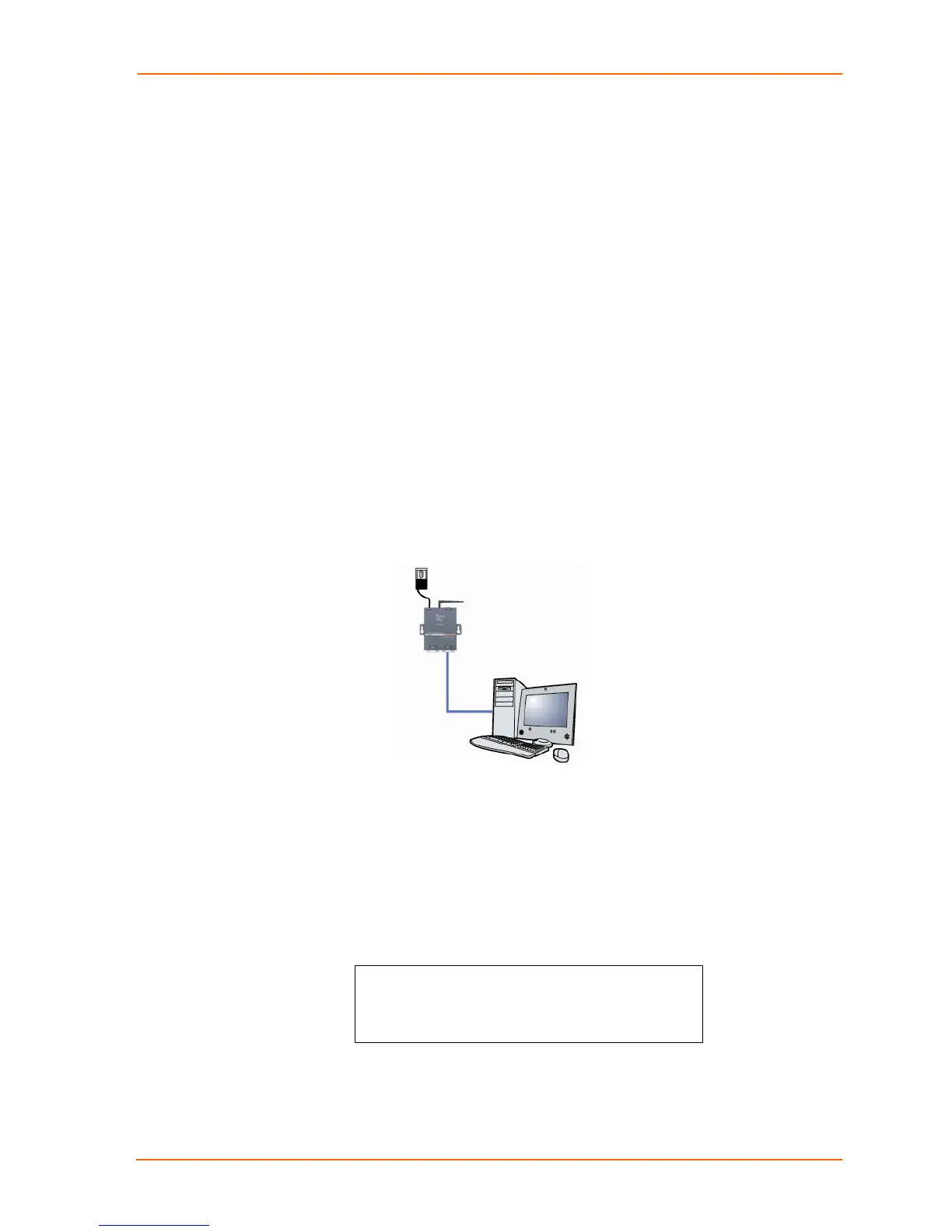

Figure 3-1. WiBox Connected for Configuration
1. Connect one end of the supplied DB9F – DB9F null modem serial cable to the
WiBox’s serial port 1.
2. Connect the other end of the DB9 serial cable to a terminal or a PC’s serial COM
port.
3. On the PC, open a terminal emulation application (e.g. HyperTerminal). The
default serial settings are 9600 baud, 8 bits, not parity, 1 stop bit, and no flow
control (9600, 8, N, 1).
4. Enter Setup Mode by simultaneously connecting the power supply and holding
down the x key. Upon connection, the following information displays:
MAC address 00204A8178A4
Software version V6.1.0.2 (040519)
Press Enter for Setup Mode
5. Press Enter within 5 seconds to display the Change Setup menu.
