EASE1000 User’s Manual
Chapter 2 General Description
2.5.1.2 ML610Q100 or ML620Q000 is connected as target LSI
2.5.1.2.1 Recommended circuitry using RESET_N pin and TEST pin

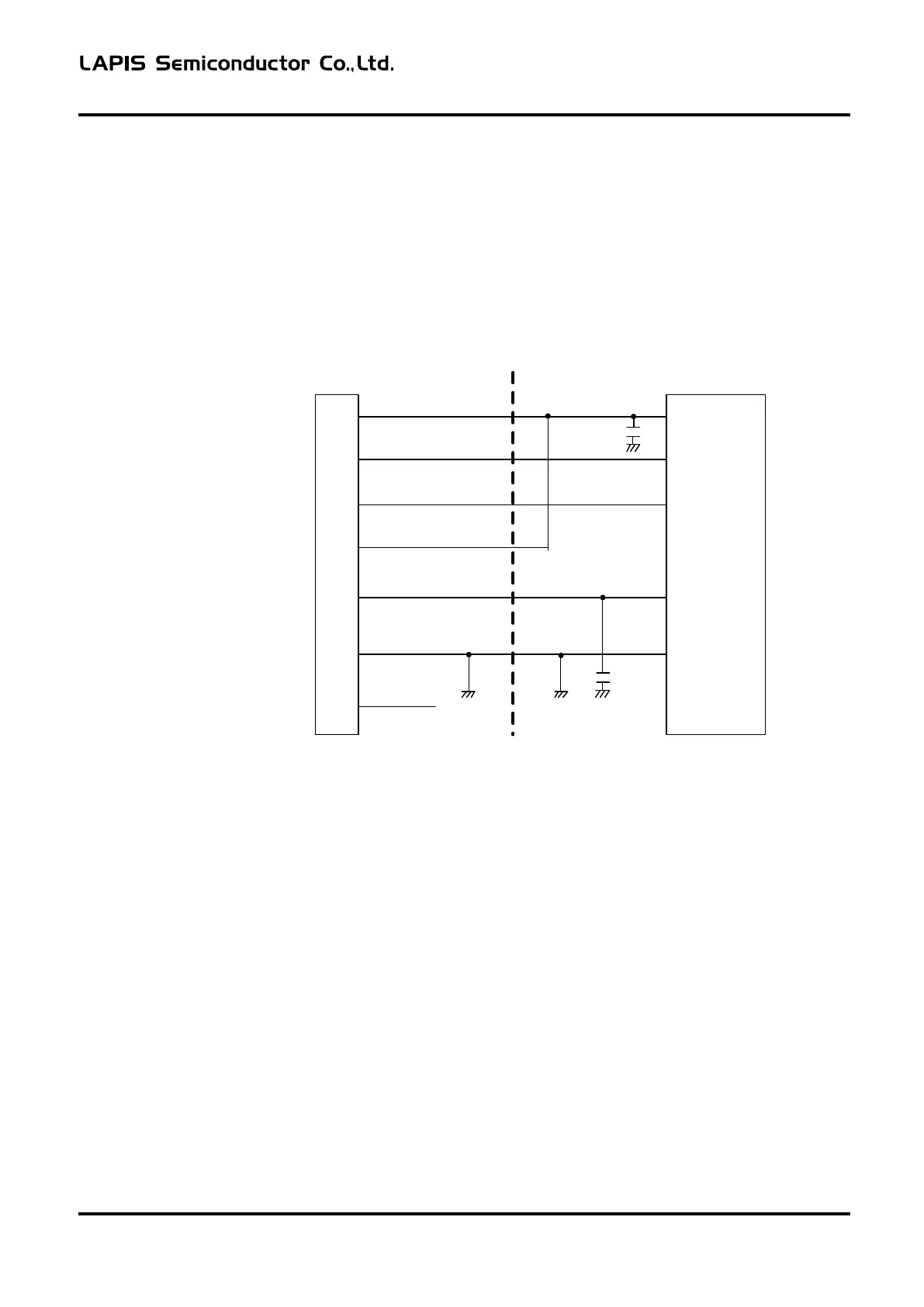

The example of a circuit connected with EASE1000 using RESET_N pin and TEST pin is shown below.
- Do not connect the parts which RESET_N pin is fixed to a High level.
The pull-up resistance is connectable with RESET_N pin.
- Do not connect any parts to TEST pin.
EASE1000
Interface connector
VTref
RST_OUT/SCK
1
5
SDATA
7
3.3VOUT
13
NC
Vss
2,4
,
6,8
,10,
12
3,11,14
~
VDD
RESET_N
TEST
Vss
Target LSI
VDDL
9
VDDL
Figure 2-5
Recommended circuitry using RESET_N pin and TEST pin
FEXTEASE1000-02 7
