Pico rigging manual 2007.doc Page 18 of 28

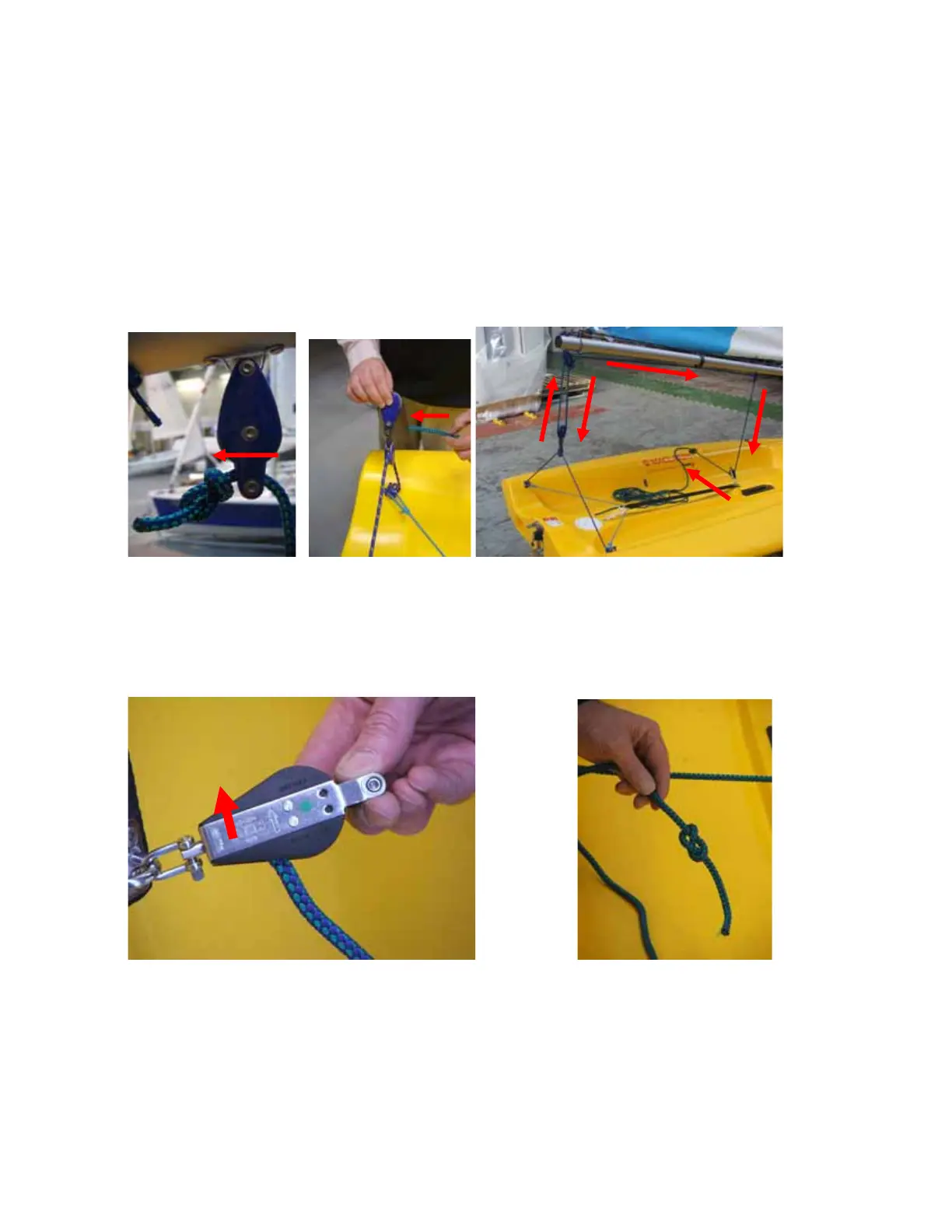

2) Join the large traveller block to the small block on the traveller with the
englefield clips. Take the mainsheet. Starting at the back of the boom, you will
find a block with a Becket at the bottom. Pass the end of the mainsheet through
the back end of the block and tie a figure of eight knot (Photo 1). Then thread the
mainsheet down to the large traveller block and thread bow to stern (Photo 2).
Back up to the boom end block and along to the webbing loop. Pass the
mainsheet through the loop, along to the middle block and down to the ratchet
block in the middle of the boat (Photo 3) Ensure that the rope goes through the
block in the same direction as indicated by the arrow on the side of the block
(Photo 4). Tie a figure of eight knot in the end of the mainsheet (Photo 5).
1
3
4
2
5
