Laser Pico User Manual

Pico rigging manual 2007.doc Page 6 of 28

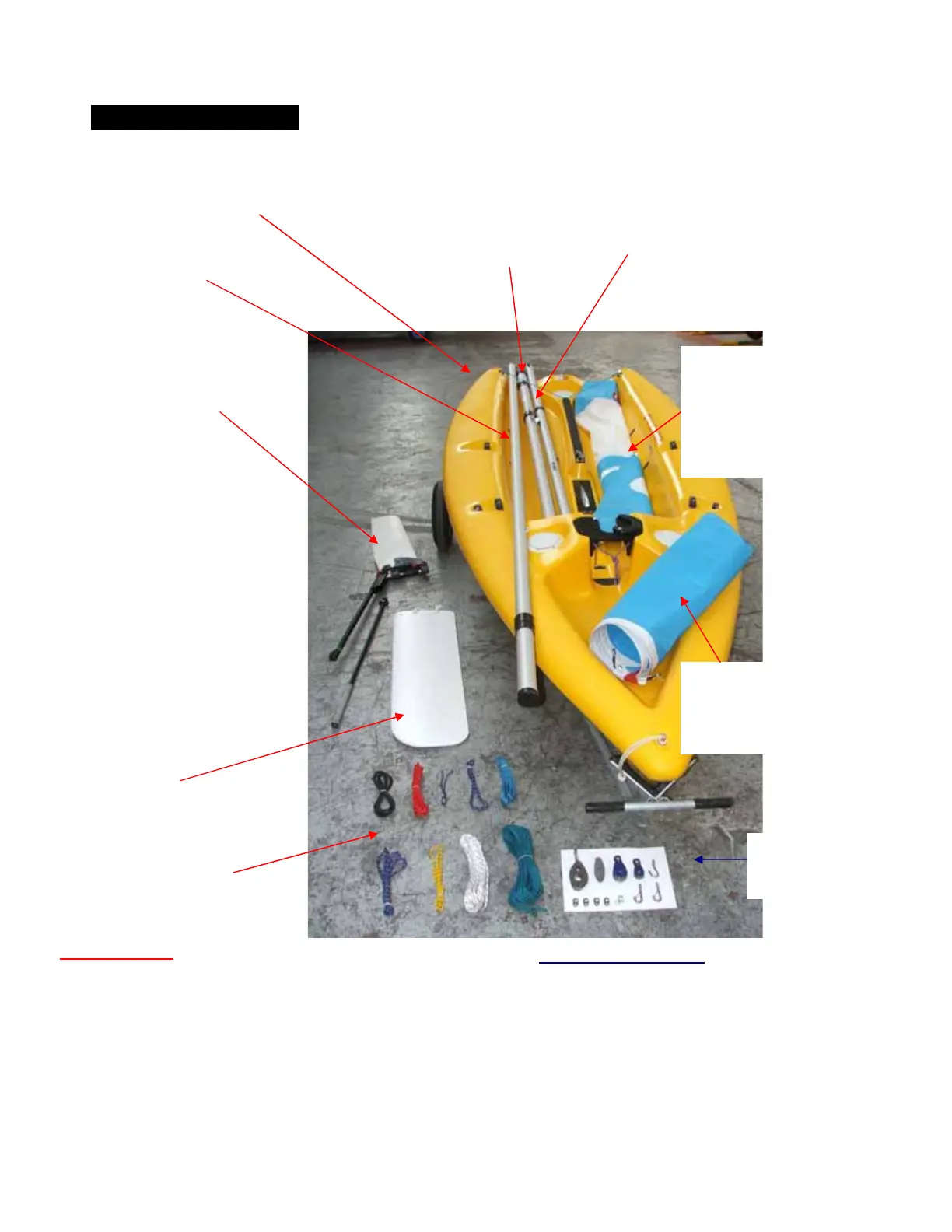

Unpack Pico and check that you have all the components.
40010/40011 Pico hull
1301 Pico upper
mast
1836 Pico Boom
1831 Pico Lower
mast
1840RB Pico mainsail
Blue/White.
1845 Pico mainsail Black
Mylar
1851 Pico rope
pack- Standard
1851 Pico Sport
rope pack
1841RB Pico jib Blue.
1841BW Pico jib
black/white
1820 Pico
Centreboard
1821 Pico Rudder
assembly
1
23
45
6
789
1
6
2
3
5
4
7
8
Pico blocks
and fittings
Pico Rope Pack.
1. Centre board and clew outhaul
shockcord.
2. Vang/kicking strap rope
3. Clew tie down
4. Traveller
5. Jib Halyard
6. Clew outhaul
7. Cunningham
8. Jib sheet
9. Mainsheet.
Pico Blocks and fittings
1. 1938 Kicking strap lower block inc. hook.
X1
2. 1364 Upper kicking strap block. X1
3. 3501P Single mainsheet block inc. clip X1
4. 3502P Traveller block inc. clip
5. D92058 Twisted hook for clew outhaul. X1
6. D40028 Engle field clips X4.
7. 2136 Rigging link X1
8. 1823 Hook Pico for jib tack X1
4.1 Unpack your Pico

Laser Pico Specifications

General

Type	Dinghy
Crew	1-2
Designer	Jo Richards
Length	3.50 m
Hull weight	60 kg
Sail area	5.1 m²
