Laser Pico User Manual

Pico rigging manual 2007.doc Page 20 of 28

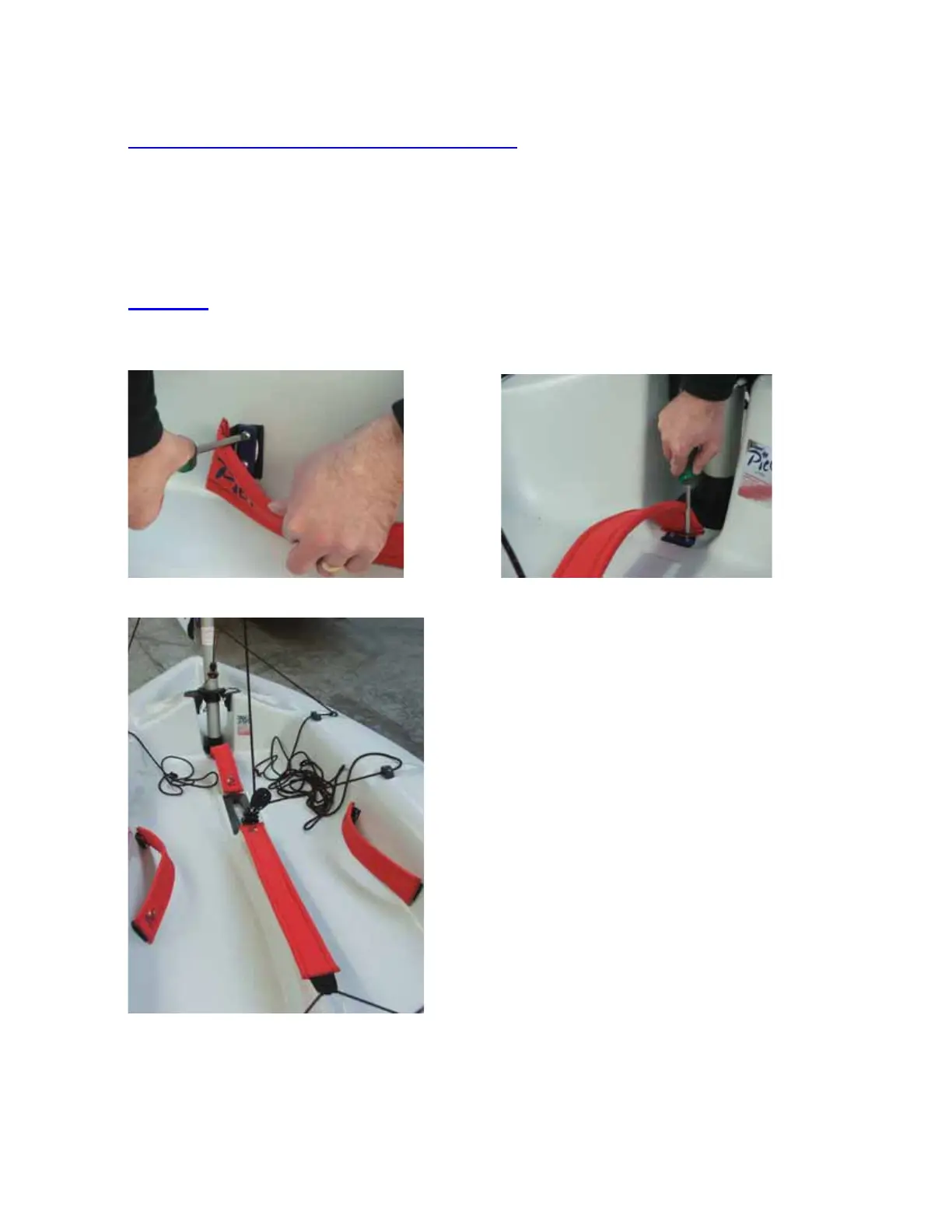

Sport Padded side and front Toe straps.
1) Unscrew plastic toe strap plates on the insides and in front of the centreboard
case.
2) Secure toe straps. Before re-screwing the toe straps apply silicone sealant to
the screw holes. This is to avoid potential leaking.
Warning:
Please take care not to over-tighten the screws. Screws should be
“Finger tight”. Over-tightening can strip the thread in the plastic.

Laser Pico Specifications

General

Type	Dinghy
Crew	1-2
Designer	Jo Richards
Length	3.50 m
Hull weight	60 kg
Sail area	5.1 m²
