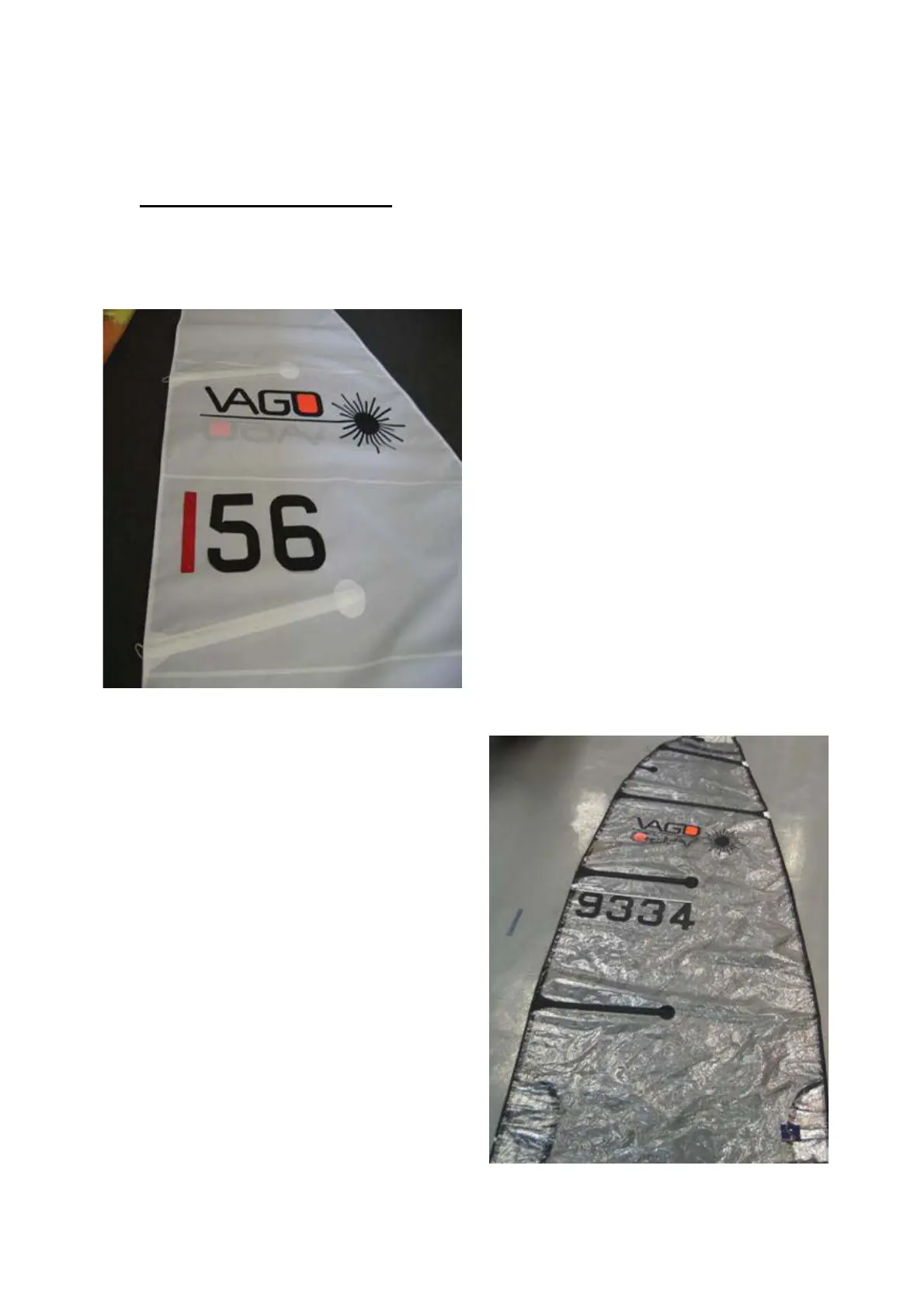

Sail Number Positioning
It is advised to apply the sail numbers in a dry, clean and wind free environment.
Standard Sail
1. Lay the sail on a flat surface
starboard side up.
2. The numbers on the starboard
side are always higher than the
port side.
3. Measure 60mm down, from the
seam directly below the logo.
4. Mark a line, parallel to the
seam.
5. Measure 100mm in from the
leech on this line.
6. The first number is positioned
100mm in from the leech and
with the top of the number on
the line parallel to the seam.
7. The numbers are 60mm apart.
8. Turn over the sail and position
the port numbers 60mm below
the top seam of the panel
below. The numbers are p
to the seam.
arallel
XD Race Sail
1. Lay the sail on a flat surface
starboard side up.
2. The numbers on the starboard side
are always higher than the port
side.
3. Measure 200mm down, from the
second batten pocket from the
bottom of the sail.
4. Mark a line parallel to the batten
pocket. Use tape
5. Measure 100mm in from the leech
on this line.
6. The first number is positioned
100mm in from the leech and with
the top of the number on this tape
line
7. The numbers are 60mm apart.
8. Turn over the sail and position the
port numbers 60mm below the
starboard numbers and parallel to
them.
8
