LaserLiner MultiMeter Pocket XP - MIN;MAX Function; Auto Range; Manual Range

MultiMeter Pocket XP
27
1 sec1 sec
2 sec
1 sec
1 sec
2 sec
1 sec
2 sec

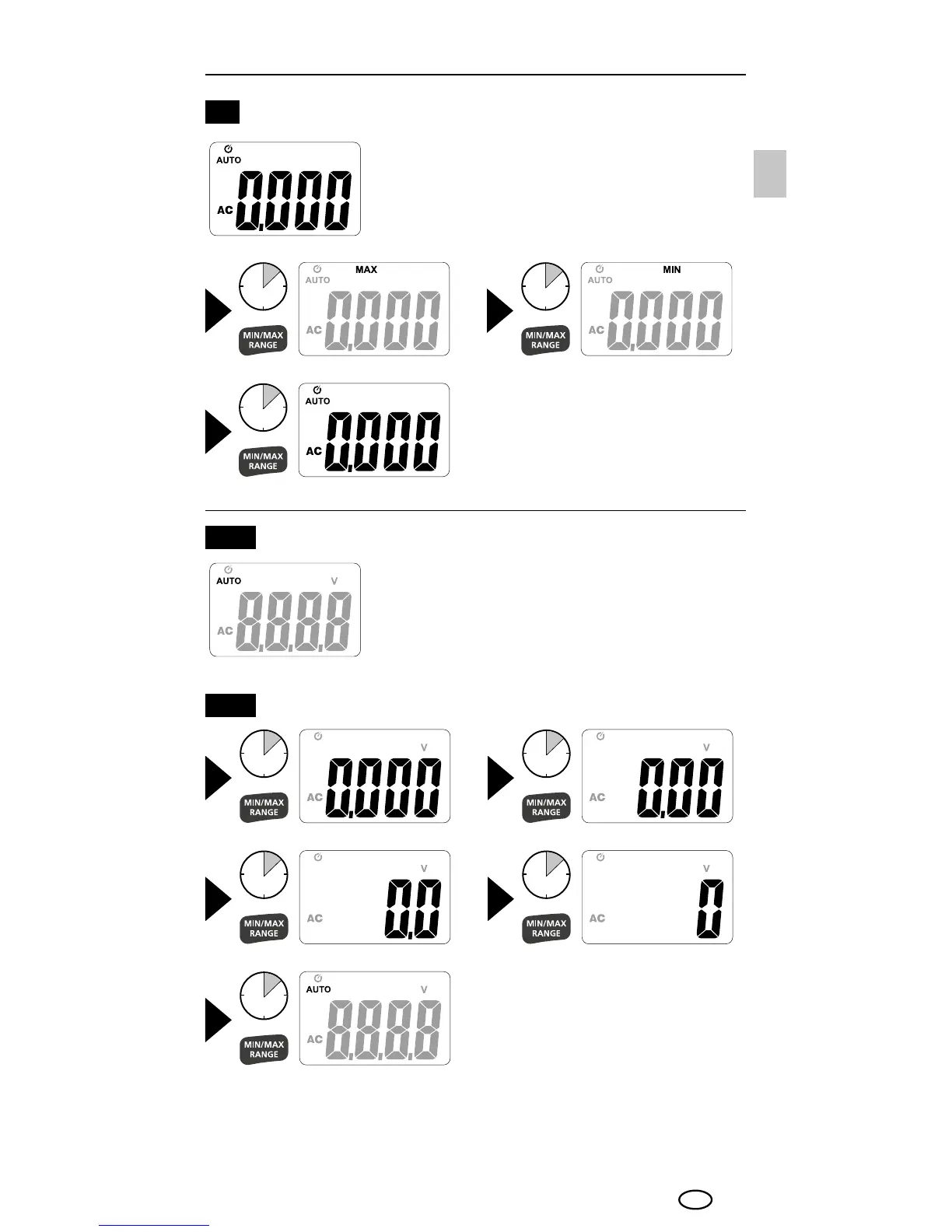

Auto range
13.1
Manual range
13.2
The "Auto range" function is activated auto-
matically when the meter is switched on.
Auto range searches for the best possible
range for each measurement in the corres-
ponding measuring functions.
The Range function can only
be used for voltage, current
and resistance measurements.
MIN/MAX function
12
The MIN/MAX function is deactivated when
the measuring device is switched on.
The MIN/MAX function is not
available for frequency, duty
cycle, resistance, continuity,
diode test and capacitance.
EN
