Lastec Mower 3300 - Hydraulic System Diagram

Maintenance
Hydraulic System Diagram
5
5-8 Lastec//030910 Maintenance

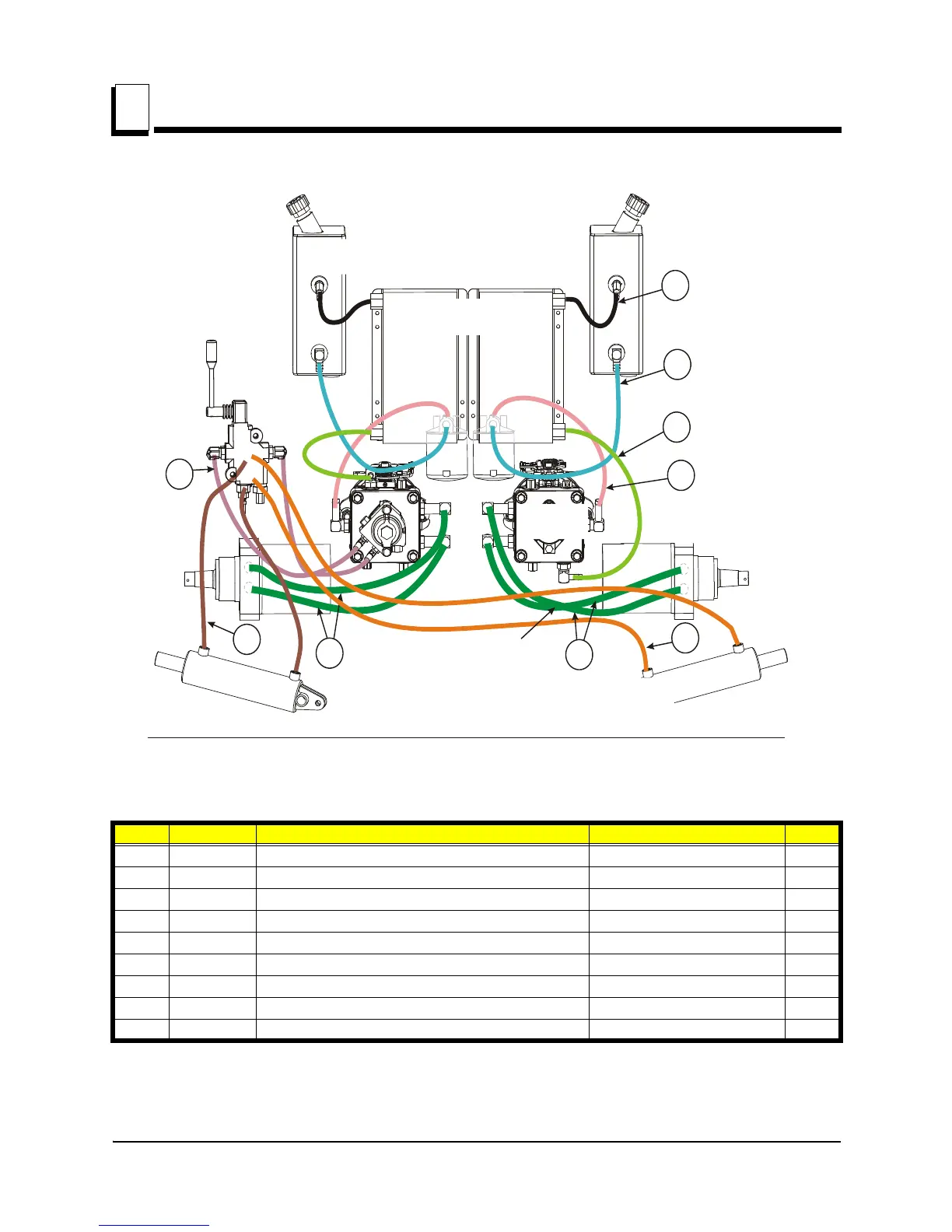

5.15 Hydraulic System Diagram
REF PART # DESCRIPTION COMMENTS QTY
1 049215
Hose, 3/8 Hyd x 10-1/2 Low Press 2
2 056456
Hose, Hydro Suction 19 In 2
3 056457
Hose, 3/8 Hyd x 15-1/2 Low Press 2
4 049218 Hose, Hydro Suction 15 In
2
5 061960 Hose Assy, 1/4x25-3/4 Hyd.
2
6 061959 Hose Assy, 1/4x30 Hyd.
2
7 041180 Hose Assy, 26 OAL x 1/2 Hyd
4
8 061958 Hose Assy, 1/4x56" End-Ctr Hyd.
2
061807 Hose Clamp, Dixon Worm Gear HSS6 Not Shown 8
Front View
Coolers
Tank
Pump
Motor
Cylinder
Valve
3
5
7
6
2
1
8
NOTE: Crossover
7
4
