5.4 Connection of external circuits
a) Immersion thermostats
−

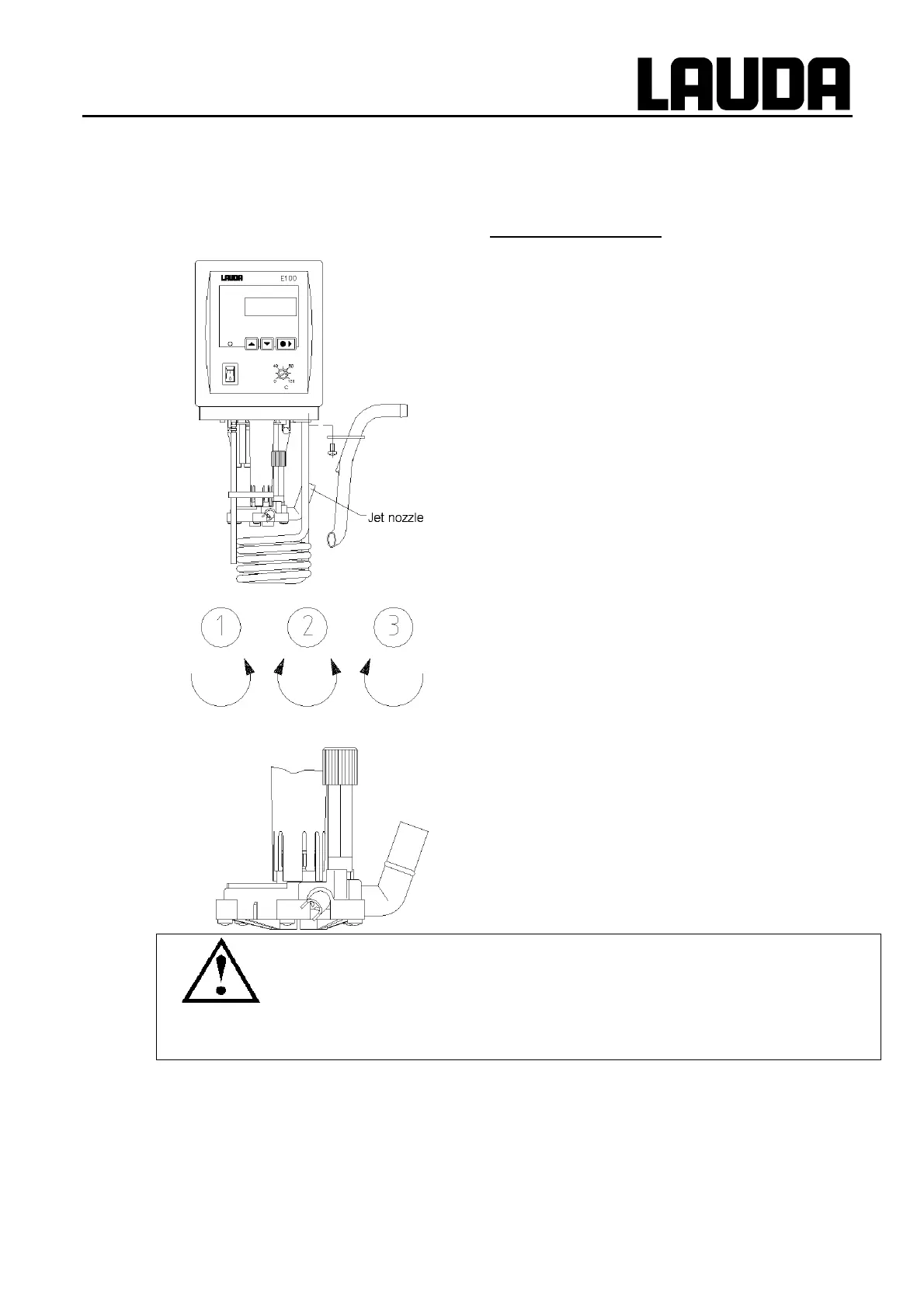

Push 11-12 mm int. dia. tubing (
➾
Section 5.3.) directly
onto the jet nozzle and connect it to the external
consumer.
−
Hang the return tubing into the bath and fix it!
−
We recommend to use the pump set (
➾
Section 10.
Accessories). In this case
−
screw on the pump connectors.
−
Install the connecting tube.
−
Using the setting knob at the pump outflows, divide up
the pump flow in accordance to the thermostating
task.(
➾
Section 5.1)
−
Position
➀
➀➀
➀
!
maximum flow in the external circuit, the
setting knob is turned anticlockwise.
−
Position
➁
➁➁
➁
!
flow passes through pump outflow and
outlet for bath circulation, the setting knob is in medium
position.
−
Position
➂
➂➂
➂
!
external circuit is closed and the outlet for
bath circulation fully open, the setting knob is turned
clockwise.
−
Operate the setting knob only when the bath contents are near ambient
temperature.
−
When no tubing is connected, close the pump outflow connection with closing
plugs even in position
➂
➂➂
➂
.
