Integral T process thermostats
64 Starting up YAWE 0026 / 21/01/2019

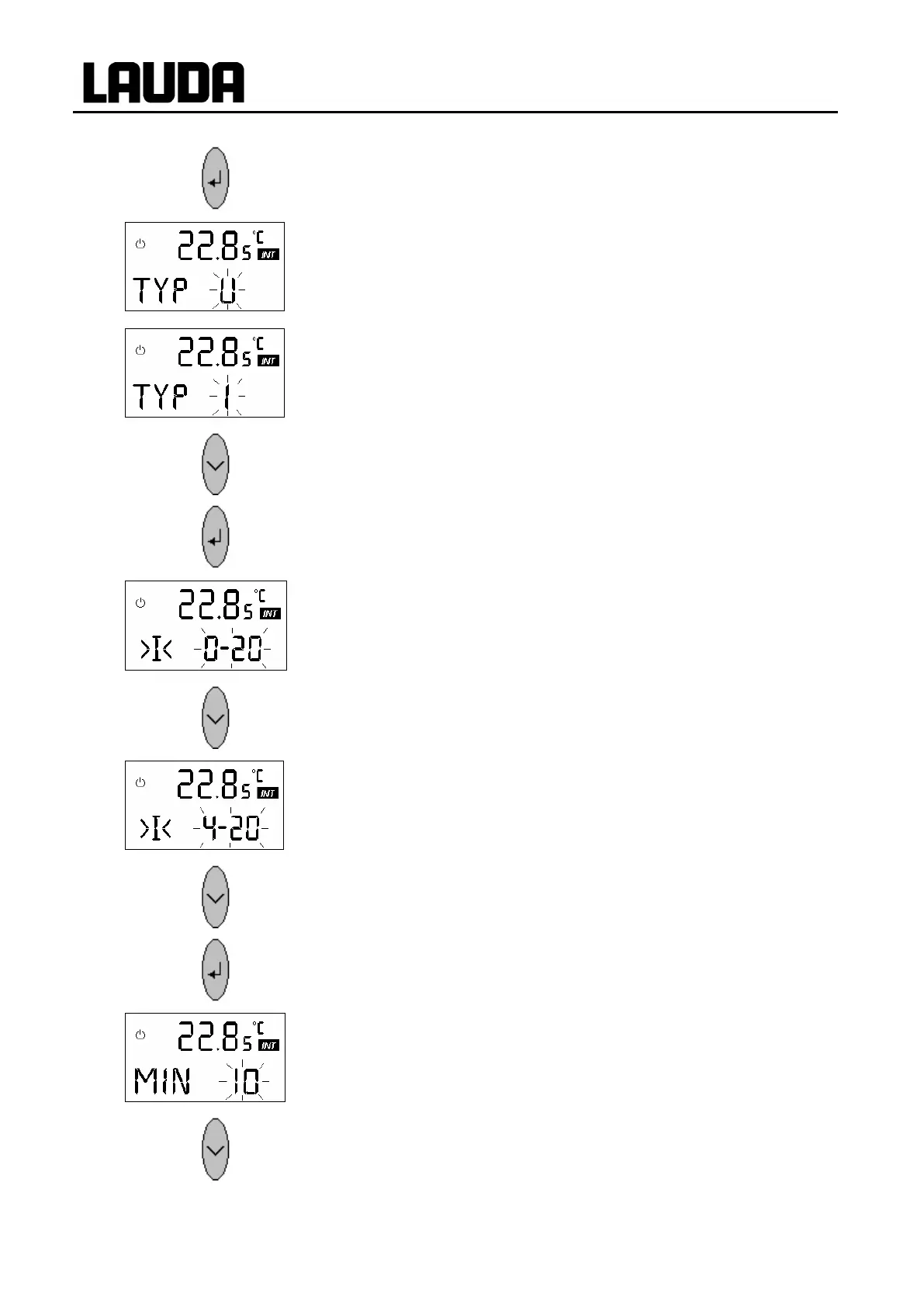

 Type = input signal type; voltage 0-10 V (U) or current
0-20 mA (4- 20 mA) (I).
 If a current range has been selected there is also a
request whether range 0-20 mA or range 4-20 mA is
required.
 MIN = minimum temperature in °C
For determining the temperature range to which the
current or voltage range has to be assigned.
