LAUNCH
CRT 511S User Manual
31

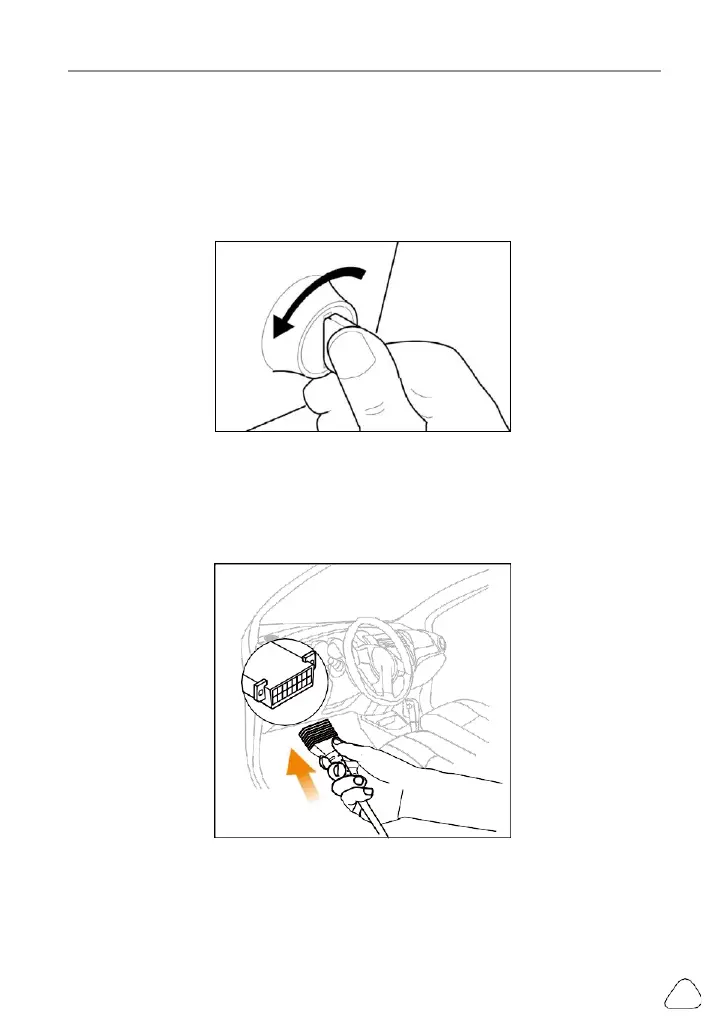

6 OBD II Diagnosis
6.1 Connection
1). Turn the ignition off.
2). Locate the vehicle’s 16-pin Data Link Connector (DLC). Refer to Chapter
2.4.
3). Plug one end of the diagnostic cable into the vehicle’s DLC(Data Link
Connector) port, and the other end to the DB-15 diagnostic connector of
the tool, and then tighten the captive screws.
