perpendicular.
l Let the drill work itself. Don’t apply the extra force,
and don’t ream the hole or allow the drill to wobble.
l The drilling depth of hole is based on the length of
anchor bolt. The distance from the bolt head to the
concrete floor should be more than twice of the bolt
diameter.
l Remove the dust from the hole.
l Gently tap the bolt into the hole till the washer rests
against the base plate of column.
l Tighten the bolt.
5.2.10 Installation of wheel stop Plates and
Drive-on Ramps
Install wheel stop plates and drive-on ramp (Fig. 2).
Cautions: The drive-on ramps should be able to
turn freely after installation.
5.2.11 Installation of turn table and side slip
plates (440W)
See Fig.17
5.2.12 Rolling Jack Installation (440W)
Locate the rolling jack on the track rail between the
runways. Move the rolling jack back and forth to make
sure it is not blocked. Connect the recoil air hose to the
rolling jack pneumatic pump.
The long and short adapters for lifting pad can be used to
meet the different chassis of vehicles (Fig.17)

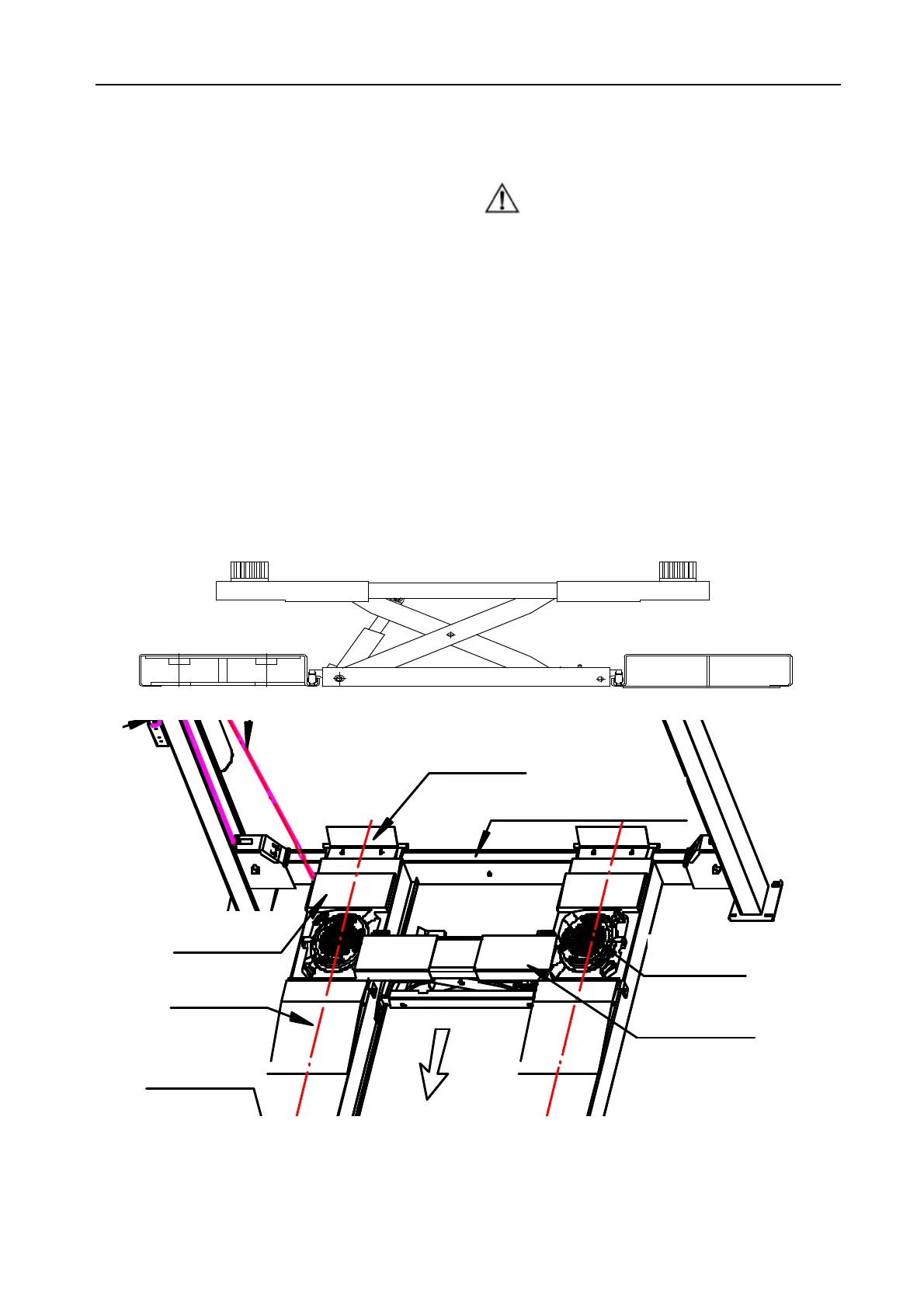

WheelStop
FrontCover
FrontRamp
LeftRunway
TurnTable
RollingJack
FrontCrossTube
Fig. 17(440W)
