LAUNCH X-431 PRO MINI User Manual
18

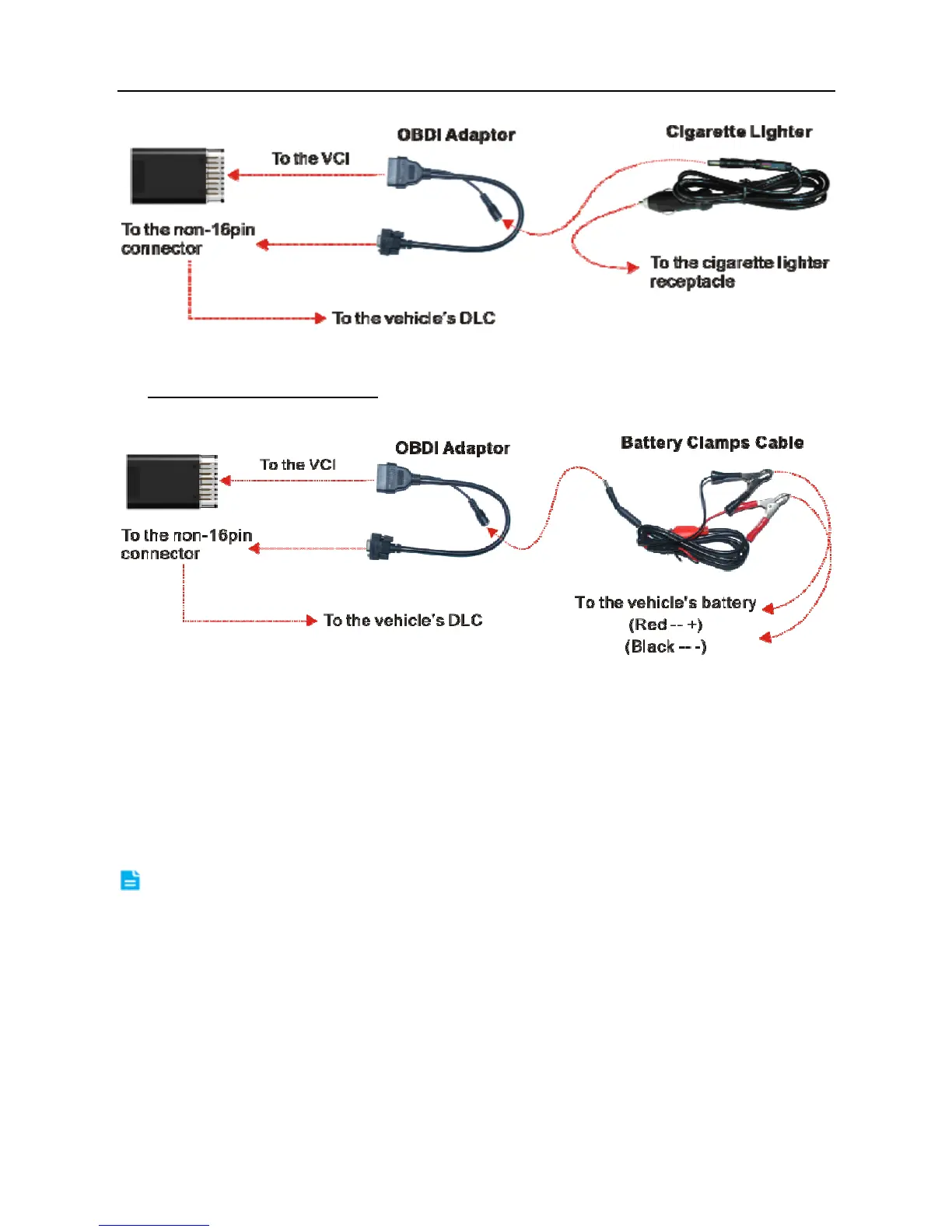

Fig. 4-11
B. Battery Clamps Cable:
Connect one end of the battery clamps cable to
vehicle’s battery, and the other end to the power jack of OBD I adaptor.
Fig. 4-12
4.4 Bluetooth Setting
Enter X-431 PRO MINI Bluetooth setting screen (“Settings” --> “Bluetooth”),
slide the Bluetooth switch to ON and X-431 PRO MINI will start searching
available Bluetooth device, tap the desired connector to pair.
By default, the Bluetooth name is 98569*****00 (where ***** stands for 5 digits.).
Note: In case no Bluetooth setting is done before diagnostic software is launched,
you can also configure it while using the software. For details on Bluetooth connection,
please refer to Chapter 4.5 “Start diagnosing”.
4.5 Start Diagnosing
Tap “Tradition Diagnose” to enter the vehicle selection page.
2 approaches are provided for you to access the vehicle diagnostic software.
Choose any one of the following ways:
1. VINSCAN enables you to access it more quickly.
In this case, automatic scan (OBD VIN) and manual input (INPUT VIN) are
