LAUNCH X431 PAD Scopebox User’s Manual

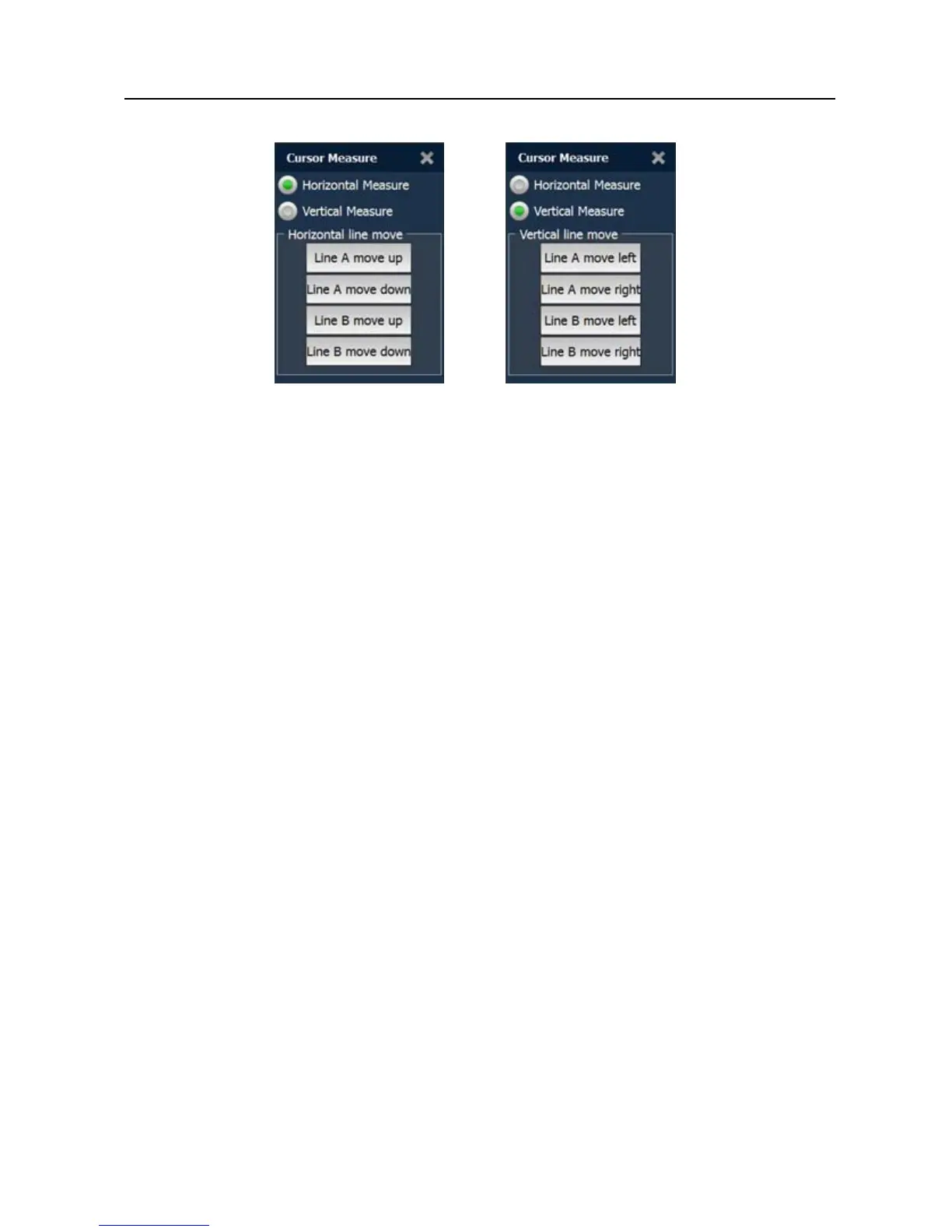

Fig. 3-11 Fig. 3-12
Horizontal Measure is for voltage (see Fig. 3-11) and vertical measure is for
timebase (see Fi
g. 3-12).
Options descriptions:
[A Line / B Line move up / down]: fine adjustment for volt
age. A line is a solid
line and B line is a dotted line;
[A Line / B Line move left / right]: fine adju
stment for timebase. A line is a
solid line and B line is a dotted line.
<3> Clear Measurement
Click “Measure” and then [Clear Measure], the s
ystem will clear the
measurement result.
3.3.6 File management
<1> Record waveform
This function is used to record waveforms that are collected by oscilloscope at
a period, and save it as dat
a file which can be played back in future.
It can be performed only when the oscilloscope is collecting data in Normal
mode.
Click [File], then select [Record] from the pop-up menu to start recording.
See
Fig. 3-13.
13
