AIR & FUEL SYSTEM

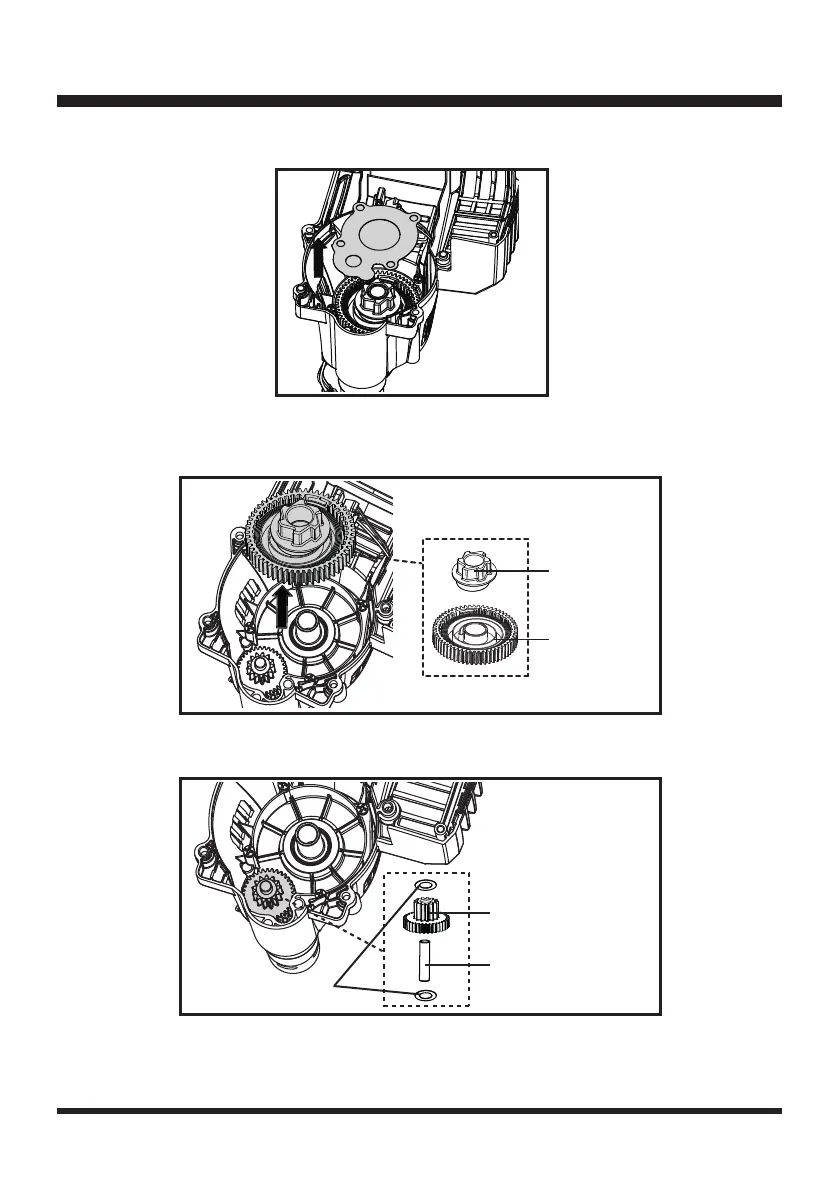

■ Remove the dust lter (Fig. 55).
Fig. 55
■ Remove the gear assembly with volute spring and ratchet wheel, and replace each of them if
needed (Fig. 56).
Fig. 56
■ Remove the dual gear, dual gear shaft, and gaskets and replace if needed (Fig. 57).
Fig. 57
Volute Spring
Gaskets
Dual Gear
Dual Gear Shaft
Ratchet Wheel
