40
NOPULL
TM
STARTER SYSTEM
Special troubleshooting instructions for No-Pull™ Start Button
(See Figs.
80-87)
Starting Operation
Lift the start button cover and press the start button to start the electric motor. Release the start button
to stop the electric motor (Fig. 80).
NOTE:
When the start button remains pressed, the electric motor will run for about 5 seconds then
it will stop automatically. When this occurs, release the start button and press it again to re-start the
electric motor.
Troubleshooting
■ The electric motor does not start when pressing the start button. According to LED indictors, the
possible causes as below:
A. Yellow ashing of the battery indicator LED indicates battery cells are too hot and needs to cool to
room temperature (Fig. 81).
During starting process the LED will indicate the battery voltage as below if there is no alarm indicator:
Tolerance is ±0.2V
Battery Voltage LED Status
≥7.7V Green
7.1V-7.7V Orange
6.6V-7.1V Red

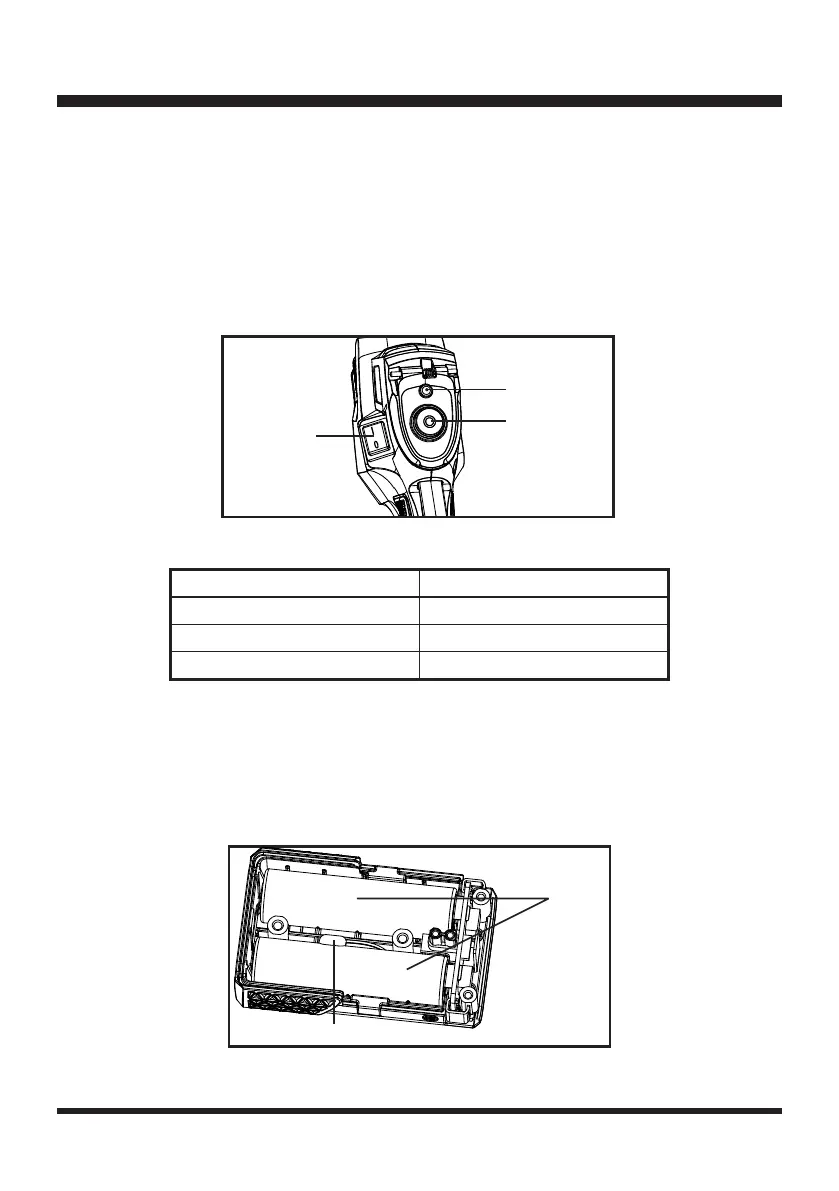

Fig. 80
LED
Start Button
Stop Switch
Fig. 81
Battery
Cells
NTC
To Next Page
