THROTTLE AND STARTER SYSTEM
Disassembly, Inspection & Repair of Throttle and Starter System
(See Figs.
60-79)

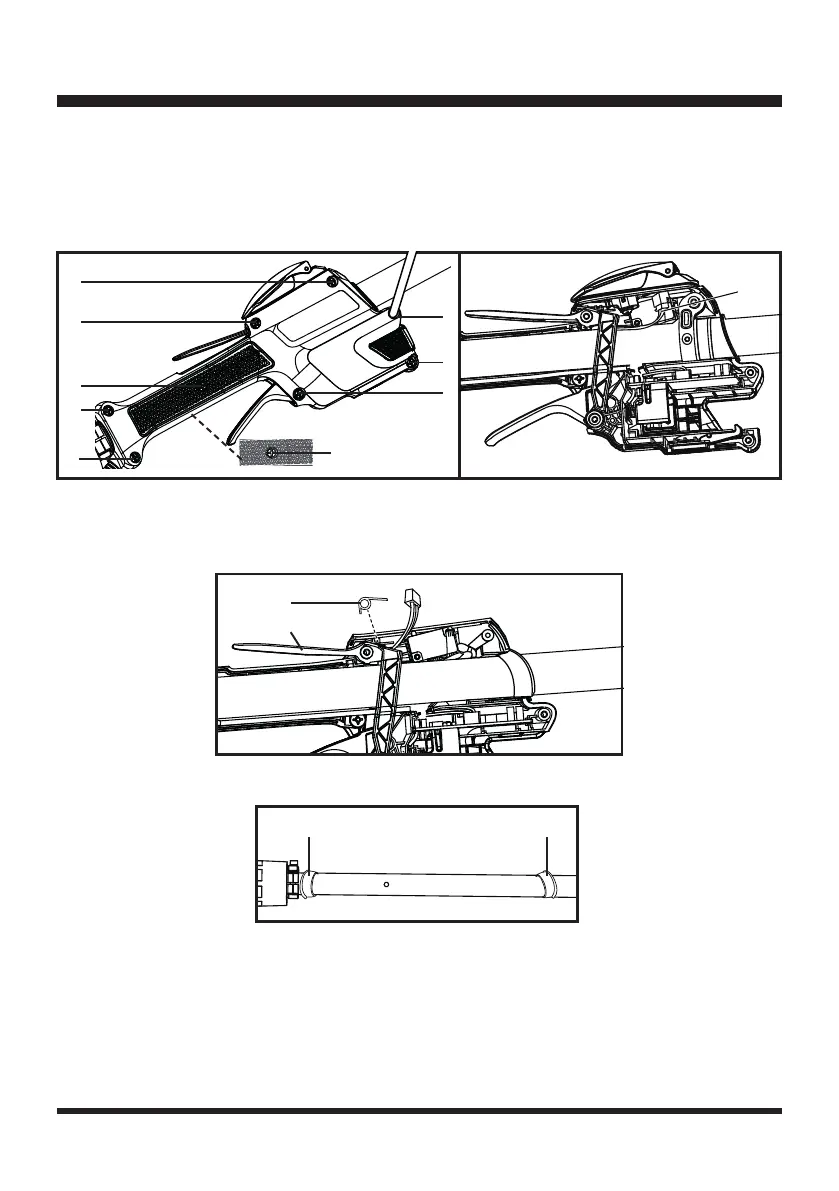

■ Remove the 9 screws on the main handle (8 screws on the right cover and 1 screw on the left
cover). Then remove the right cover of the main handle (Fig. 60 & 61).
■ Disconnect the LED light cable from the electric starter cover plate and then remove the electric
starter cover plate. Then remove the throttle safety and the torsional spring. Keep them properly for
reassembly (Fig. 62).
■ Remove the shaft. Pay attention not to change the position of the two rubbers (Fig. 63).
Fig. 61Fig. 60
1
2
3
4
5
6
7
8
9
LED Light
Cable
Torsional Spring
Throttle Safety
Fig. 62
Fig. 63
Rubber Rubber
