THROTTLE AND STARTER SYSTEM

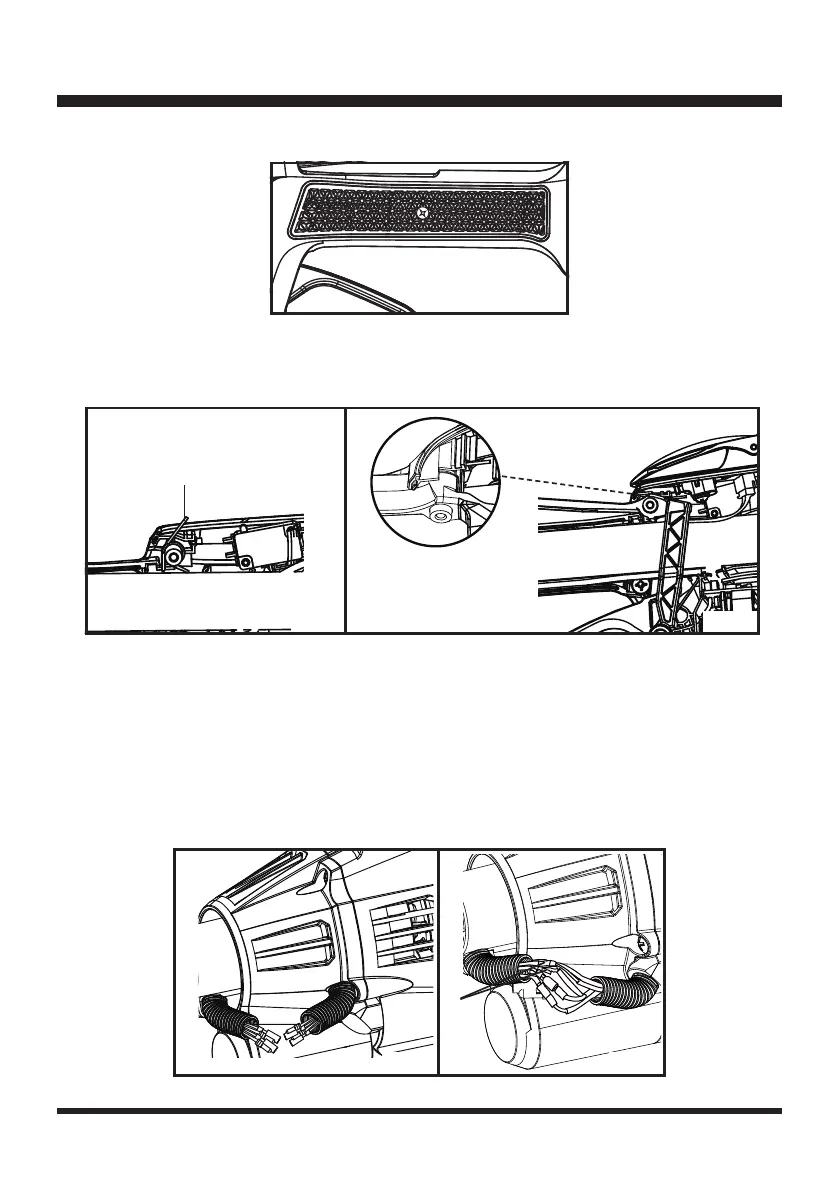

■ Turn over the handle cover and re-install 1 screw (Fig. 73).
■ To install the torsional spring and throttle safety, rst pay attention to the correct direction of the
torsional spring with the long end upwards as shown (Fig. 74). Make sure the throttle safety and the
torsional spring are installed into place (Fig. 75). Install the electric starter cover plate.
■ Restore the right cover of the main handle by tightening the 8 screws.
Power Line Connection
■ Align and connect the male and female terminals of the wiring harness of the main handle to the
male and female terminals of the wiring harness of the engine. Always gently pull the wiring harness
once they are connected and make sure they are connected well without any loosening. Check that
all the insulation covering outside the wiring harness wrap the terminals completely. Ensure the
metal terminals are not exposed (Fig. 76 & 77).
Fig. 73
Fig. 74 Fig. 75
Torsional Spring
Fig. 77Fig. 76
Blue
To Next Page
