V1.0/284 V_pro8 Manual
Operation (Web Browser Control)
SDI Out
AFD

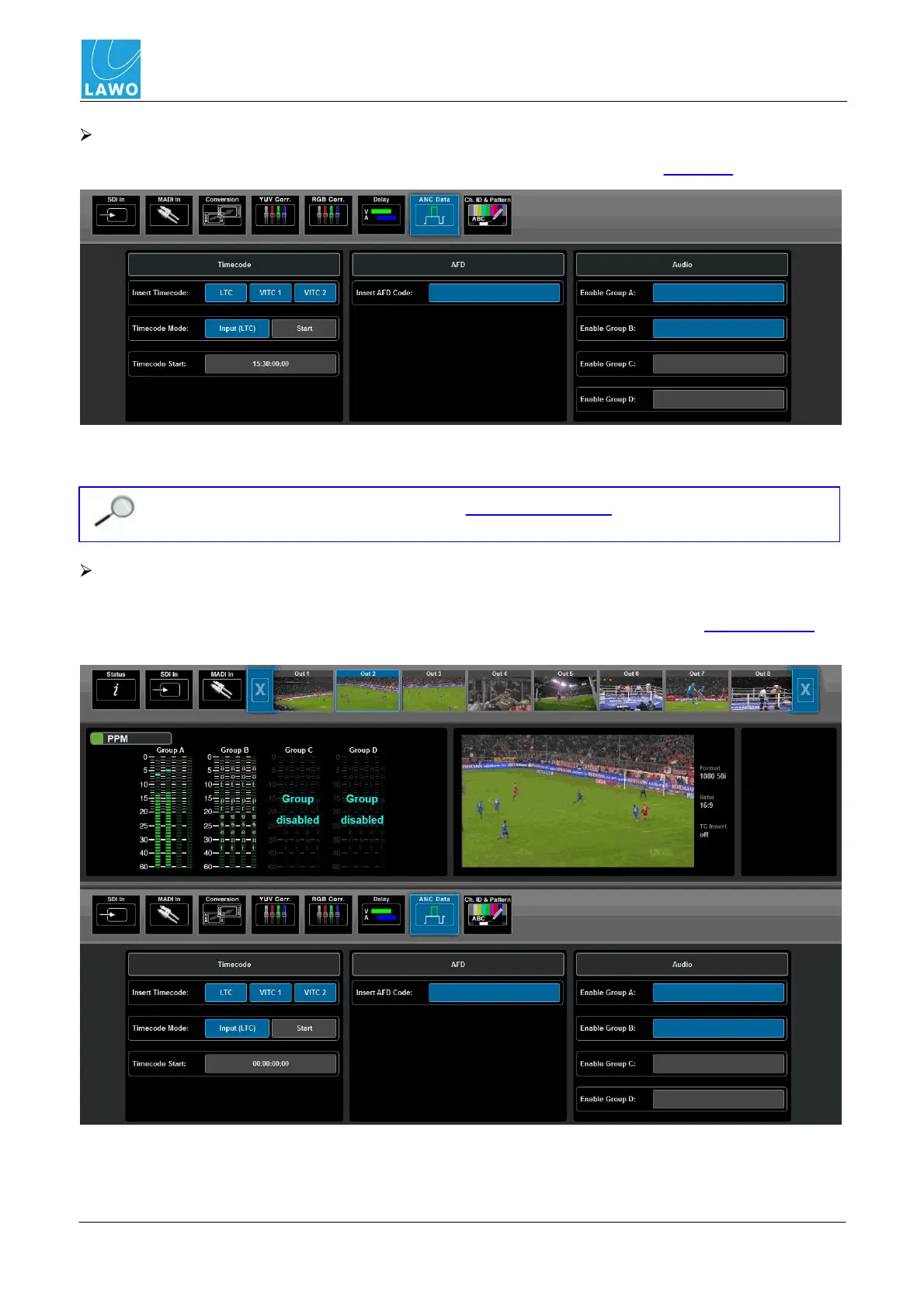

Enable the Insert AFD Code button to copy the AFD code from the assigned SDI input stream:
The AFD (Active Format Description) code is embedded into digital video signals, to control the way
in which a 16:9 image is adapted for a 4:3 display.
Note that the AFD code will be modified if Format Conversion is active and changes the
aspect ratio of the SDI output.
Audio
Enable the Group A to D buttons to embed audio groups into the SDI output. In our example, only
Groups A and B will be embedded. Note that your selections are reflected in the PPM metering for
output:
