1. Insert the castors 1 into the mobile beams 7 and use bolts and nuts
to prevent them falling out.
2. The mobile beams 7 must be connected to one another using a basic
tube 12 .
3. Pull open the basic tower 9, firmly snap in the joints in the folding
part and fit it onto the mobile beams 7.
4. Snap in the deck 23 at the second rungs of the basic tower ladder frames
.
1. Insert the castors 1 into the mobile beam 7 and use bolts and nuts
to prevent them falling out.
2. The mobile beams 7 must be connected to one another using a basic
tube 12 .
3. Pull open the basic tower 9, firmly snap in the joints in the folding
part and fit it onto the mobile beams 7.
4. Brace the basic tower by installing a guardrail 16 at the bottom
rung.
5. Snap in the access deck 24 at the top rung of the basic tower ladder
frames.
6. Attach the 1.95 m diagonal brace 20 to the second rung from the
top and to the second rung from the bottom of the opposite ladder
frame.
7. Fit two 1.00 m ladder frames 10 and connect them with two guard-
rails 16 each per side. Secure the ladder frame joints with spring clips
15.

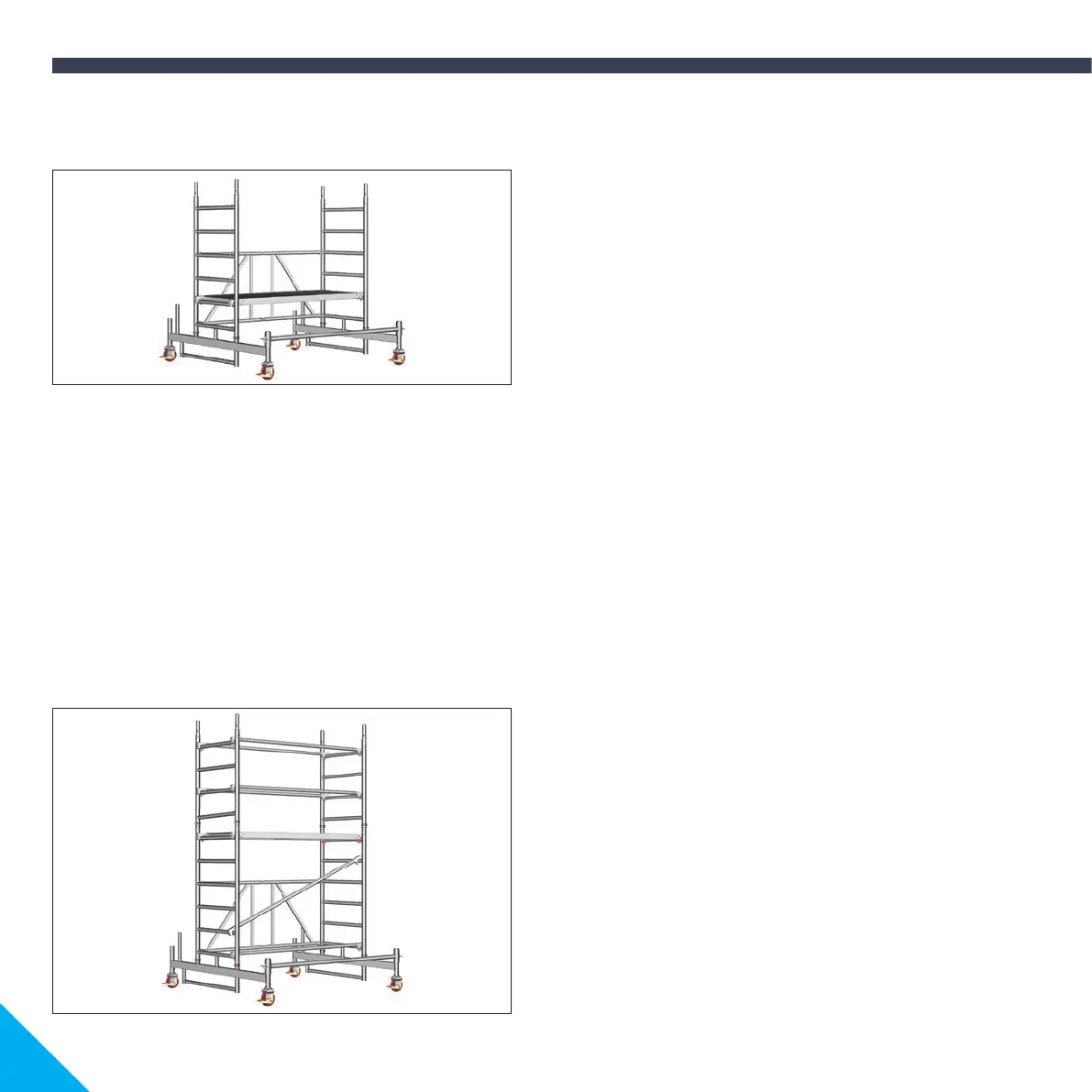

Basic structure
Tower models 1406213 and 1406215
Basic structure
Tower models 1406214 and 1406216
