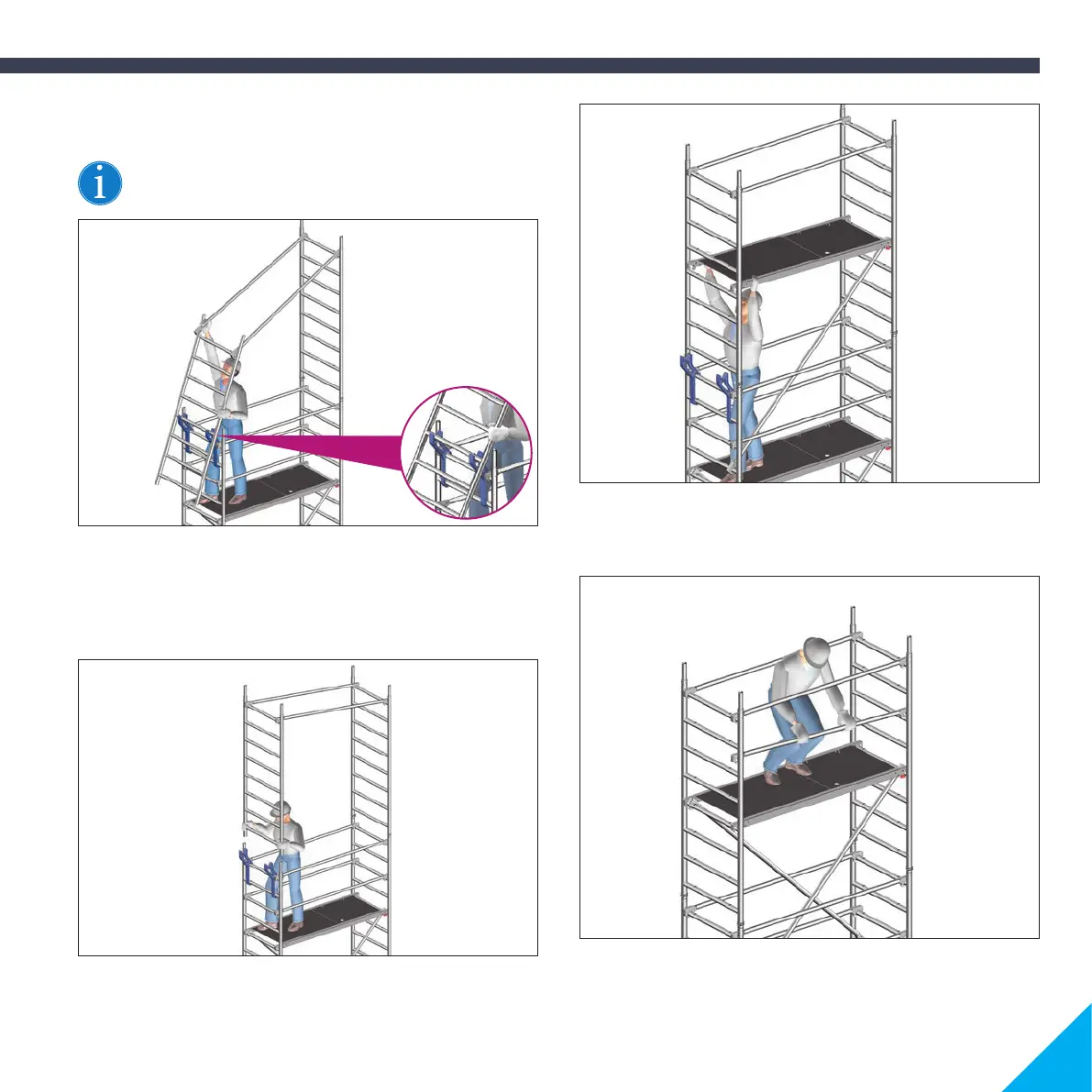

4. Insert diagonal braces 19 and access deck 24. The diagonal bracing
arrangement is shown for the tower models (Section 4).
5. Ascend to the next level and fit additional guardrails 16
on the second rung above the platform area.
3. Swing the ladder frame 11 with guardrails 16 upwards, fit it
in place and secure it with spring clips.
Repeat the following assembly steps 1 to 5 several times
depending on the assembly height.
1. Fit a first 2.00 m ladder frame 11 and secure it using spring clips 15 .
2. Attach the Uni assembly hooks 29 and position the second ladder
frame 11 for assembly of the guardrails 16.
Assembly of intermediate platforms
All tower models
