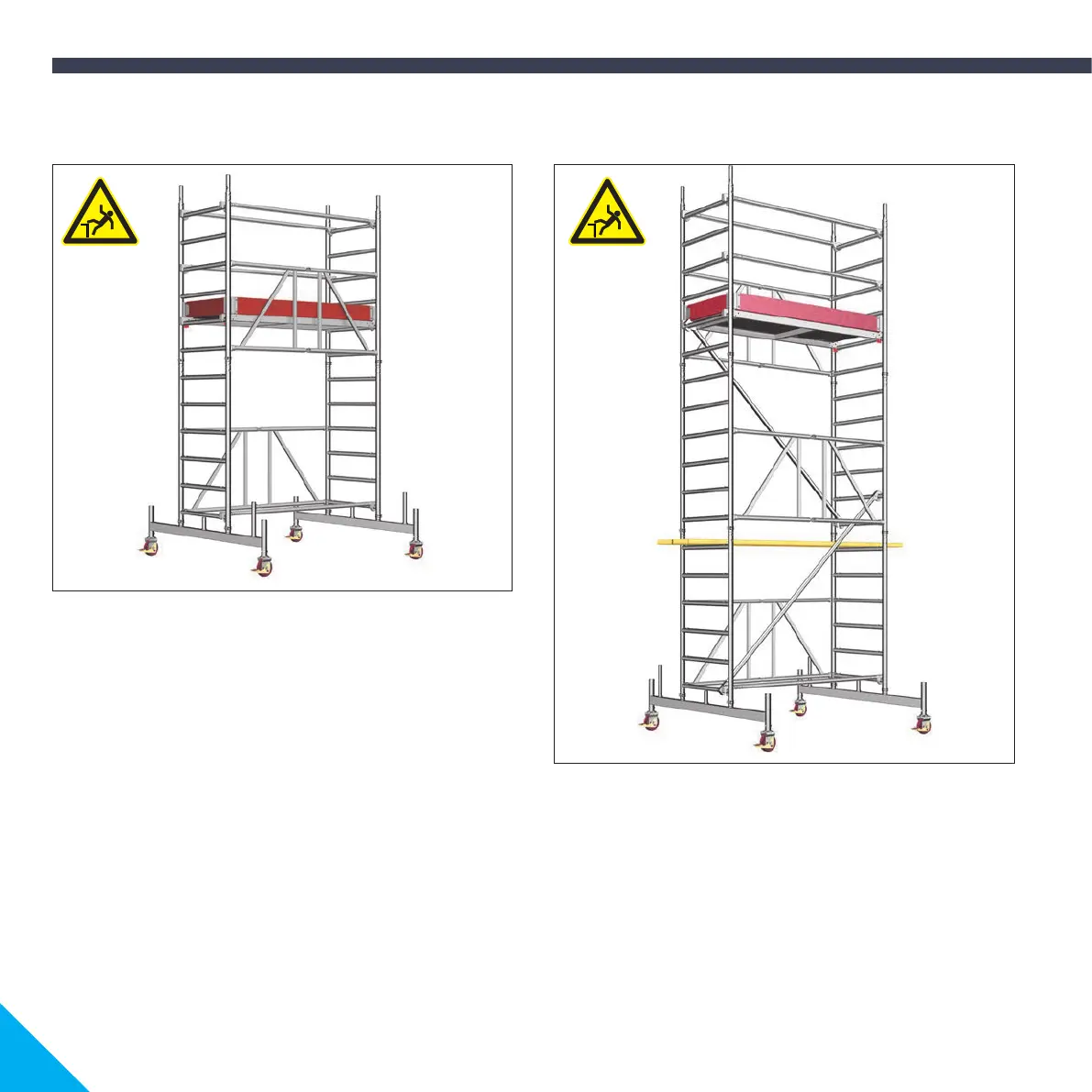

1. Open the second basic tower 9 and firmly snap in the joint in the
folding part. Attach it at an angle of 180° to the first basic tower.
Secure the joints with spring clips 15.
2. Snap in the access deck 24 at the second cross-rung from below of
the upper basic tower.
3. To complete the working platform, install 3 guardrails 16, toe boards
25 and end toe boards 26.
1. Open the second basic tower
9 and firmly snap in the joint in the
folding part. Attach it at an angle of 180° to the first basic tower.
Secure the joints with spring clips 15.
During assembly and dismantling, system decks or scaffolding
planks according to DIN 4420-3 (minimum dimensions 28 x 4.5 x
220 cm) must be installed as auxiliary decks at maximum height
intervals of 2.0 m. These auxiliary decks provide a safe footing
for assembly and dismantling, and must be removed again after
assembly. Each platform must be completely boarded.
Further assembly
Tower model 623
Further assembly
Tower model 624
