Installation on Subaru Impreza
There are a few different igniton options on subarus:
Installation on Impreza with 4 separate coils on each cylinder

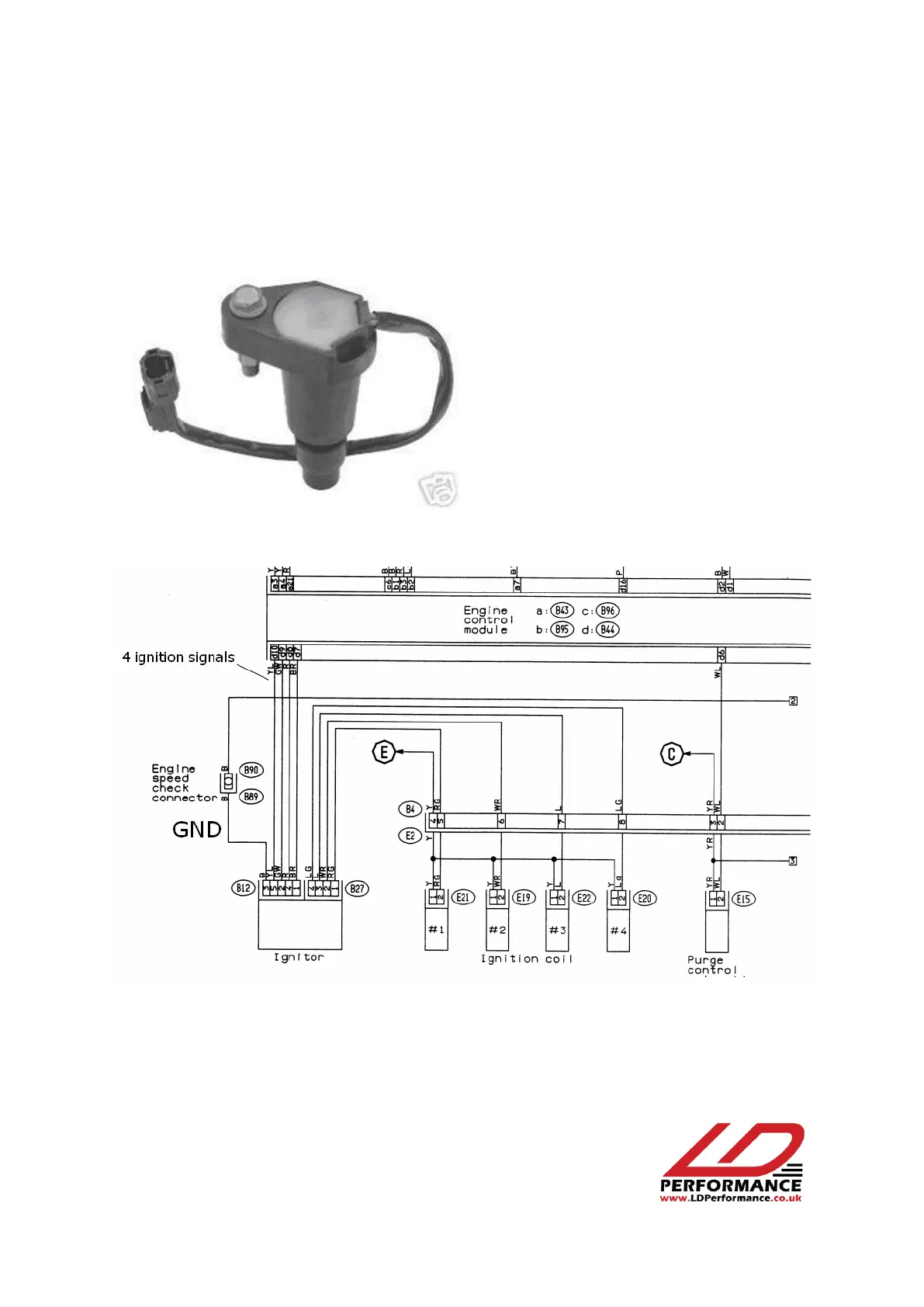

The ECU wiring diagram according to the manufacturer is like this
You need to locate the ignition module and on its 5 pin connector one wire (the biggest one) is
connected to ground – connect to Launch control GND wire. The other 4 wires are ignition signals
from the ECU. Cut them and connect the ends going to the ECU to CH IN and the ends to the ignition
module to CH OUT of the Launch control.
