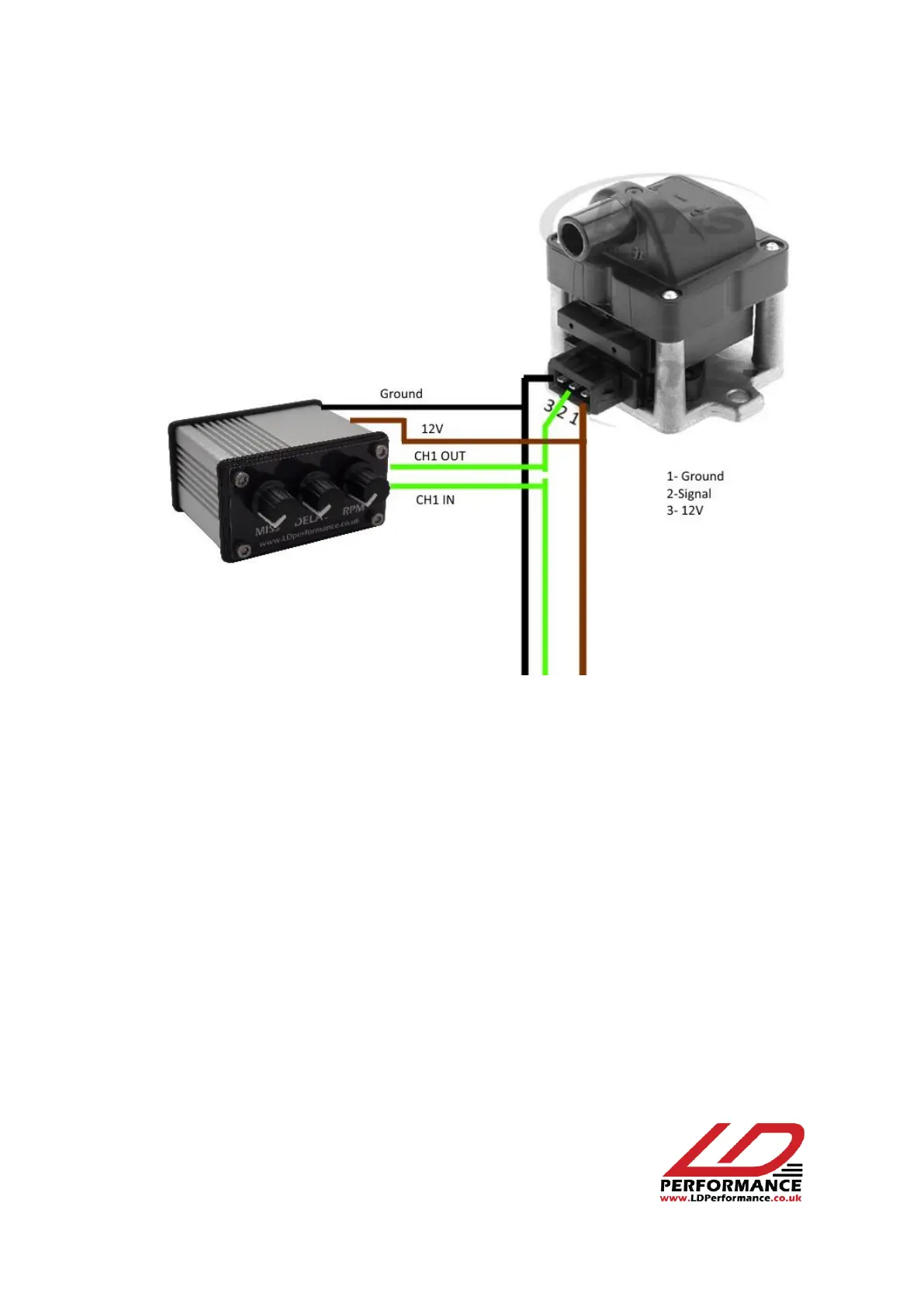

Installation on VW 3 pin coil with distributor
1 – Ground
2 - Ignition signal
3 – 12V ignition
Connect pins 1 and 3 to Launch control Ground and 12V respectively.
Cut the wire going to pin 2 and connect the side coming from the ECU to Launch control CH1 IN.
Connect the other side (going in the coil pin 2) to CH1 OUT.
Do not use any of the other available channels on the launch control.
