12

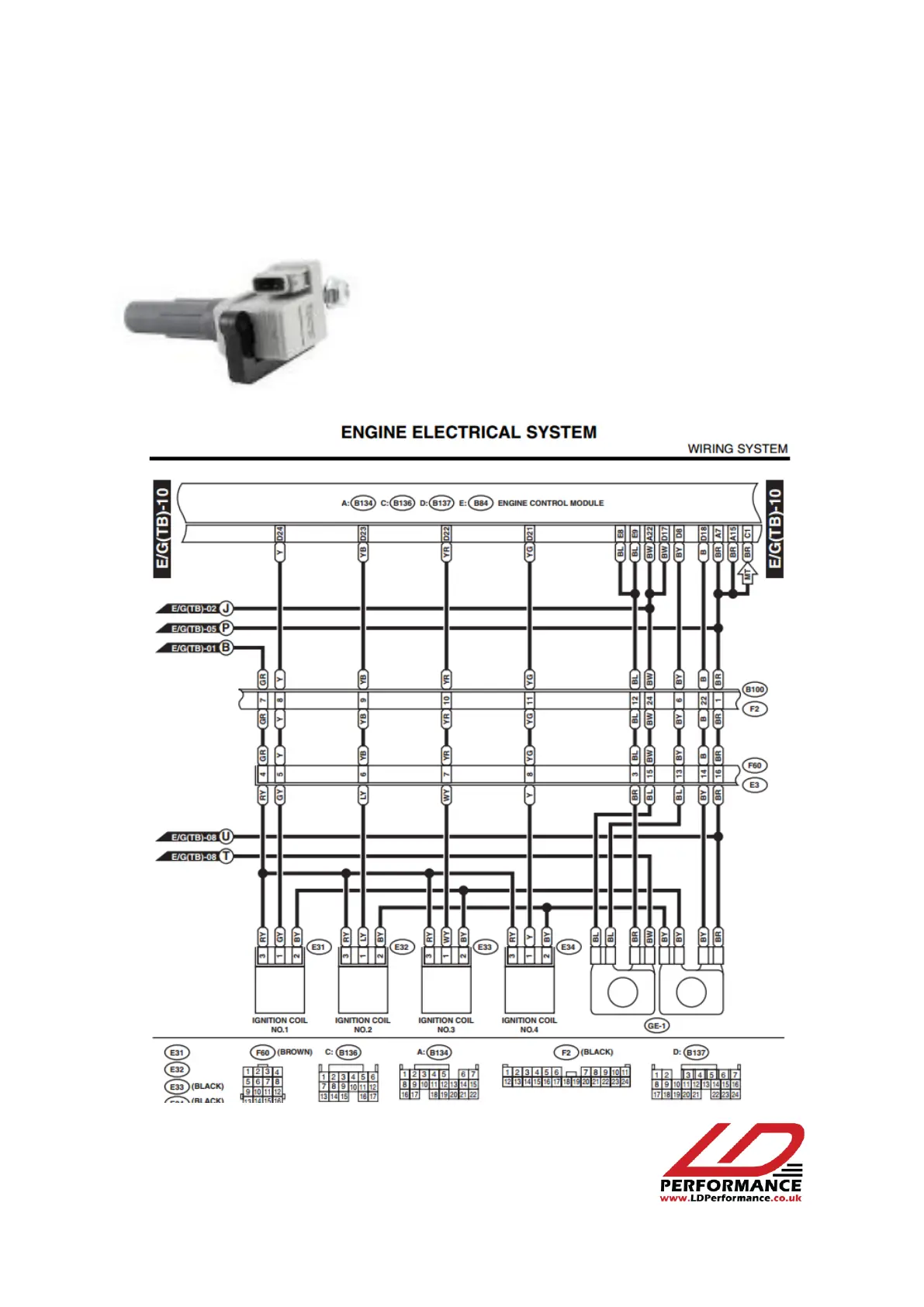

The 12V launch control wire can be connected to the point marked “E” on the diagram which is the

positive side of a coil.

Also install the clutch switch if not already installed.

Installation on Impreza with 4 separate ignition coils
