Installation on VR6

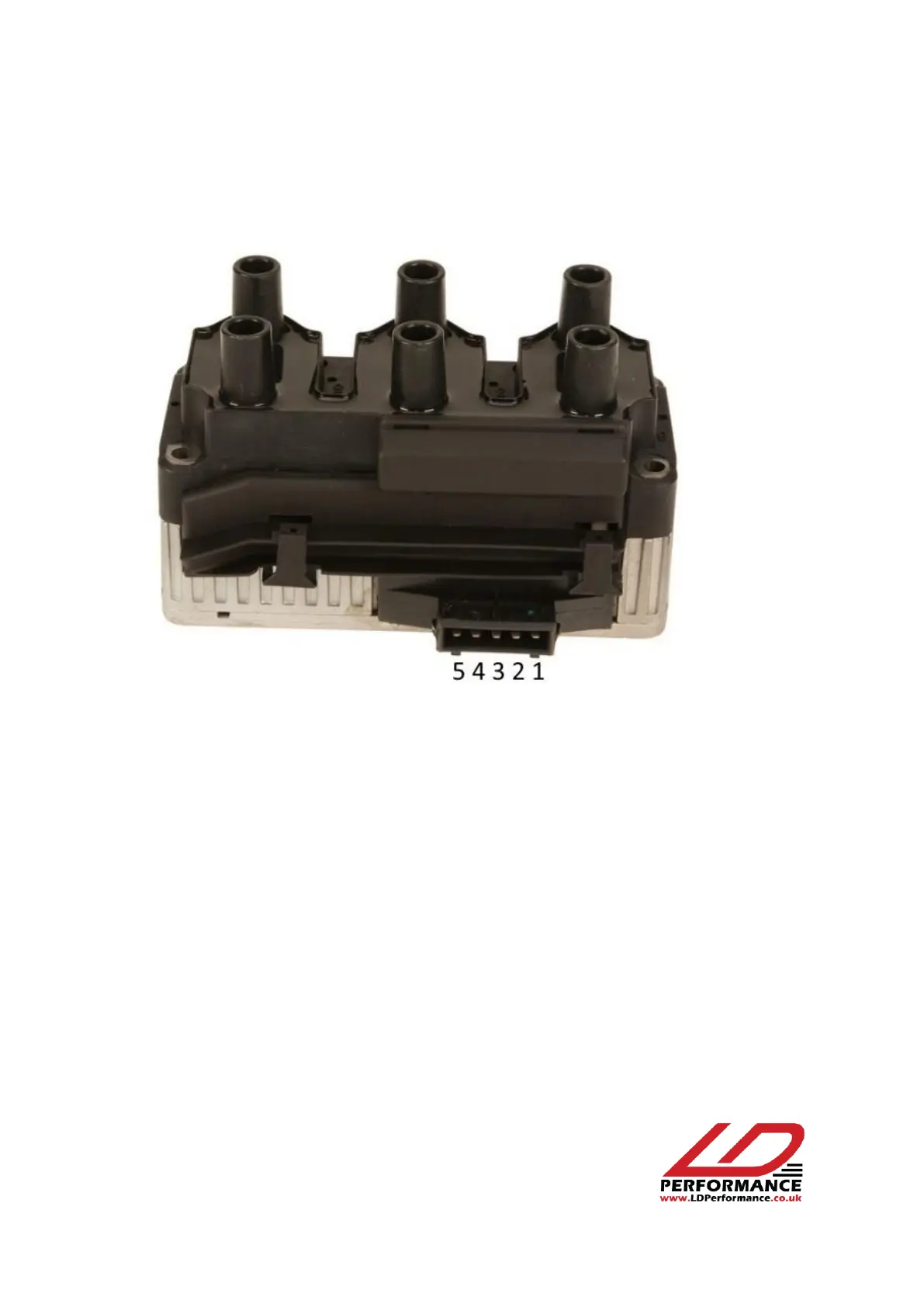

Verify this is the ignition coil you’ve got:
1 – Ground
2 – Ignition signal
3 – Ignition signal
4 – Ignition signal
5 – 12V ignition
Connect pins 1 and 5 to Launch control Ground and 12V respectively.
Cut the wire going to pin 2 and connect the side coming from the ECU to Launch control CH1 IN.
Connect the other side (going in the coil pin 2) to CH1 OUT.
Same for pins 3 and 4 – use CH2 IN/OUT and CH3 IN/OUT. Leave CH4 (and other channels) on the
launch control not connected.
