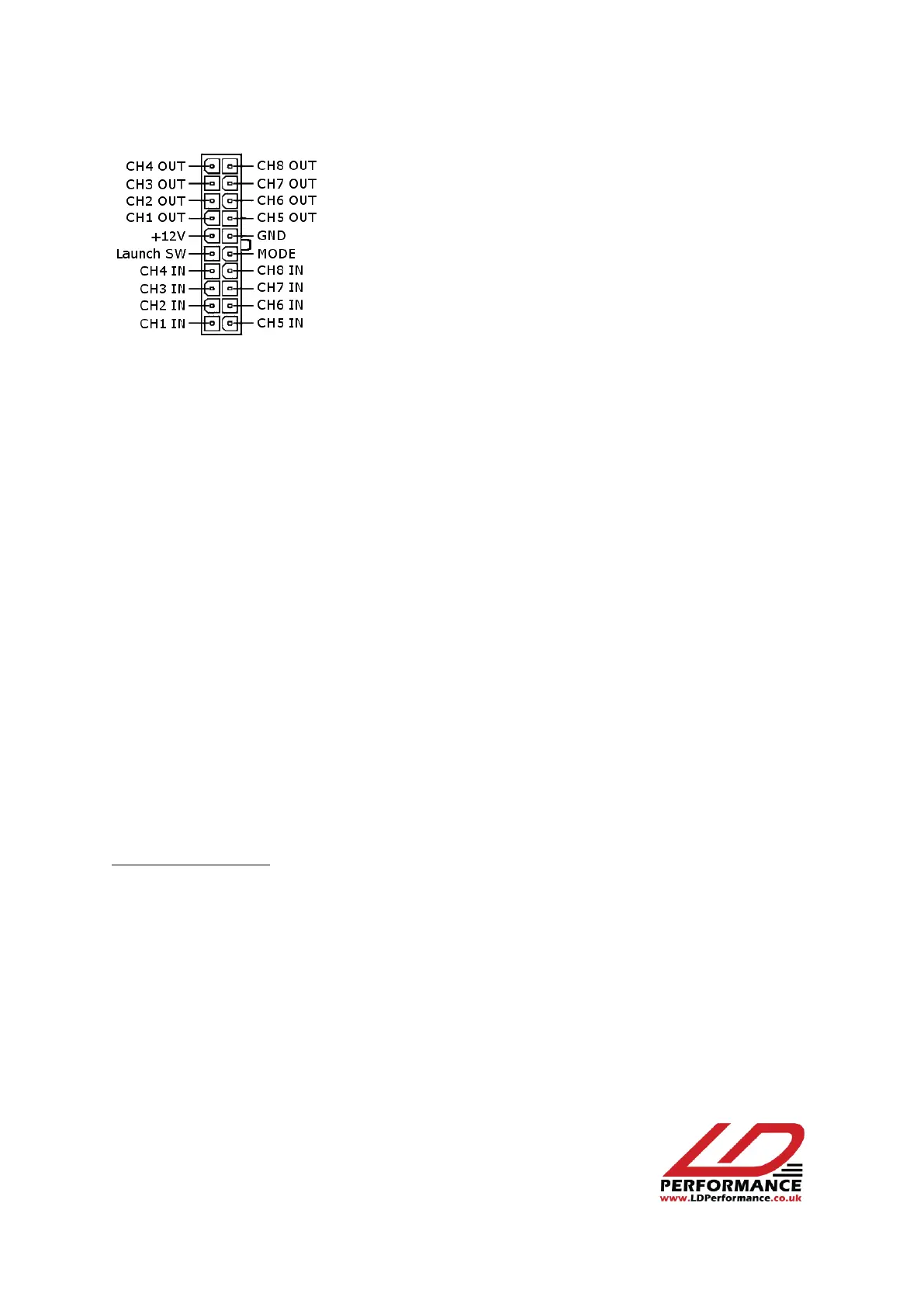

Device pinout
This is looking at the connector at the back of the device.
The Launch control is tuned using 3 knobs:
Miss - sets the number of missed sparks during rev limiter (allows unburned fuel to build up)
Delay - control ignition delay ( usually the larger - the more sound and flames you get )
RPM - set the rpm limit level
After the Launch control is wired, start the car and set the RPM setting to highest (max clockwise)
and delay and miss to minimum (counter-clockwise). Connect the “Launch” wire to ground to
activate rev-limiter and start turning the RPM knob to the left and rev the engine so you can see
when the rev limiter occurs. After this is set, proceed to tuning Delay and Miss settings. Be careful
when increasing the Delay setting, as it puts more stress on the engine and turbo, due to higher
pressures and temperatures.
Installation on 1.8T Audi/VW Engine
There are two possible ignition options for 1.8T engine, pick the one appropriate for your engine by
checking the type of coils.
1: Coils look like this:
