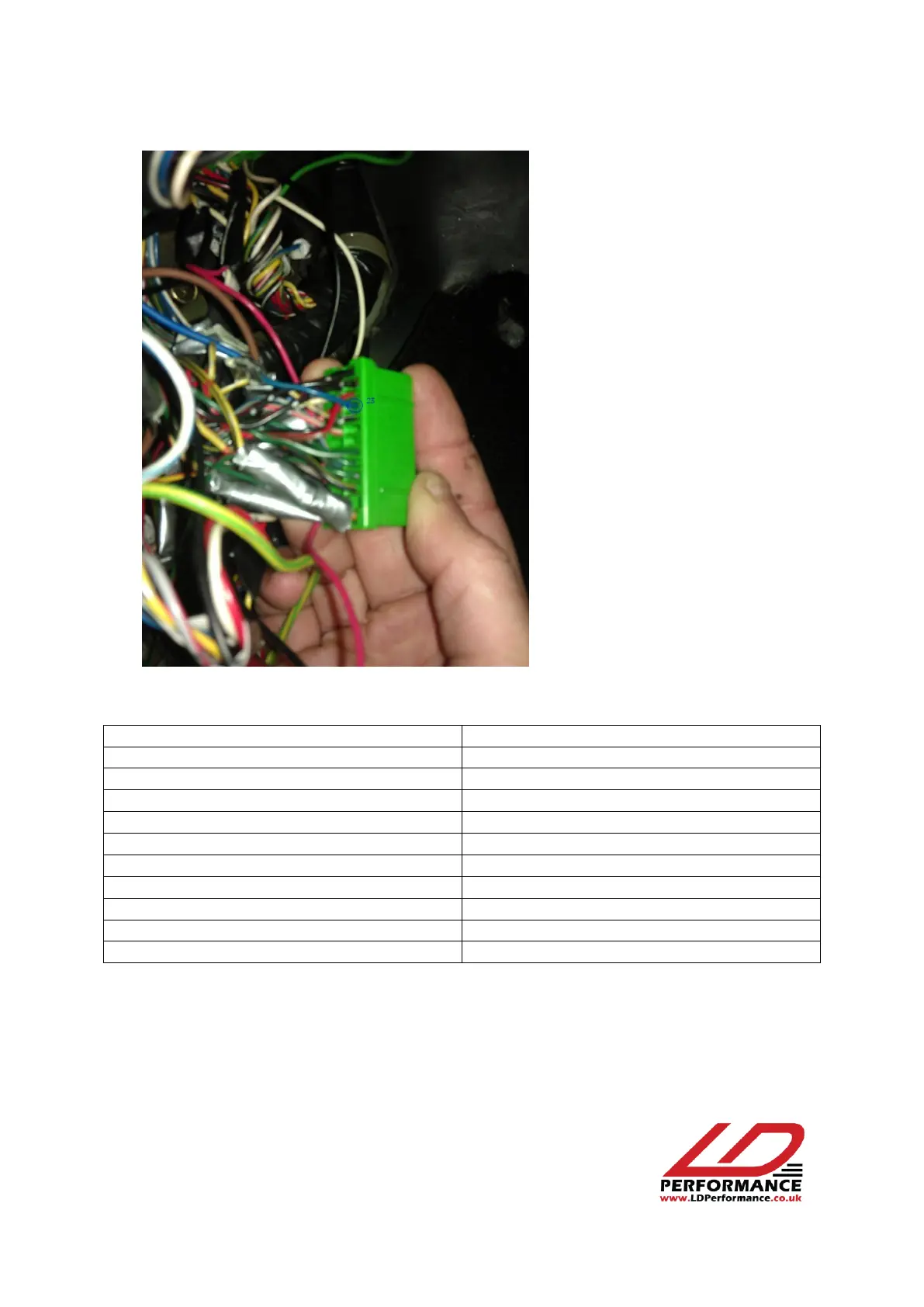

Pin 23 is right under pin 10
You need to cut these 3 wires and connect them to the launch control module in the following way:
Launch Control
Car
CH1 IN
Pin 10 (red) leading to ECU connector
CH1 OUT
Pin 10 (red) leading to harness (coil)
CH2 IN
Pin 11 (white) leading to ECU connector
CH2 OUT
Pin 11 (white) leading to harness (coil)
CH3 IN
Pin 23 (blue) leading to ECU connector
CH3 OUT
Pin 23 (blue) leading to harness (coil)
12V
Connect to 12V ignition on source
GND
Ground connection
Launch switch
To button mounted on clutch pedal
You can connect the GND wire to the bolt on the chassis.
