PAGE 10

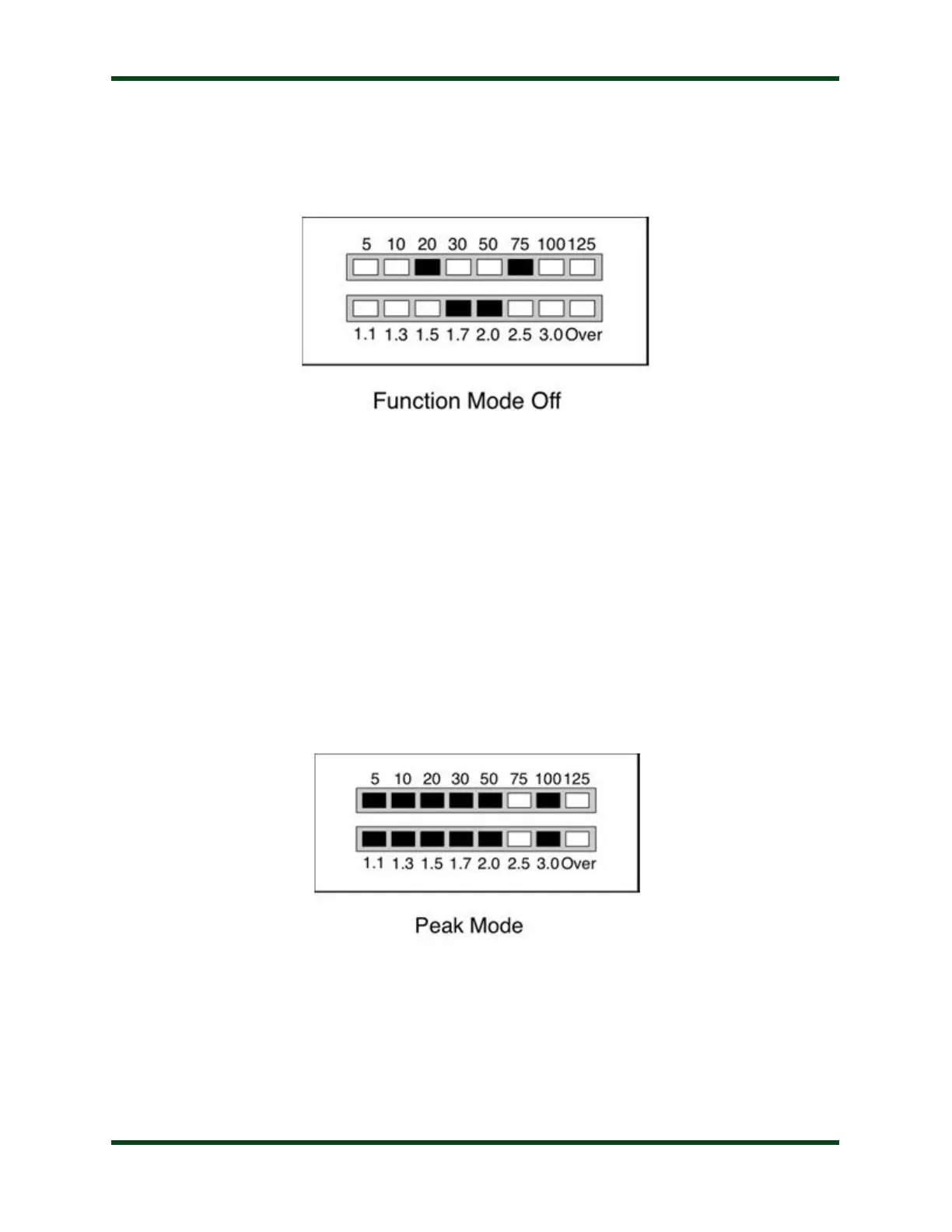

Function mode times-out after a few seconds if no other button is pushed. Alternately,
function mode can be cancelled by pressing the Func button again. In either case, when Function
mode is exited, a “down arrow” is displayed on the LED display:
Peak Mode On/Off: The Power display on the LED bargraph can display either average
power or peak forward power, in watts. Average mode is suitable for 100% duty cycle modes
such as FM, RTTY, or PSK. Peak mode is more useful on modes with varying duty cycle such as
SSB or AM. The factory default is average mode.
To toggle between power display modes, press Func -> C Up (Press and release Func, then
press and release C Up). Peak mode is indicated by a falling meter display, with the highest
power shown as an LED at 100 watts, and then slowly falls back to 30 watts before turning off.
Average mode shows the same display, but without the falling back LED showing. Press Func -
> C Up repeatedly to toggle between Peak and Average modes.
