PAGE 6

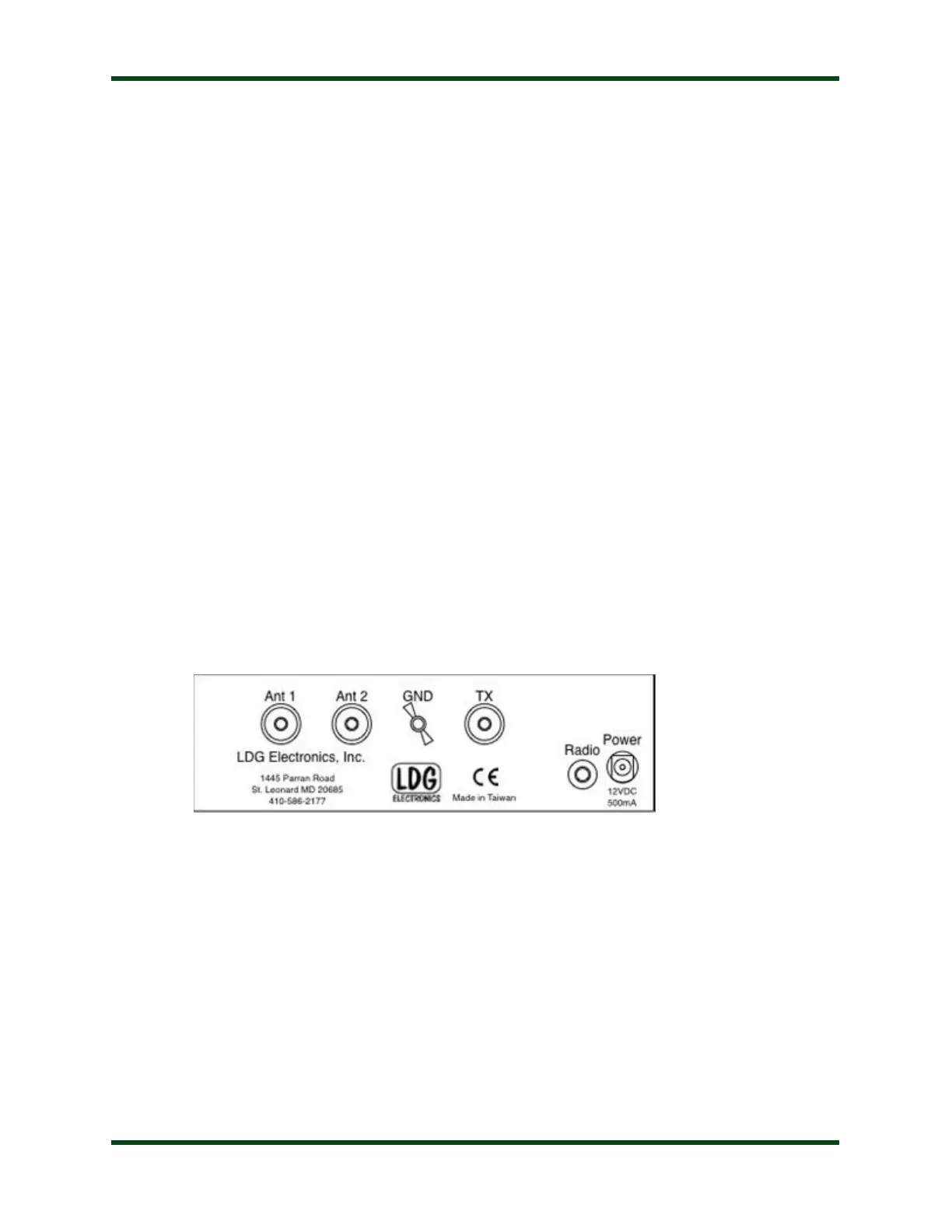

Back Panel:
The rear panel of the AT-100ProII has six jacks.
Ant 1: Connect a 50 ohm antenna coax feedline to this SO-239 connector.
Ant 2: Connect a second 50 ohm antenna coax feedline to this SO-239 connector.
Gnd (wing nut): Connect to the antenna system ground.
Tx: Connect a 50 ohm jumper coax from this jack to the ANT jack on the rear of the transceiver.
Radio: Connect the optional radio interface cable to a supported ICOM or Yaesu radio.
Power: Connect the supplied DC coaxial power cable to this connector, and connect to a source
of 11-16 VDC @ 500 mA. Center pin is positive.
