H2-506 Vector Easy Servo Drive User Manual Version 1.0
Leadshine Technology Co., Ltd
11/F, Block A3, iPark, No.1001 Xueyuan Blvd. Shenzhen, China Tel: 1-949-608-7270 Fax: 1-949-608-7298
Web: www.leadshine.com Email: tech@leadshine.com

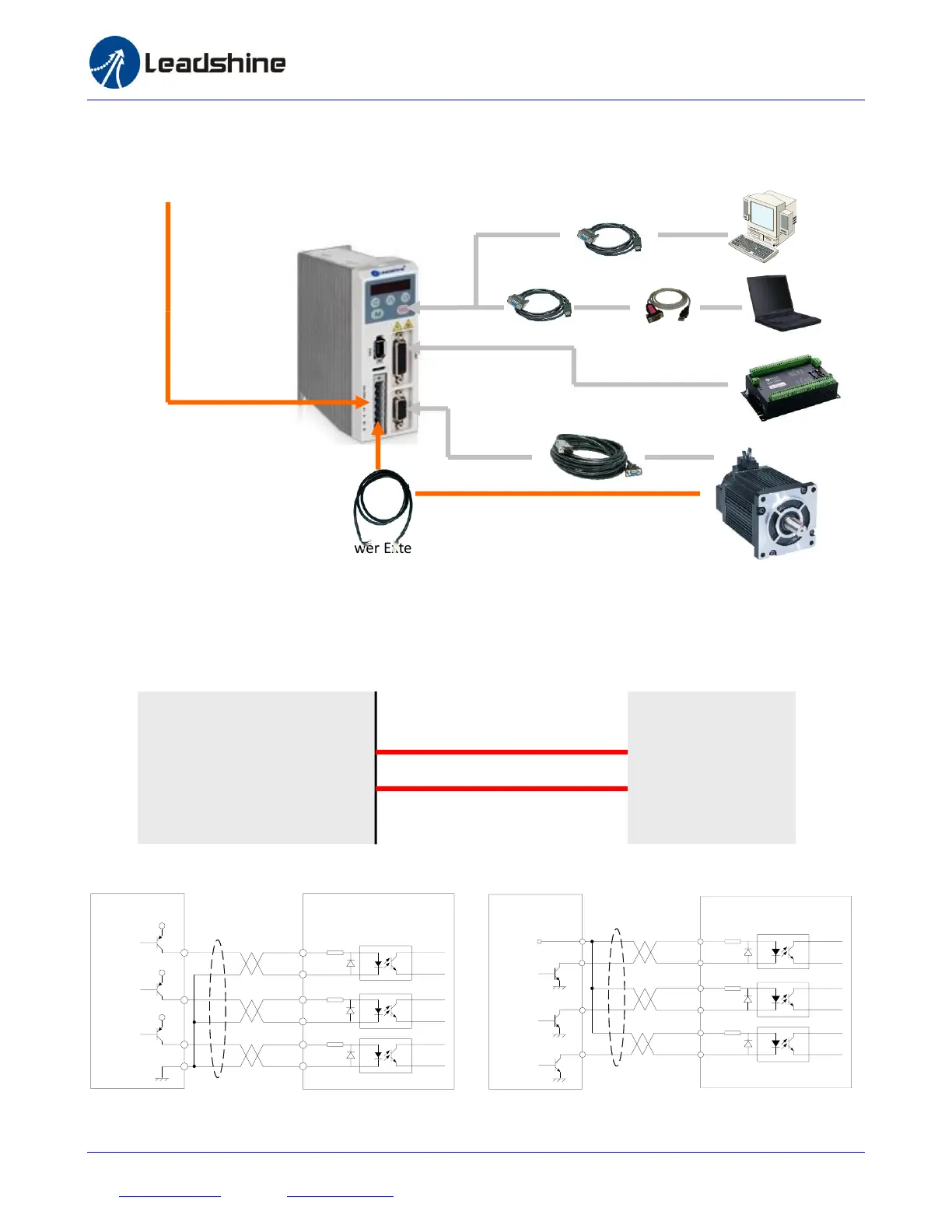

4.1Wiring Diagrams
4.1.1 Power Wiring
The H2-506 requires two powers input as follows. The main power is used to energize the motor and the control
power is used for logic circuit. Typically they can share the same AC power.
4.1.2 Control Signal Wiring
Drive
Controller
VCC
PUL-
PUL+
ENA-
PUL
DIR
ENABLE
DIR-
DIR+
ENA+
Drive
Controller
VCC
PUL-
PUL+
ENA-
PUL
DIR
ENABLE
DIR-
DIR+
ENA+
Connections to open-collector signal (common-anode) Connections to PNP signal (common-cathode)
Vdc
GND
Power input
DC Power
24-50VDC
Or
RS232 Cable
USB-232 Converter
Motion Controller
DC Power
24-50VDC
Encoder Extension Cable
Power Extension Cable
