2.2 I/O Interface Specifications
Parameters
H2-506
Command Input
Step/Direction, CW/CCW
Enable/Disable Input
Differential
Alarm Signal Output
Isolated OC Output
Encoder Signal Output
ABZ Output
Tuning Interface
On-board HMI or RS232 communication
Regeneration Resistor
Built-in ( 50 Ohm, 100W), Support External

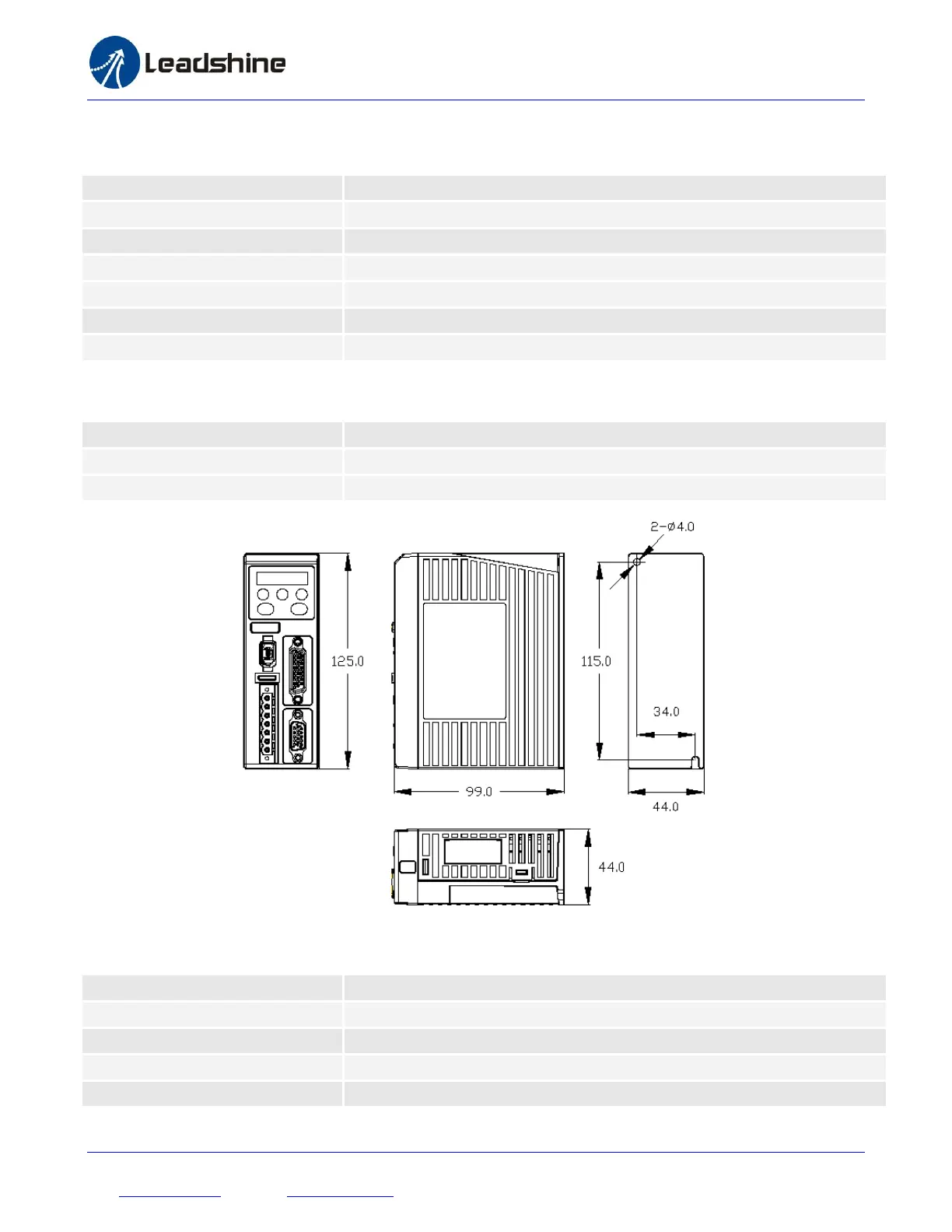

2.3 Mechanical Specifications
(unit: mm [1inch=25.4mm])
Parameters
H2-506
Size
125mm * 99mm* 44mm
Weight
280 g
2.4 Operating Environment
(T
j
= 25℃/77℉)
Cooling
Natural cooling or Forced cooling
Ambient Temperature
0 – 40 °C
Humidity
40% RH to 90% RH, No Condensation
Vibration
5.9 m/s
2
MAX
Storage Temperature
-20 °C to 65 °C
