Wiring Diagram (Continued)
Wiring Diagram of ES-D2306 and ES-MH3XXXX
Connecting Power Supply
ES-D508, ES-D808
The easy servo drives ES-D508 and ES-D808 can accept DC power input. They have only tow
wires-positive wire and negative wire for the power connection. However you need to pay attention
to wire polarity. A 6-pin pluggable screw connector is used for both power supply and motor
connection. Looking at the drive cover you should find the printed “+Vdc” and “GND” symbol.
Connect the positive wire to “+Vdc” terminal and connect the negative wire to “GND” terminal. Note
that the power should be switch when you make the connections. Note: Do not exceed the input
voltage range of the Easy Servo drive. Please consult Power Supply Selection chapter in the manual
for the recommended supply voltage.

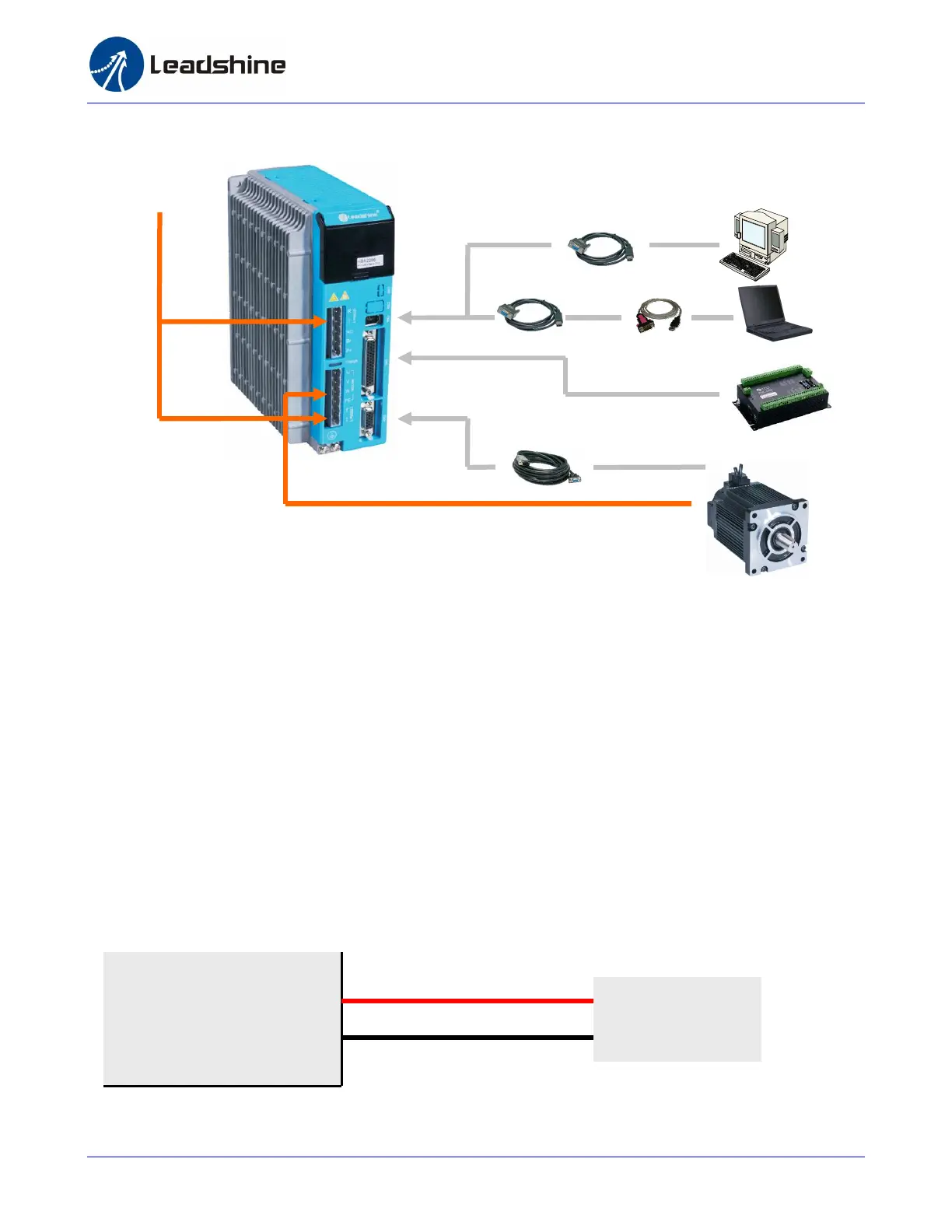

DC Power Connection of ES-D508 and ES-D808
Or
RS232 Cable
USB-232 Converter
Motion Controller
Encoder Cable
Motor Power Cable
AC Power
+Vdc
GND
High Voltage DC Power
+ (Positive)
To Next Page
