Connecting Motor
ES-D508 and ES-M323XX
The ES-M323XX has three wires: U, V and W. Just connect them to the corresponding terminals of the
ES-D508 as follows.

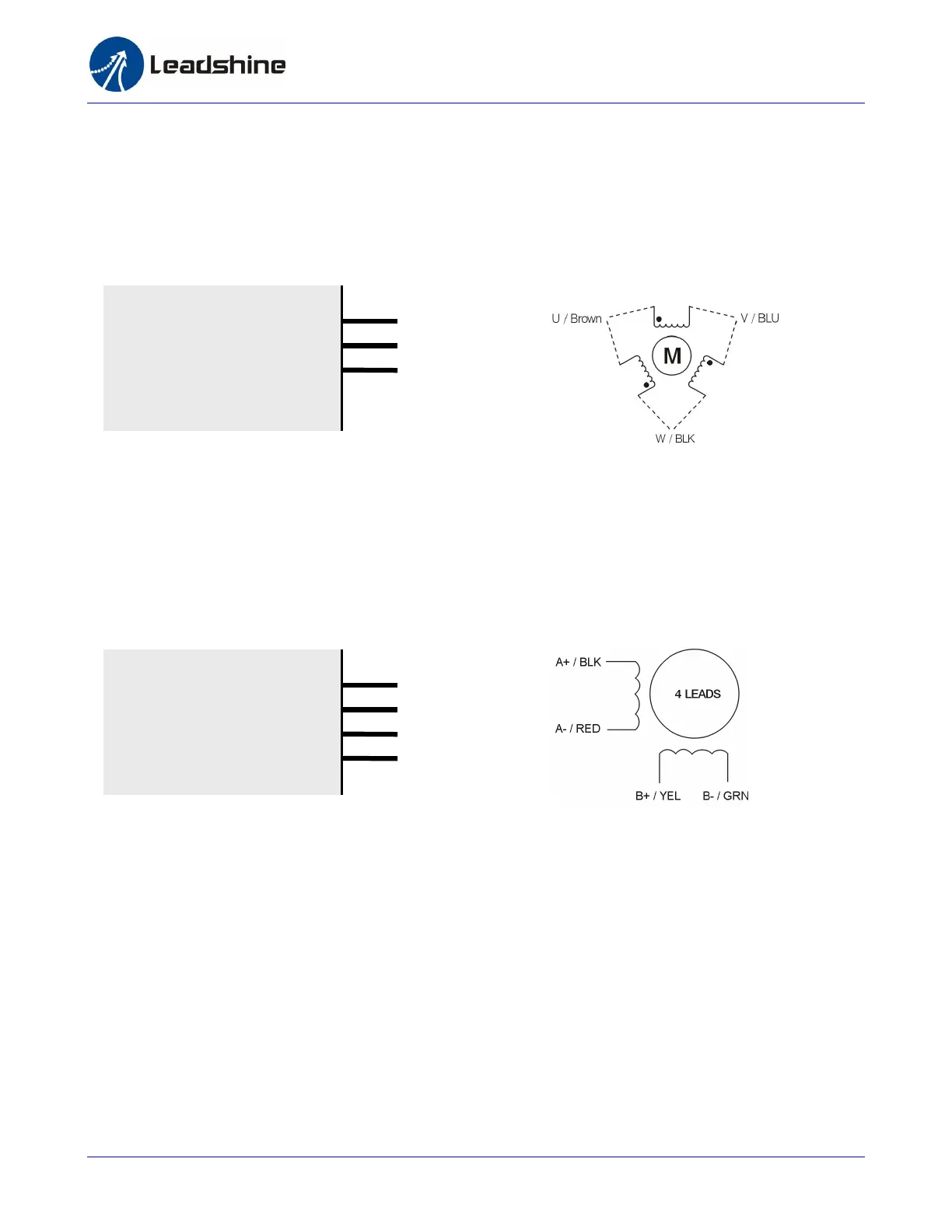

Connect ES-M323XX to ES-D508
ES-D808 and ES-M223XX
The ES-M223XX has four wires: A+, A-, B+ and B-. Just connect them to the corresponding terminals
of the ES-D808 as follows.
Connect ES-M223XX to ES-D808
A+
A-
B+
B-
ES-D808
A+
A-
B+
B-
ES
-
M223XX
U
V
W
ES
-
D508
U
V
W
ES
-
M323XX
