3
VALVE UNIT
INSTALLATION
Flawless operation can only be guaranteed if the device has been installed
following the installation instructions.
The warranty will become invalid if the device is installed incorrectly or removed.
The valve unit is a precision tool that must not be modified or removed.
Make sure that the installer has documented the details of the installation in the In
-
stallation certificate before you approve the installation. The installation certificate
can be found on the last page of this document.
HOW DOES LEAKOMATIC WORK?
The valve unit is installed in the inflow pipes and it protects the pressurised piping
system. The measuring unit constantly analyses water consumption by measuring the
amount of water that flows through the device. When the display is out of power, the
valve is open. If the valve is closed and a power failure occurs, the valve will open.
USER MANUAL

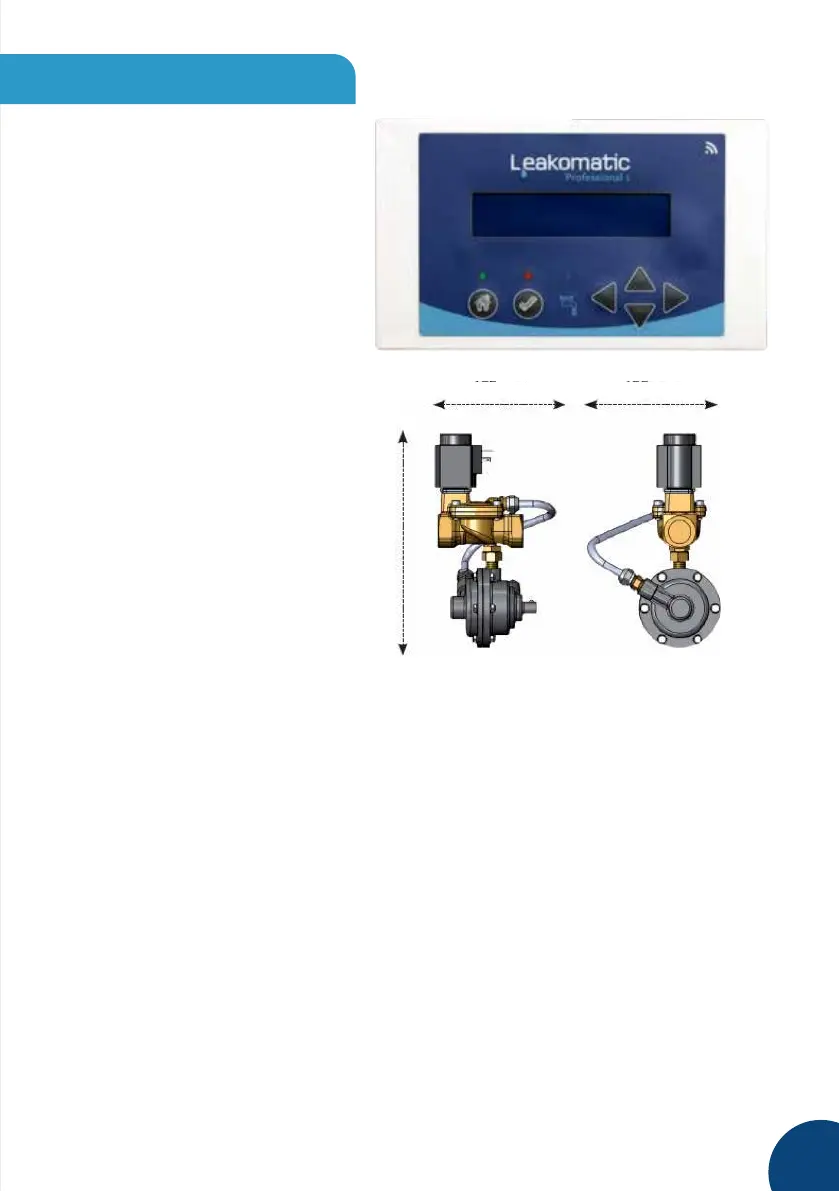

CONTROL UNIT
1. Screen
2. Mode indicator
3. Alarm/warning light
4. Flow indicator
5. Arrows
6. Mode button
7. Clear button
1
2 3 4
5
6 7
H
DW
