Set up of the operator
- Unscrew the two side screws and remove the cover (Fig. 5).
- Place the operator on the plate making sure that thebase
anchoring holes match with the slots (Fig. 6).
- Adjust the horizontal distance of the operator from the gate. Then
tighten firmly the two anchoring screws.
Rack assembling
- Unlock the operator by the key .provided
- Place the rack on the pinion. Make sure between the pinion and the
rack there is a 1 mm play (fig. 7).
- Fix the rack to the gate through suitable screws.
- Manually move the gate and check that 1 mm play is kept on all the
length of the rack.

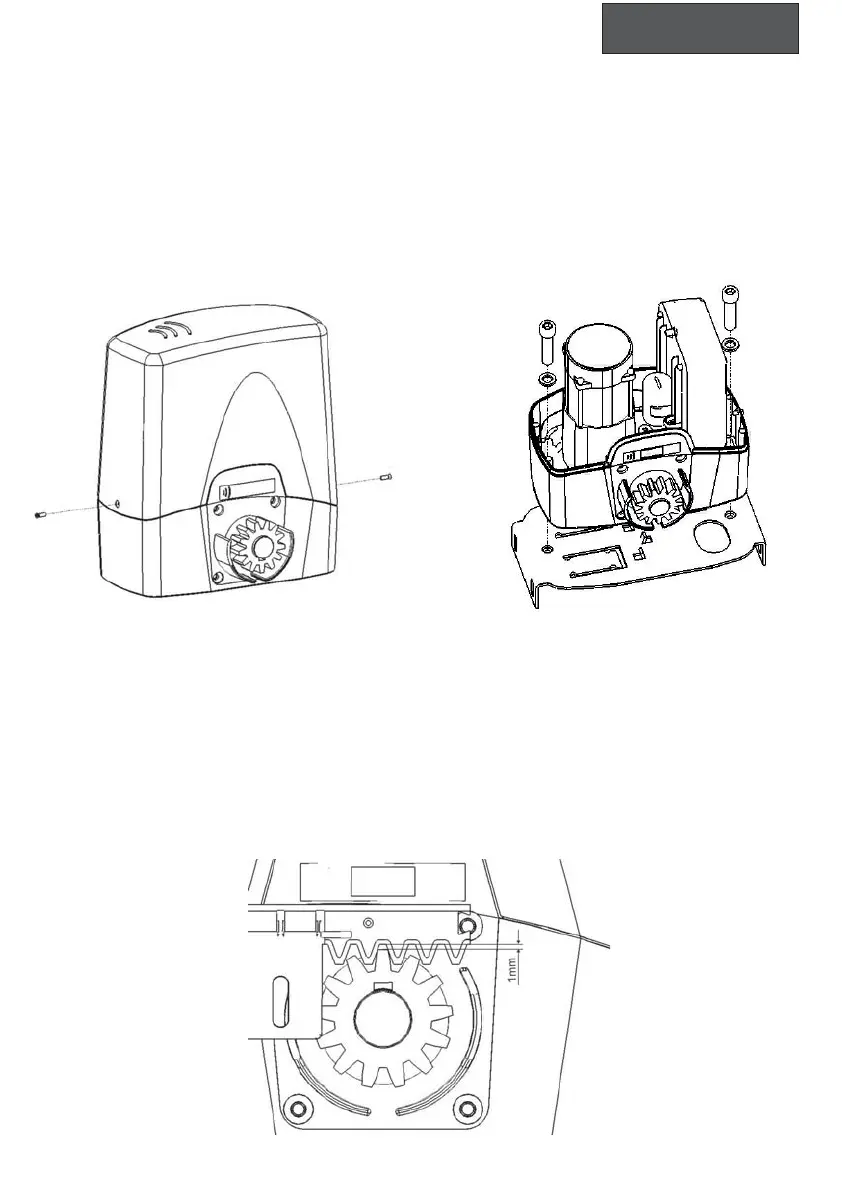

Fig. 5
Fig. 6
Fig. 7
