Warning! Electrical shock hazard!
• Electrical ground is required on this appliance.
• Do not connect to the electrical supply until appliance is
permanently grounded.
• Disconnect power to the junction box before making the
electrical connection.
• This appliance must be connected to a grounded, metallic,
permanent wiring system, or a grounding connector should
be connected to the grounding terminal or wire lead on the
appliance.
• Power supply line should avoid touching the crust sheet
metal of the electric oven. When they touch each other the
chances rise that the oven crust sheet metal will mangle the
insulated layer of the power supply line due to the high tem-
peratures.
• Do not use a gas supply line for grounding the appliance.

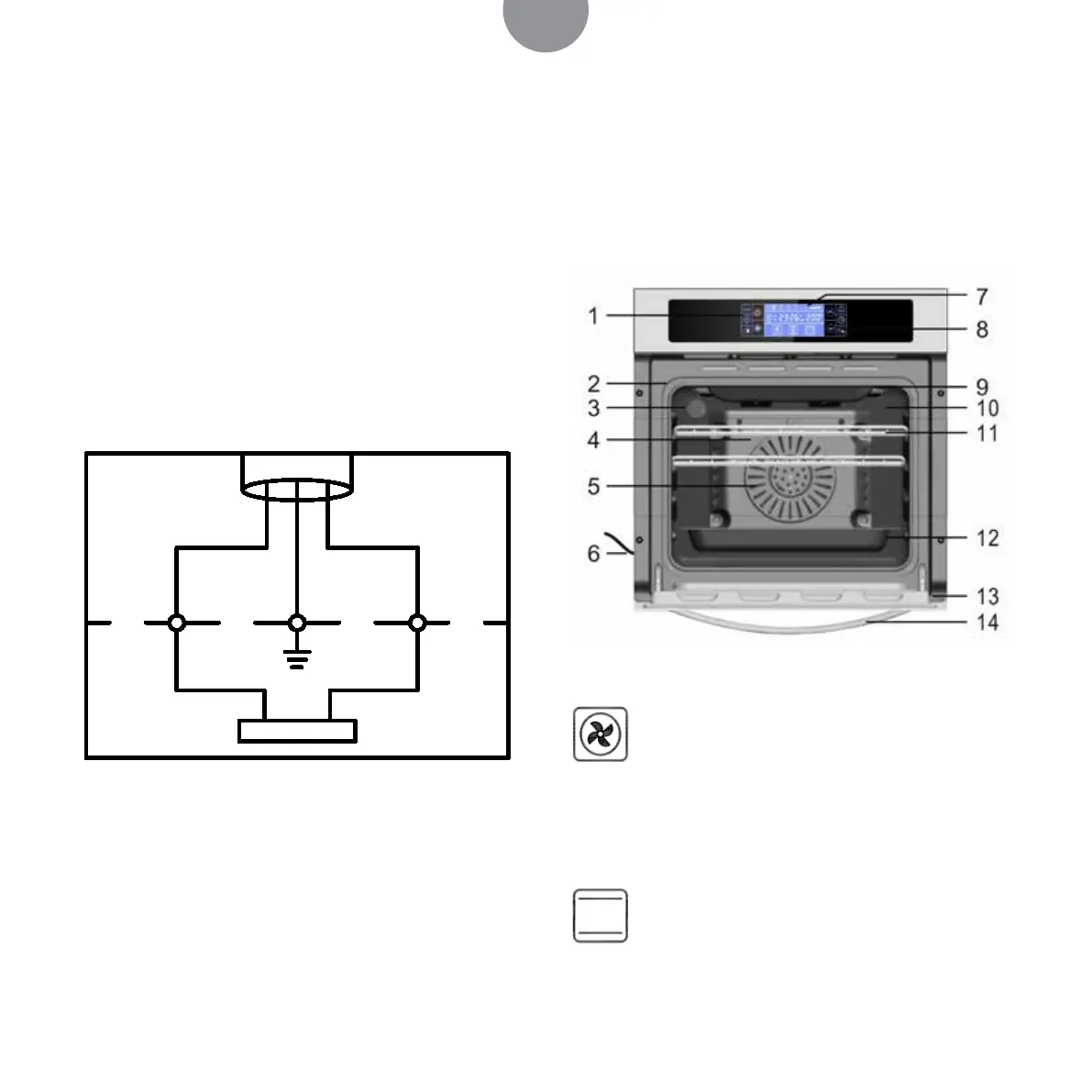

ELECTRICAL CONNECTION
POWER
CABLE
SIDE
AC220-240V 50Hz 3*1.5mm
2
Blue
Brown
Yellow
& Green
EARTH
GROUND
N
L
CUSTOMER
SIDE
APPLIANCE
USING THE OVEN
OVEN STRUCTURE 12 FUNCTIONS SERIES
1.Control panel
2.Gasket
3.Oven light
4.Convenction heating element
5.Convenction fan element
6.Supply cord
7.Display area
8.Touching set
9.Inside top heating element
10.Outside top heating element
11.Grill grid
12.Tray
13.Door element
14.Handles of oven door
OVEN FUNCTION 12 FUNCTIONS SERIES
FAN OVEN: This method of cooking uses the circular
element while the heat is distributed by the fan. This results in
a faster and more economical cooking process. The fan oven al-
lows food to be cooked simultaneously on dierent shelves, pre-
venting the transmission of smells and tastes from one dish onto
another.
CONVENTIONAL OVEN (top and lower element): This
method of cooking provides traditional cooking, with heat from
the top and lower elements. This function is suitable for roasting
and baking on one shelf only.
