LeCroy Waverunner2 LT584M

Rev. D Performance Verification 5-7
!
Recall
xxxP009.PNL

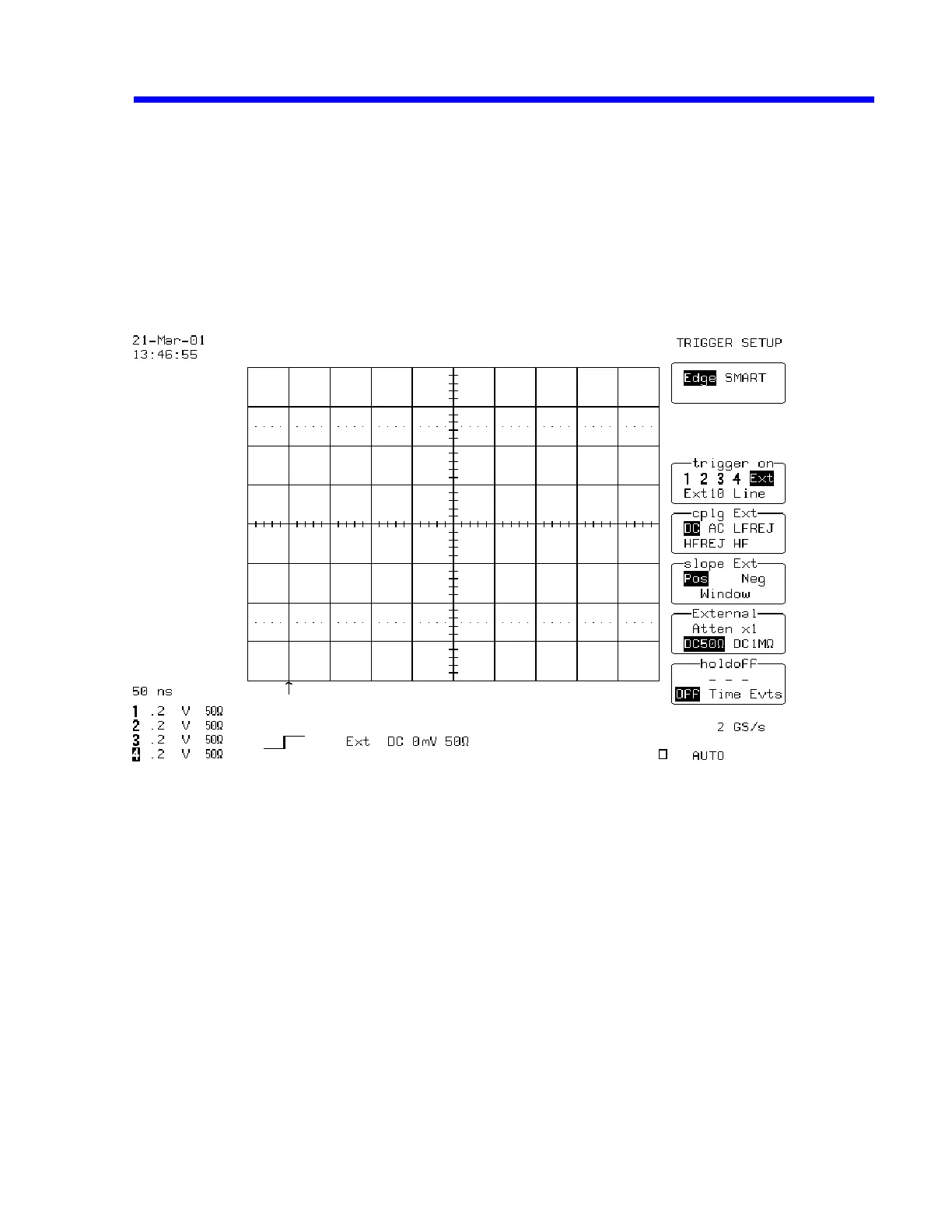

or configure the DSO:
Select Setup trigger
Trigger on :
EXT
External :
DC 50
Ω
ΩΩ
Ω
!
Connect the DMM to External, and measure the
input impedance
.
!
Record the input impedance in Table 2, and compare the result to the limit in
the test record.
