LeCroy Waverunner2 Series

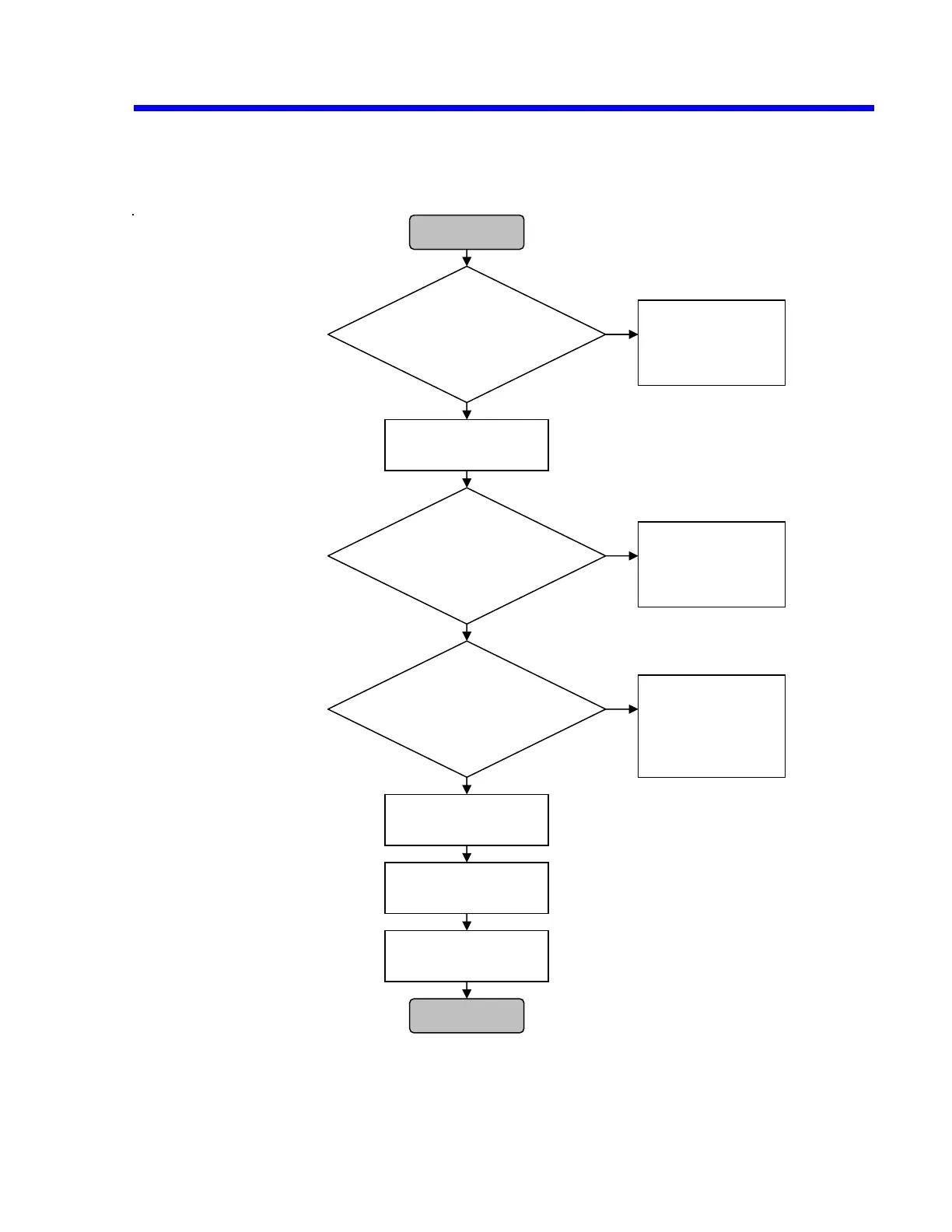

6.5.7 Front Panel Controls Do not Operate
A
re Power Supply
Voltages on CPU
Board P11
Correct ?
See Power
Supply Problem.
A
re Power Supply
Voltages Correct
on CPU Board J6
#4,5 ?
Replace CPU
board.
Do a General Reset.
Is Flat Cable to
Panel Correctly
Installed ?
Replace CPU board.
Replace Front
Panel.
Y
N
Y
N
Y
N
Replace Main
Board.
End
Reseat or
Replace Flat
Cable from CPU
board J6.
Start
Maintenance 6-11
