7-4 Mechanical Parts & Removal

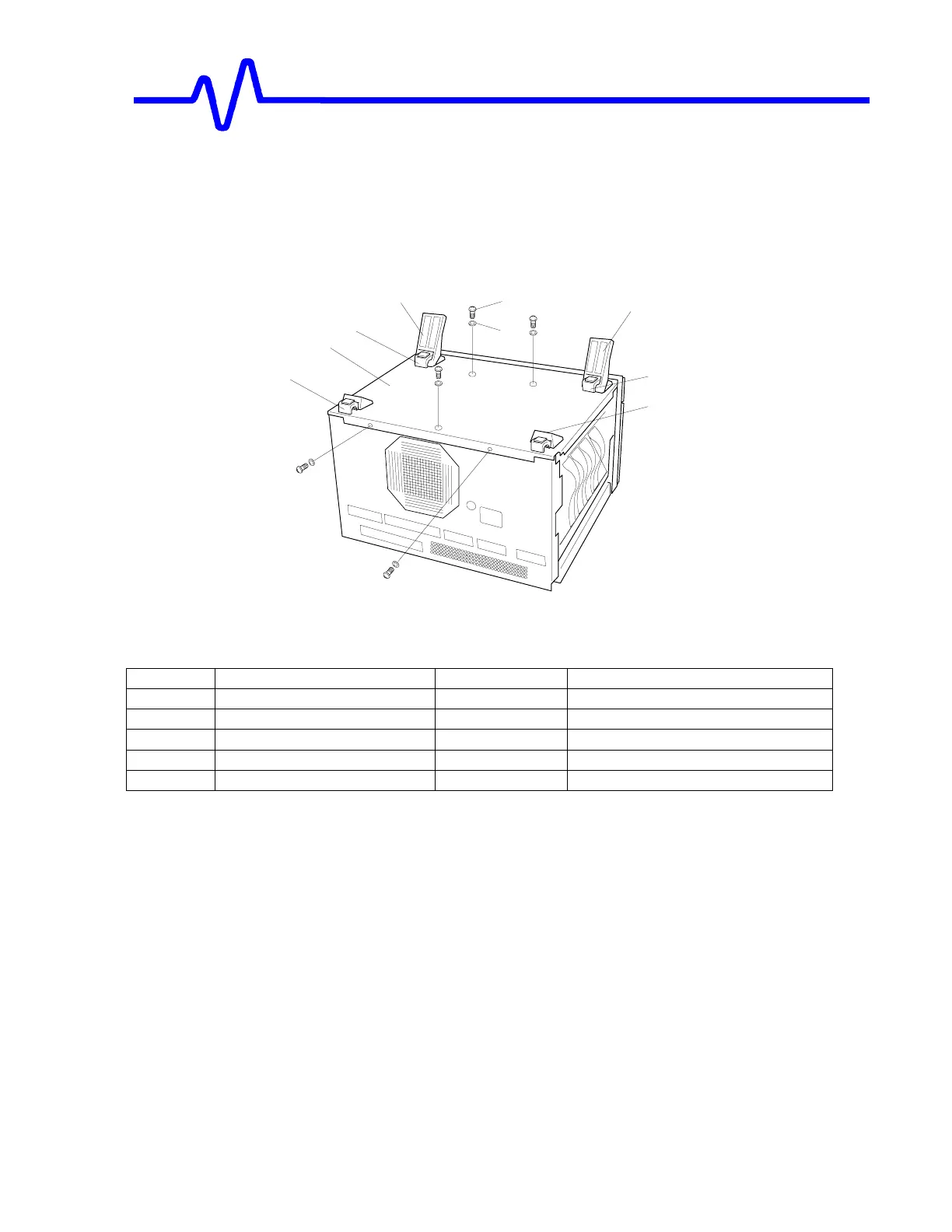

B. Removal of the Bottom Cover Assembly
• Remove the upper cover.
• Remove the five M3 x 6 screws (with nylon washer, 3 on the bottom/2 on the rear).
4
5
3
2
1
3
2
2
2
Bottom Cover Replaceable Parts
Item IWATSU Part Number Quantity Description
1 KBA786921 1.0 BOTTOM COVER LE
2 KAS137811 4.0 BOTTOM FOOT ASSY
3 KCM131421 2.0 Rotor for the tilt stand
4 MKB130062 5.0 Screw M3x6
5 MPW930000 5.0 Washer W-3, nylon
