G. Removal of the Power Supply Assembly
Remove the upper and bottom covers.
Remove the processor assembly.
Remove the main assembly.

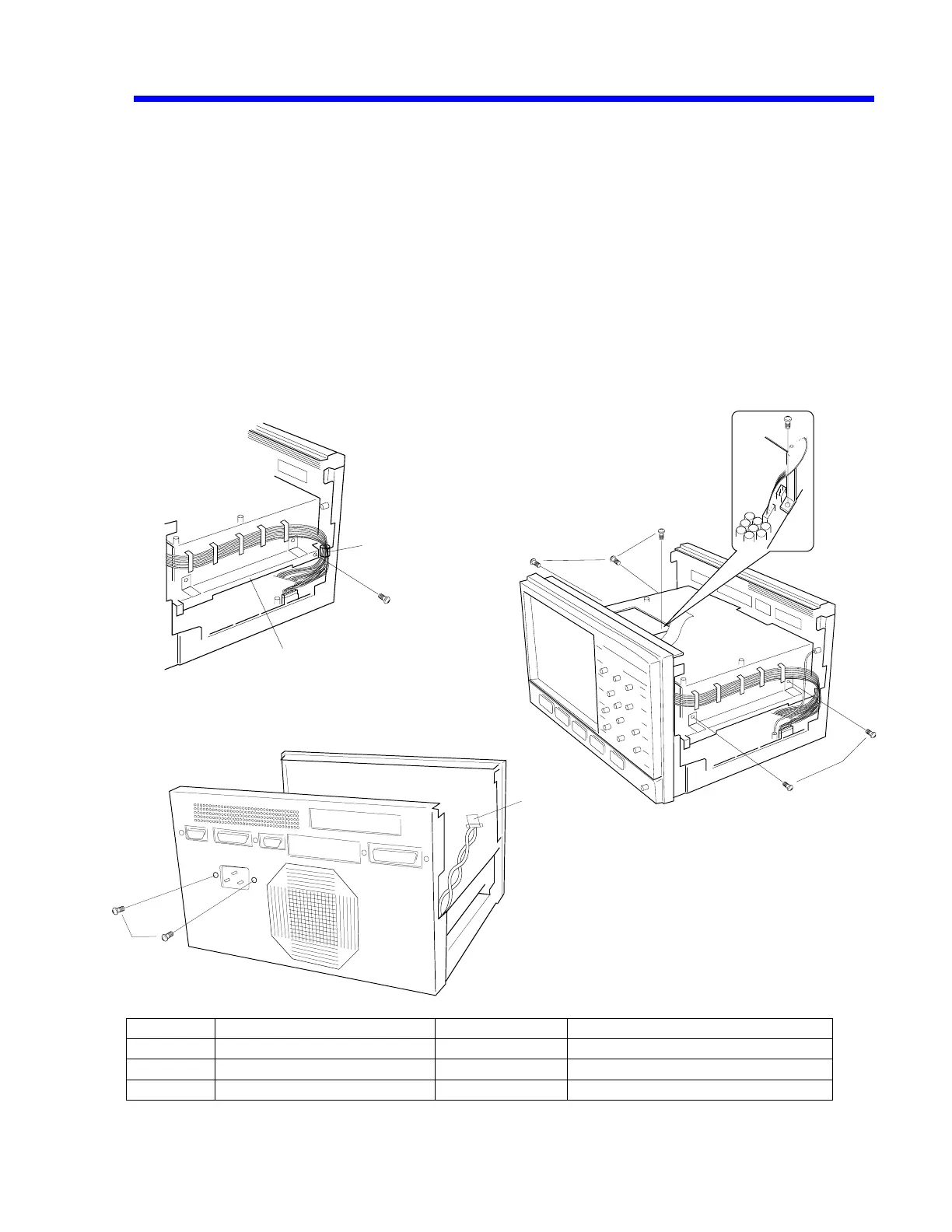

• G1 : Remove the Harnessing belt on the main frame.
• G2 : Remove the connector (CN7) on the Power board from the fan.
• G2, G3 : Remove the seven M3 x 8 screws (2 on the rear inlet/4 on either side/1 on the
top).
[G1] [G3]
[G2]
2
2
2
2
To CN7
2
1
Main frame
Power Board Replaceable Parts
Item IWATSU Part Number Quantity Description
1 MHK001541 1.0 Harnessing belt SL-9N
2 MKB130082 8.0 Screw M3x8
3 21302-5615 1.0 Power Board ASSY
Mechanical Part & Removal 7-13
