LeCroy Waverunner2 Series User Manual

5-6 Performance Verification Rev. D
a. DC 1M
Ω
ΩΩ
Ω
!
Recall
xxxP007.PNL

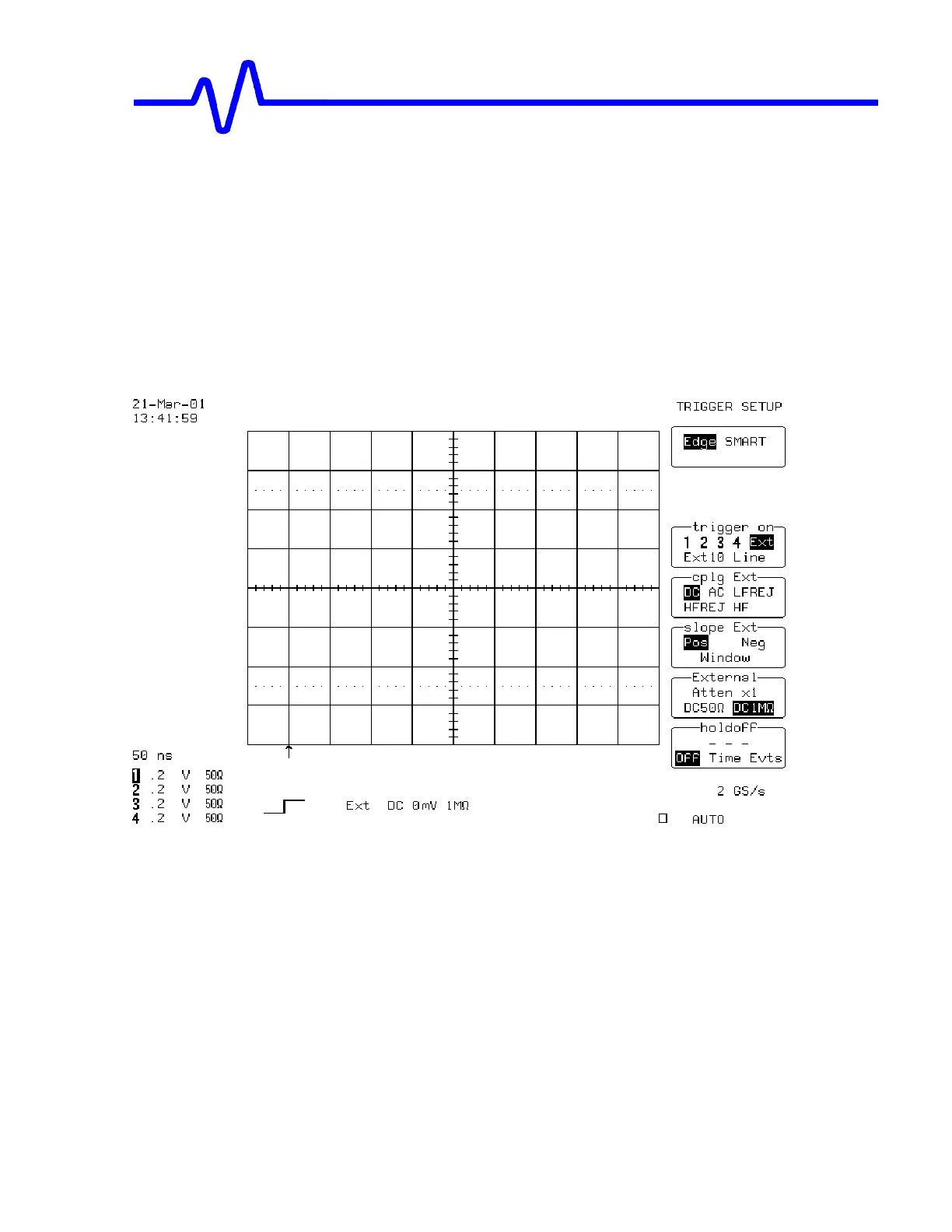

or configure the DSO :
Trigger mode :
Auto
Select Setup trigger
Trigger on :
EXT
Cplg Ext :
DC
External :
DC 1M
Ω
ΩΩ
Ω
Time base :
50 nsec/div.
!
Connect the DMM to External, and measure the
input impedance
.
!
Record the input impedance in Table 2, and compare it to the limits.
!
Recall
xxxP008.PNL
or set trigger to Ext/10
!
Measure the
input impedance
.
!
Record the test result in Table 2, and compare the result to the limits in
the test record.
b. DC 50
Ω
ΩΩ
Ω
