Acquisition Status
For each general category of oscilloscope operation, you can view a summary of your setups. These dialogs are
not accessible through the Utilities menu, but are instead accessed from the menu bar drop-down menus. The
categories are as follows:
• Vertical - select Channels Status . . . from drop-down menu
• Timebase - select Acquisition Status . . . from drop-down menu
• Trigger - select Acquisition Status . . . from drop-down menu
• Math - select Math Status . . . from drop-down menu
In addition to these dialogs, summaries are also provided for XY setups, memory (M1-M4) setups, and time
stamps for sequence mode sampling.
Service
This button provides access to service dialogs, which are for the sole use of LeCroy service personnel. A security
code is required to gain access.

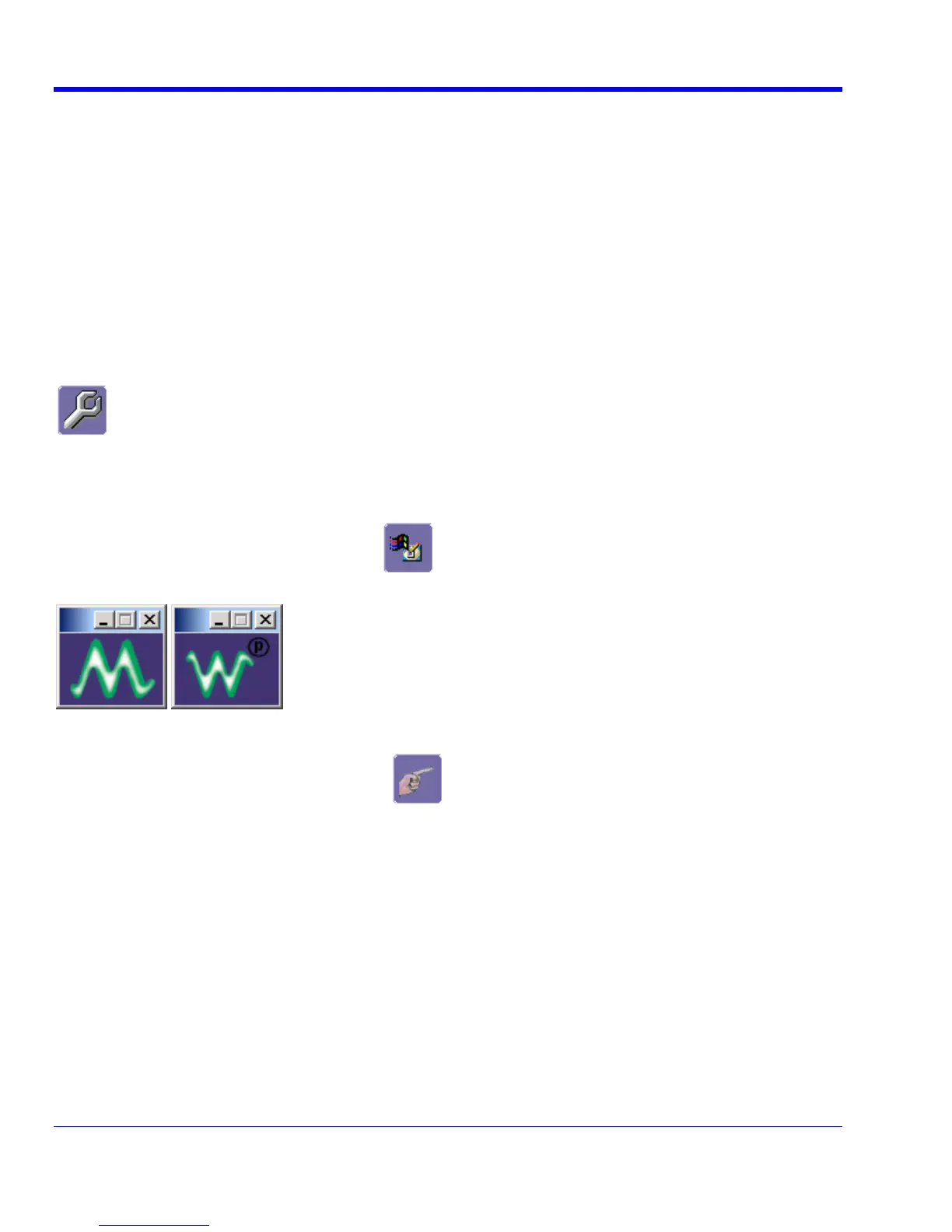

Show Windows Desktop
Touching the Show Windows Desktop button in the main Utilities dialog minimizes the instrument
application to reveal the underlying desktop. To maximize the application, touch the appropriate shortcut icon:
.
Touch Screen Calibration
Touching the Touch-Screen Calibration button starts the calibration procedure. During the procedure,
you will be prompted to touch the center of a small cross in 5 key locations on the touch screen. Because
sufficient accuracy cannot be achieved using your finger, use a stylus instead for this procedure. The calibration
has a ten-second timeout in case no cross is touched.
To avoid parallax errors, be sure to place your line of sight directly in front of each cross before touching it.
