Four Channel Digital Receiver
Rio Rancho, NM
15

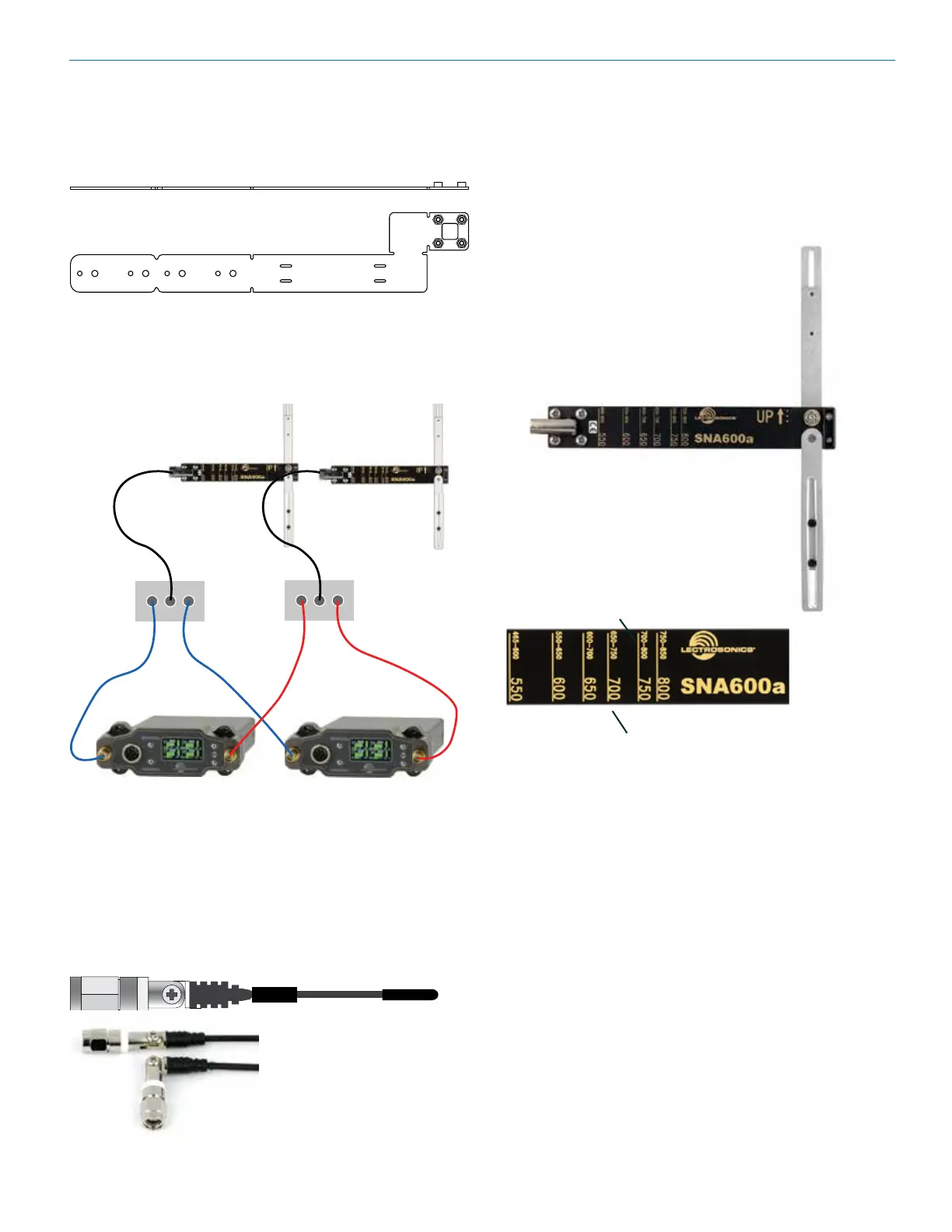

SNA600A Omni Dipole Antenna
The SNA600a antenna is a versatile tool for use with
wireless microphone receivers or IFB transmitters. The
center frequency of its 100 MHz bandwidth is tunable
from 550 to 800 MHz; however, the roll-o above and be-
low this band is gradual. The SNA600a measures lower
than a 2:1 SWR (Standing Wave Ratio) from 465 MHz to
850 MHz when the antenna arms are fully extended.
Half-Power (-3 dB) Points
Antenna Scale
Center Frequency
A “bendable” mounting strap is included that allows
vertical orientation on a variety of surfaces. Several other
adapters are also available for temporary or xed instal-
lations.
This is one example of using two splitters to feed two
receivers.
Use Lectrosonics P/N 21770 BNC (F) to SMA (M) adapter;
Pomona P/N 4290
SNA600A
COAXIAL
CABLE
ZSC24
SPLITTER
AMJ Jointed Antenna
The AMJ antenna is a general purpose design with a
hinged joint that pivots in both directions for positioning
the whip at any desired angle. The pivot allows the whips
to be oriented vertically regardless of the mounting posi-
tion of the receiver.
The hinged joint pivots in both directions
