Lectrosonics DSR4 - Specialty Adapters and Cables

DSR4
LECTROSONICS, INC.
20

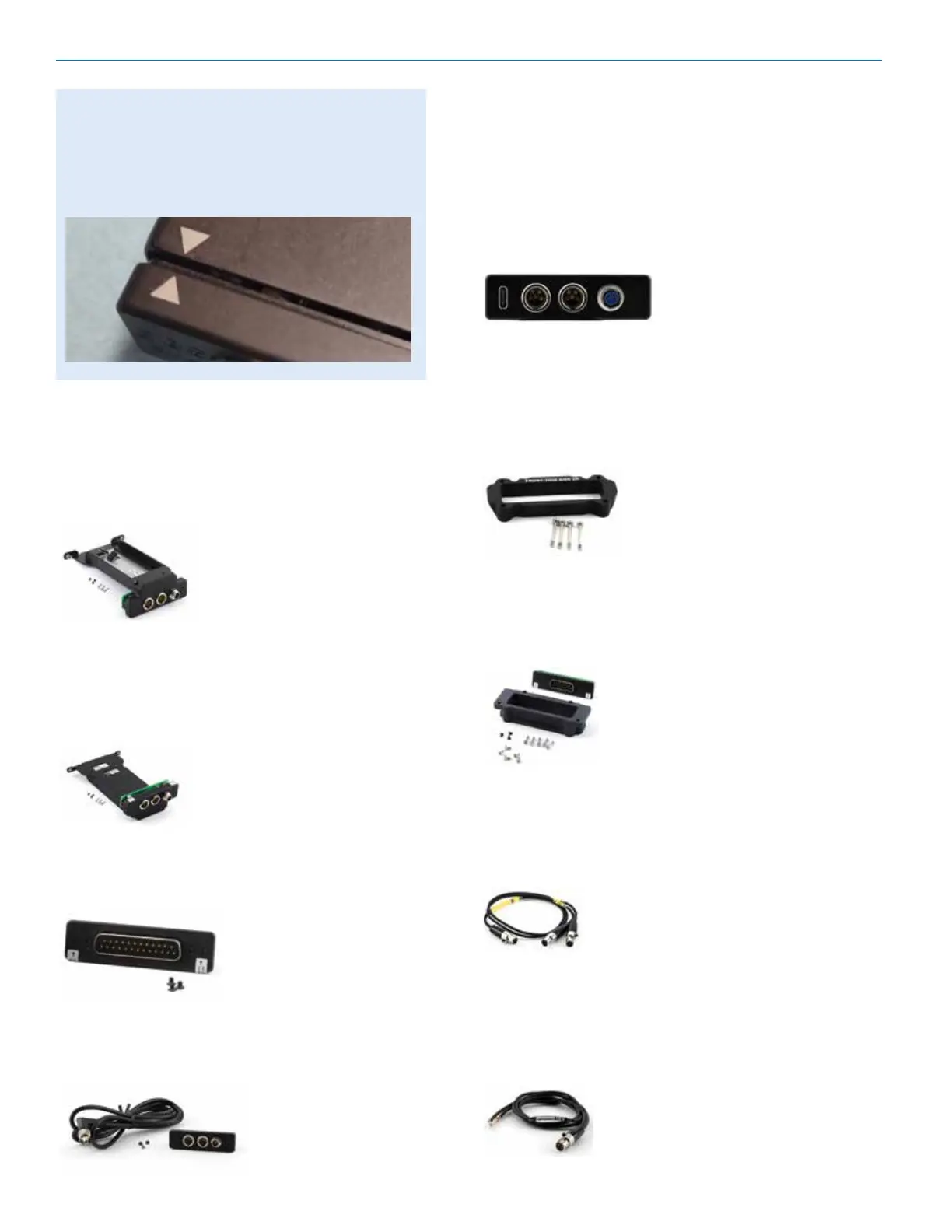

Aligning Specialty Adapters
Per customer suggestion, we have incorporated
alignment marks into our DSR4 adapters and
battery sleds. You can easily conrm that the units
are aligned correctly by the “bowtie” shape of the
engravings.
DSR4BATTSLEDTOP
A “battery sled” that positions the battery on top of
the receiver for mounting on the top of the camera
with the LCD and rear panel nomenclature oriented
correctly. Two TA5 audio connectors and one DC
coaxial connector.
DSR4BATTSLEDBOTTOM
A “battery sled” that positions the battery on
the bottom of the receiver for mounting on the
bottom of the camera with the LCD and rear panel
nomenclature oriented correctly. Two TA5 audio
connectors and one DC coaxial connector.
DSR4DB25
DSR4 Superslot adapter connector plate for Sound
Devices SL-2. This includes the adapter plate only
with the two mounting screws plus one extra screw.
DSR4EXT
Adapter kit for DSR4 receiver, two TA5 audio output
jacks, locking power connector, includes 6’ power
cord. Has spare mounting screws in dummy holes in
adapter.
DSR4EXTUSB Adapter
This kit includes an output and power panel with two
TA5 male balanced output pairs, and a locking Hirose-4
DC power jack. A USB-C jack allows for connection of
the DSR4 to Wireless Designer for monitoring, channel
setup, scanning, and frequency coordination. Firmware
updates must be done with the USB Micro B connector
on the top panel of the unit. Power cord not included;
order PS200A or use equivalent.
DSR4OCTOSPACER
DSR4 mounting bezel (bezel is P/N 36016) kit with 4
screws (P/N 28979) for Octopack and Quadpack, no
connector included. WARNING: Do not use Hirose
4 DC connector on the Octopack when mounting
DSR4 receivers.
DSR4SUPER
DB-25 bottom plate adapter for DSR4 receivers used in
SuperSlot docks. This includes: The end plate adapter,
black bezel (PN 27315-1), gasket and hardware set.
MCTA5TA3F2
Audio cable for portable digital receivers, TA5F to two
TA3F connectors, 18” cable. For two analog balanced
receiver outputs, or two AES digital pairs (four audio
channels), into mixer or recorder inputs.
MCTA5TPT2
Audio cable for portable digital receivers, TA5F to two
stripped and tinned wires, 18” cable. For two analog
balanced receiver outputs, or two AES digital pairs (four
audio channels).
