Leeson 174621 - Page 11

All
three-phase
models
(3/PE AC)
10
Installation

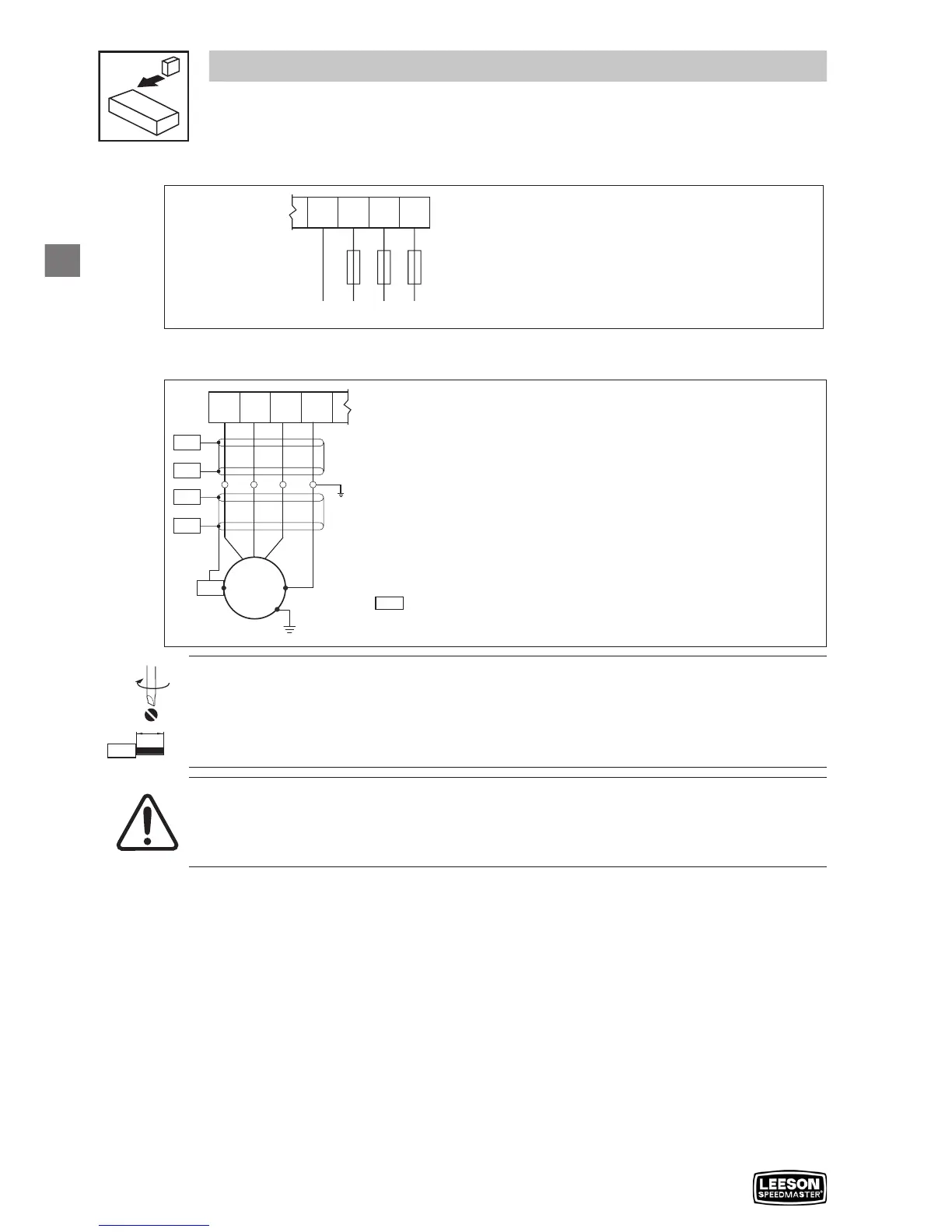

3.2.1.3 Mains connection to Three-Phase Supply
PE L1 L2 L3
PE L1 L2 L3
3.2.1.4 Motor Connection
U/
T1
V/
T2
W/
T3
PE
PES
PES
M
3~
PE
PES
PES
PES
PE
PES = Protective Earth Shielding
Mains and Motor Terminations
12 lb-in (1.3 Nm)
0.25 in (6mm)
WARNING!
Leakage current may exceed 3.5 mA AC. Minimum size of the protective earth
conductor shall comply with local safety regulations for high leakage current equipment.
