Leeson 174621 - Installation; Dimensions and Mounting

174603 - 174608,
174620 - 174621,
174631
174609 - 174614,
174622 - 174624,
174632 - 174633
174615, 174625,
174634
174616 - 174617,
174626 - 174627,
174635 - 174636
Drives must not be installed where subjected to adverse environmental conditions
such as: combustible, oily, or hazardous vapors or dust; excessive moisture; excessive
vibration or excessive temperatures. Contact LEESON for more information.
8
Installation
3 Installation

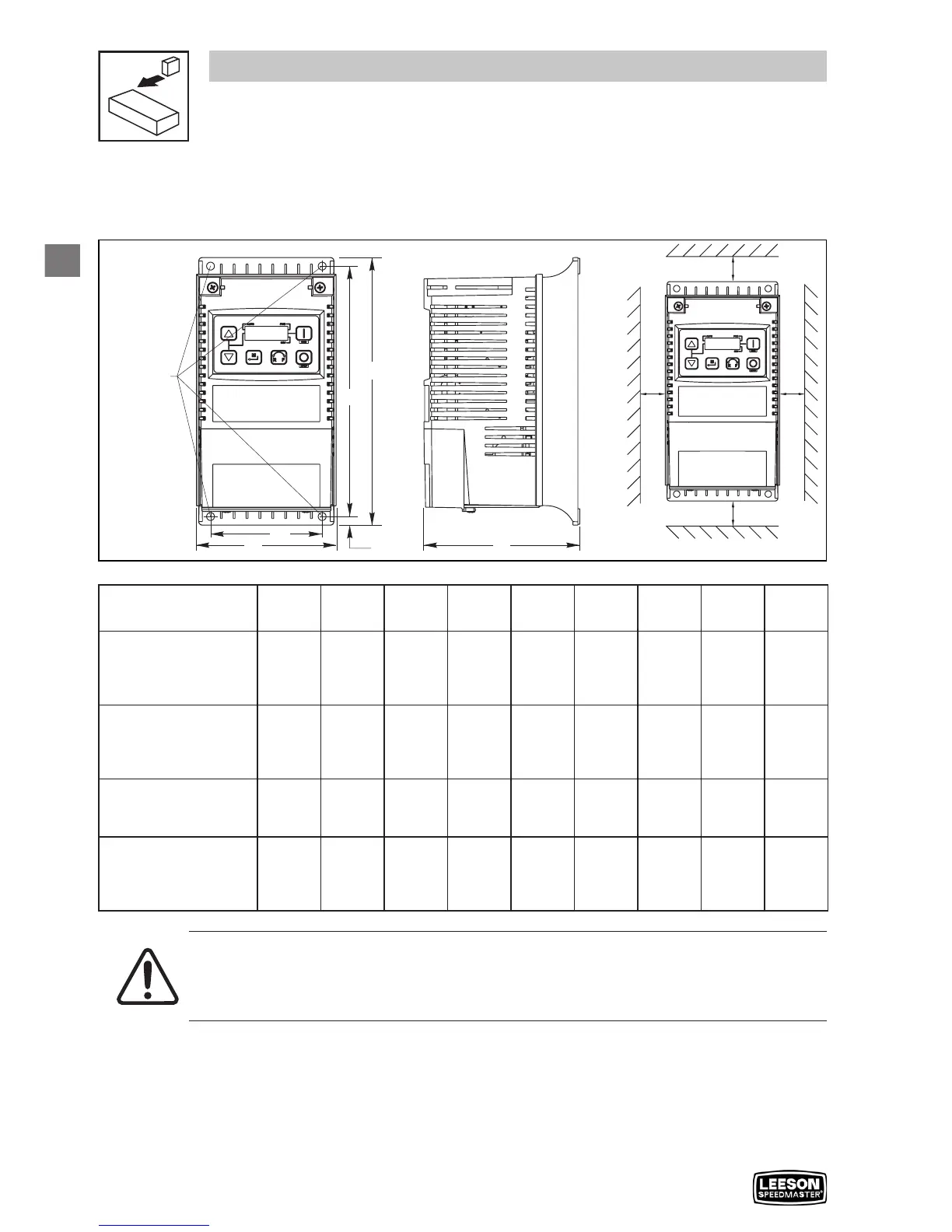

3.1 Dimensions and mounting
b1
a1
a
b
c
b2
mm (in)
4 X #10
18 lb-in
4 X M5
20 Nm
( )
s1 s1
s2
s2
V0102
Type
a
in (mm)
a1
in (mm)
b
in (mm)
b1
in (mm)
b2
in (mm)
c
in (mm)
s1
in (mm)
s2
in (mm)
m
lb (kg)
3.90
(99)
3.10
(79)
7.50
(190)
7.00
(178)
0.25
(6)
4.35
(110)
0.6
(15)
2.0
(50)
2.0
(0.9)
3.90
(99)
3.10
(79)
7.50
(190)
7.00
(178)
0.25
(6)
5.45
(138)
0.6
(15)
2.0
(50)
2.8
(1.3)
3.90
(99)
3.10
(79)
7.50
(190)
7.00
(178)
0.25
(6)
5.80
(147)
0.6
(15)
2.0
(50)
3.2
(1.5)
5.12
(130)
4.25
(108)
9.83
(250)
9.30
(236)
0.25
(6)
6.25
(159)
0.6
(15)
2.0
(50)
6.0
(2.0)
Warning!
