13.2.3 MICRO SERIES DISPLAY IN FAULT MODE

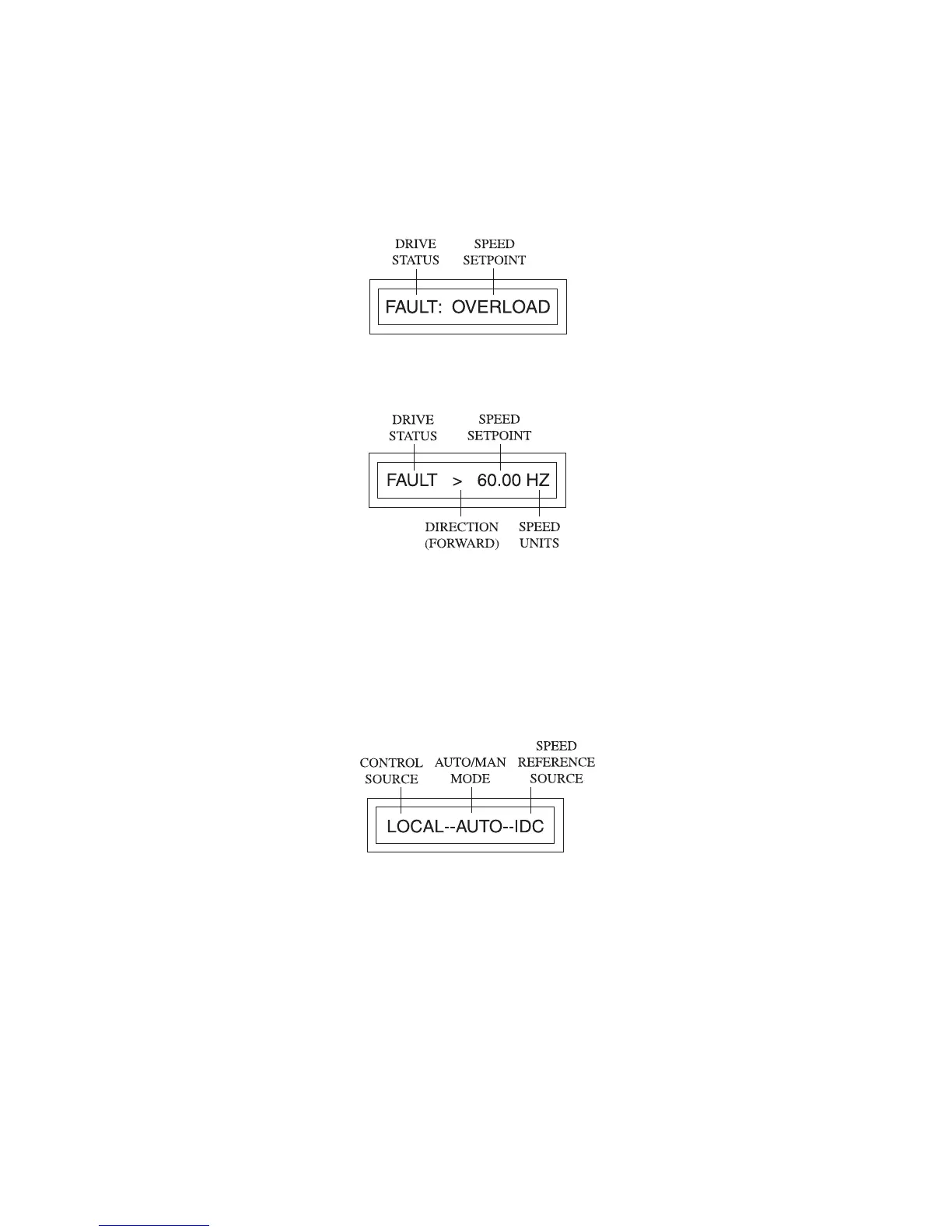

When the drive trips on a fault, the display will automatically change to the FAULT display, which indicates

the FAULT MESSAGE:

In FAULT mode, the ENTER key will toggle the display between four screens: FAULT, SPEED, % LOAD

and VAC. The DRIVE STATUS for these displays will be FAULT. An example is shown below of the drive

in the FAULT mode displaying SPEED.

NOTE: To clear a FAULT, press the STOP key, issue a remove STOP command at TB-1, or use TB-13D

(refer to Parameter 50-TB13D).

13.2.4 MICRO SERIES DISPLAY IN AUXILIARY MODE

If the ENTER key is held down, the display will change to the auxiliary status screen, which indicates the

control source (LOCAL, REMOTE, or SERIAL), AUTO or MANUAL mode, and the speed reference

source. When the ENTER key is released, the display will return to the previous screen. An example of the

auxiliary status screen is shown below:

Leeson 174928 User Manual
