Legend LE2833 User Manual

6

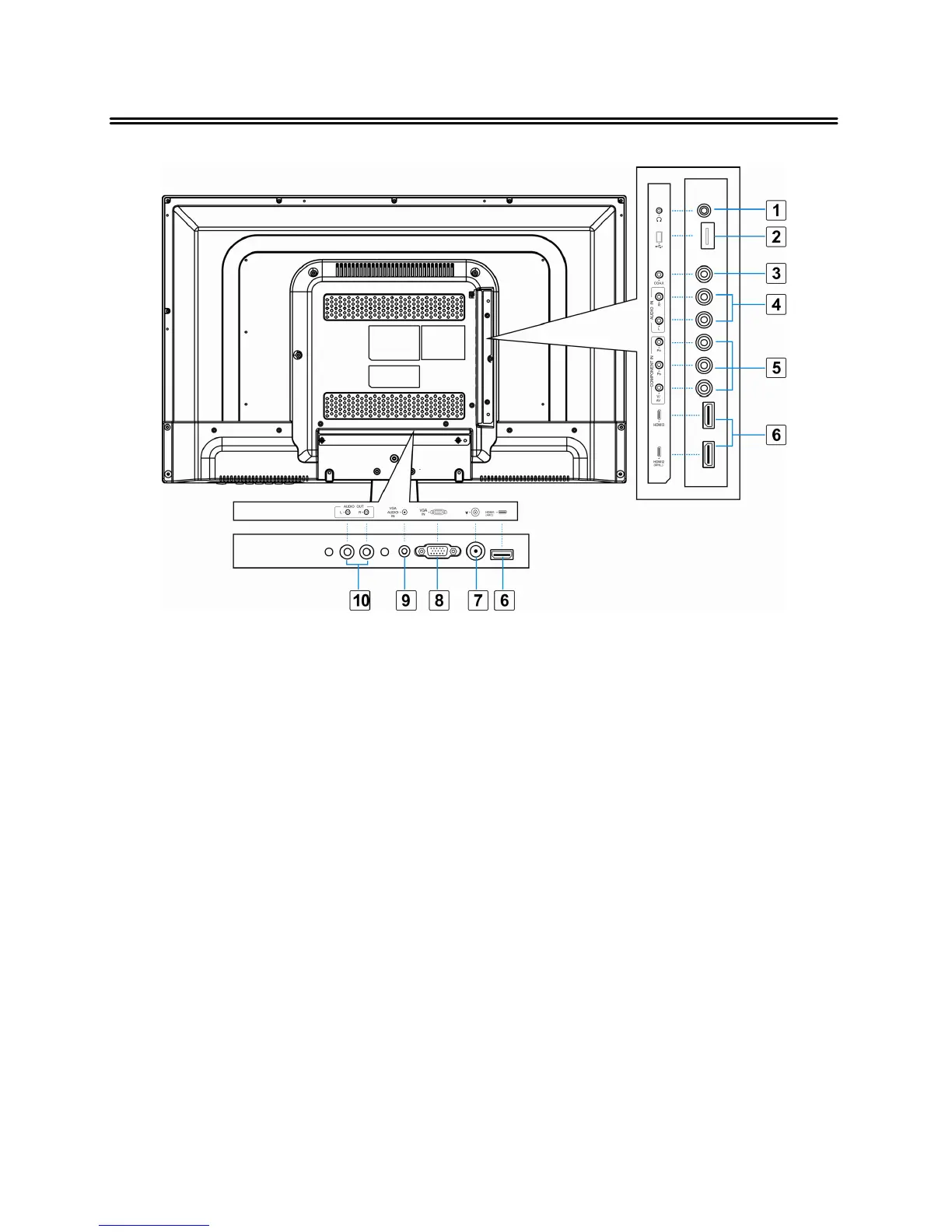

View of Unit
Rear Panel
1. Earphone Jack
When earphone is inserted, the
loudspeaker is switched off.
2. USB Port
Connect the USB device.
3. COAX Jack
Connect an optional Optical di
g
ital
cable (not included) throu
g
ha
compatible amp
/
receiver to en
j
o
y
superior audio sound.
4. AUDIO IN Jacks
Connectin
g
for COMPONENT or AV
audio si
g
nal input.
5. COMPONENT IN Jacks
Connectin
g
for the Y/P
B
/P
R
or the
AV input in COMPONENT or AV
mode.
6. HDMI1(ARC)、HDMI2(MHL)、
HDMI3 Input Jacks
Connectin
g
for HDMI si
g
nal.
7. RF INPUT Jack
Connect an antenna or cable
connection for television reception.
8. VGA IN Jack
Connected to the VGA output
j
ac
k
on a personal computer.
9. VGA AUDIO IN Jack
Connectin
g
for VGA audio si
g
nal
input.
10. AUDIO OUT Jack
Connect to audio receiver.
