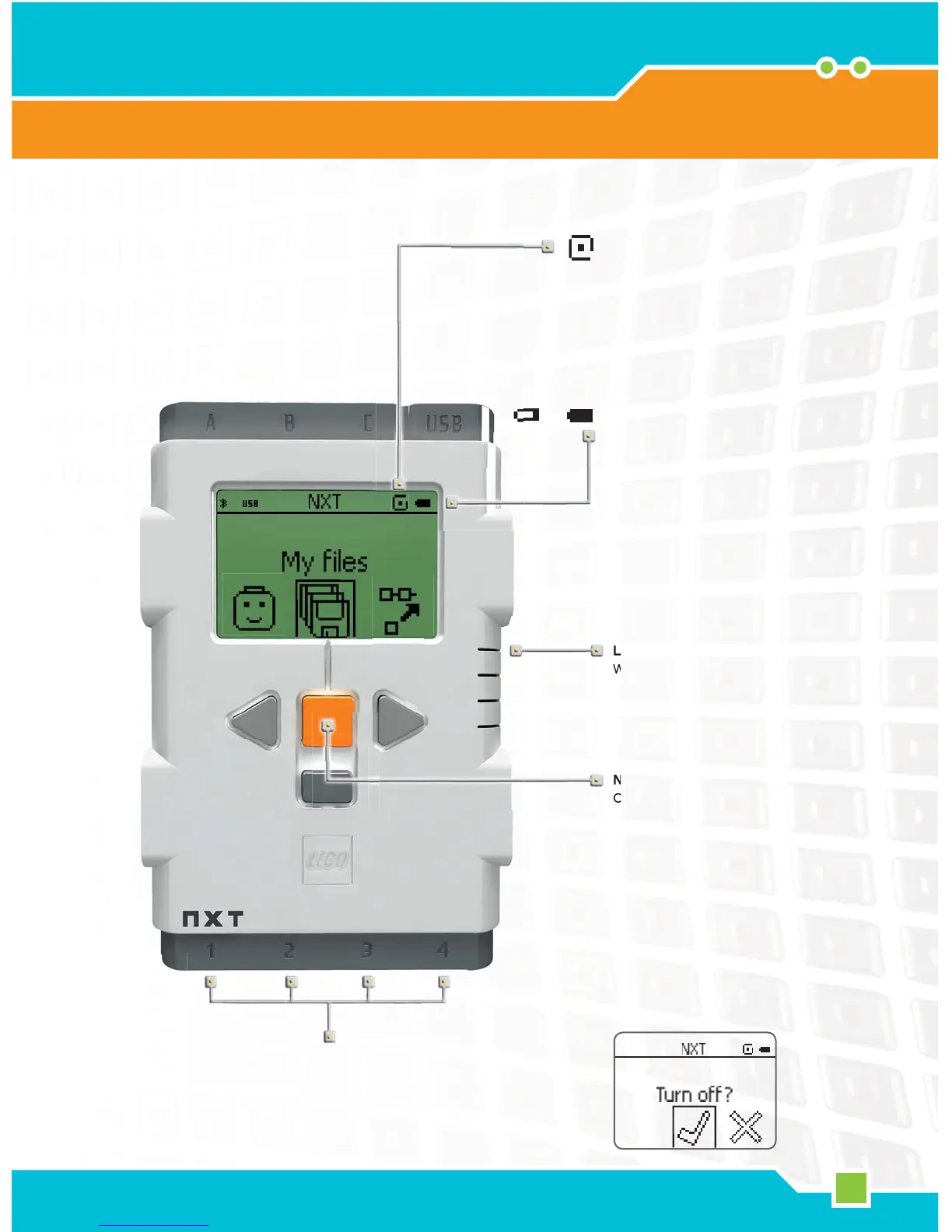

About The NXT Brick
Loudspeaker
When sounds are included in a
program, you can hear them through the
Loudspeaker.
Battery level
The battery icon displays the NXT power
level. When the battery power is low
(below about 10% capacity), the battery
icon fl ashes on and off.
Running icon
When the NXT is turned on, the running
icon spins. If the running icon stops
spinning, the NXT has frozen and
you must reset it. (See page 63 for
Troubleshooting steps).
Turning off your NXT
1. Press the Dark Gray button until you
see this screen.
2. Press the Orange button to turn off the
NXT. Press the Dark Gray button to go
back to the NXT main menu.
NXT buttons
Orange: On/Enter.
Light gray arrows: Navigation, left and right
Dark Gray: Clear/Go back.
12
Technology
Input ports
The NXT has four input ports for attaching
sensors. The sensors must be attached to
port 1, 2, 3, or 4.

LEGO MindStorms NXT Specifications

General

Processor	32-bit ARM7 microcontroller
Clock Speed	48 MHz
Memory	256 KB Flash, 64 KB RAM
Display	100x64 pixel LCD
Power	6 AA batteries or rechargeable battery pack
Sensors	Touch, Light, Sound, Ultrasonic
Motors	3 Interactive Servo Motors
Connectivity	Bluetooth, USB
Programming	NXT-G
Input Ports	4 sensor ports
Output Ports	3 motor ports
